EDWARDS SIGNALING EG1R-CVM Genesis Chime/Strobe, 2 3/4 x 27/32 x 4 1/2 Inch Size, 16 to 33VDC | AA9RQW 1EYA6

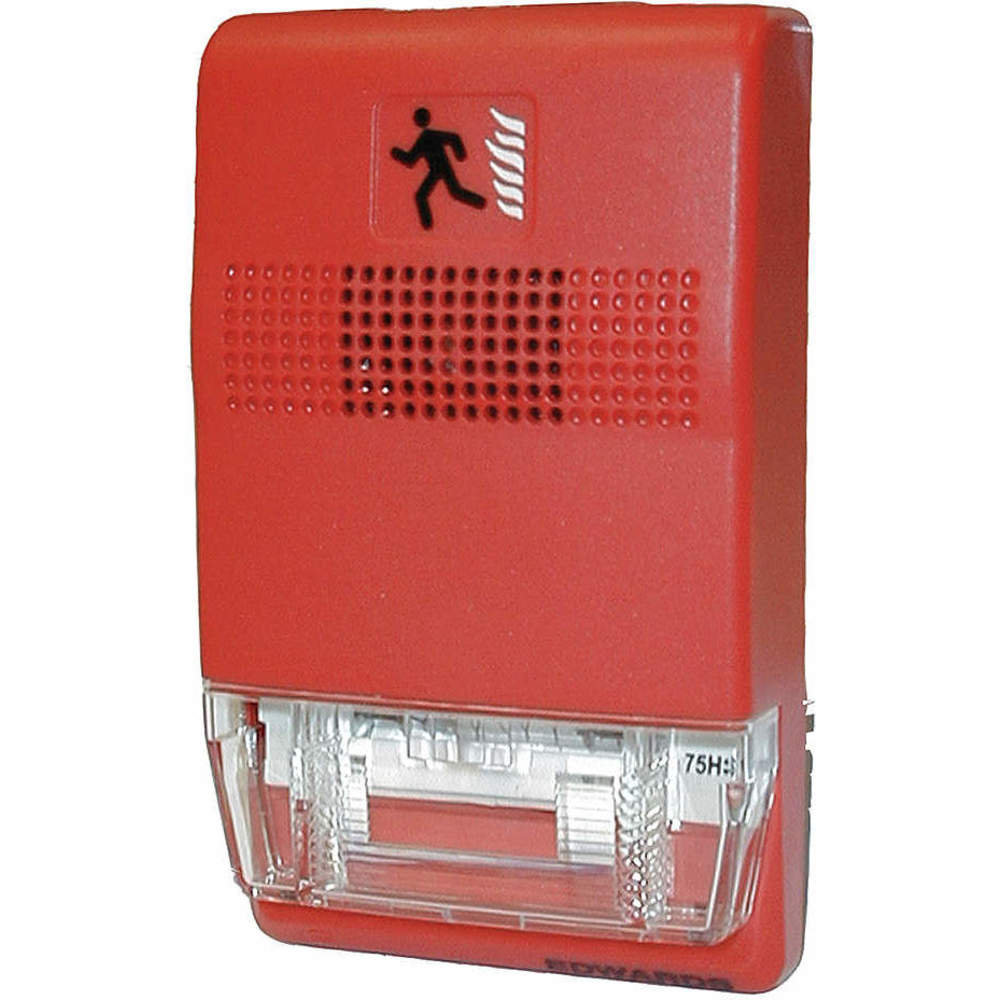

EDWARDS SIGNALING EG1R-CVM Genesis Chime/Strobe, 2 3/4 x 27/32 x 4 1/2 Inch Size, 16 to 33VDC

Item: AA9RQWModel: EG1R-CVMCross Ref: 1EYA6
In Stock

Get it by Tuesday, Jun 17

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€151.35 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemChime
Alarm Amps0.277A
ColorRed
Depth0.844"
FinishRed
Height4 1/2"
Length4 1/2"
Peak Output78.6 dBA
Voltage24V DC
Width2 3/4"
Alarm Volume @ 10 Ft - Maximum66 dB
Control ProtocolDirect Wire
Housing ColorRed
Housing MaterialPlastic
Lens ColorClear
Light Intensity15 cd, 30 cd, 75 cd, 110 cd
Light Operating ModeStrobe
Light SourceXenon
Mounting LocationWall Mount
Mounting StyleSurface Mount
Operating Voltage16-33V DC
Overall Depth27/32"
Overall Height4 1/2"
Overall Width2 3/4"
Power SourceWire
Product TypeChime and Strobe
Sound StyleTone

Shipping Info:

Ship weight (kg) 0.18
Ship height (cm)15.24
Ship length (cm)5.84
Ship width (cm)10.92
HS code8531800040
Country of OriginCN

Product Variants

ProductModelAlarm CurrentDepthFinishLengthVoltagePrice
EDWARDS SIGNALING EG1-CVM Genesis Chime/Strobe | AA8AKL 16X346 EG1-CVM99 to 277mA DC, 154 to 383mA FWR13/16"White2.75"24 VDC, FWR€175.91
EDWARDS SIGNALING EG1F-CVM Genesis Chime/Strobe | AA8AKM 16X347 EG1F-CVM99 to 277mA DC, 154 to 383mA FWR13/16"White2.75"24 VDC, FWR€200.10
EDWARDS SIGNALING EG1RF-CVM Genesis Chime/Strobe, 2 3/4 x 27/32 x 4 1/2 Inch Size, 24VDC | AA8AKN 16X348 EG1RF-CVM99 to 277mA DC, 154 to 383mA FWR13/16"Red2.75"24 VDC, FWR€200.10
