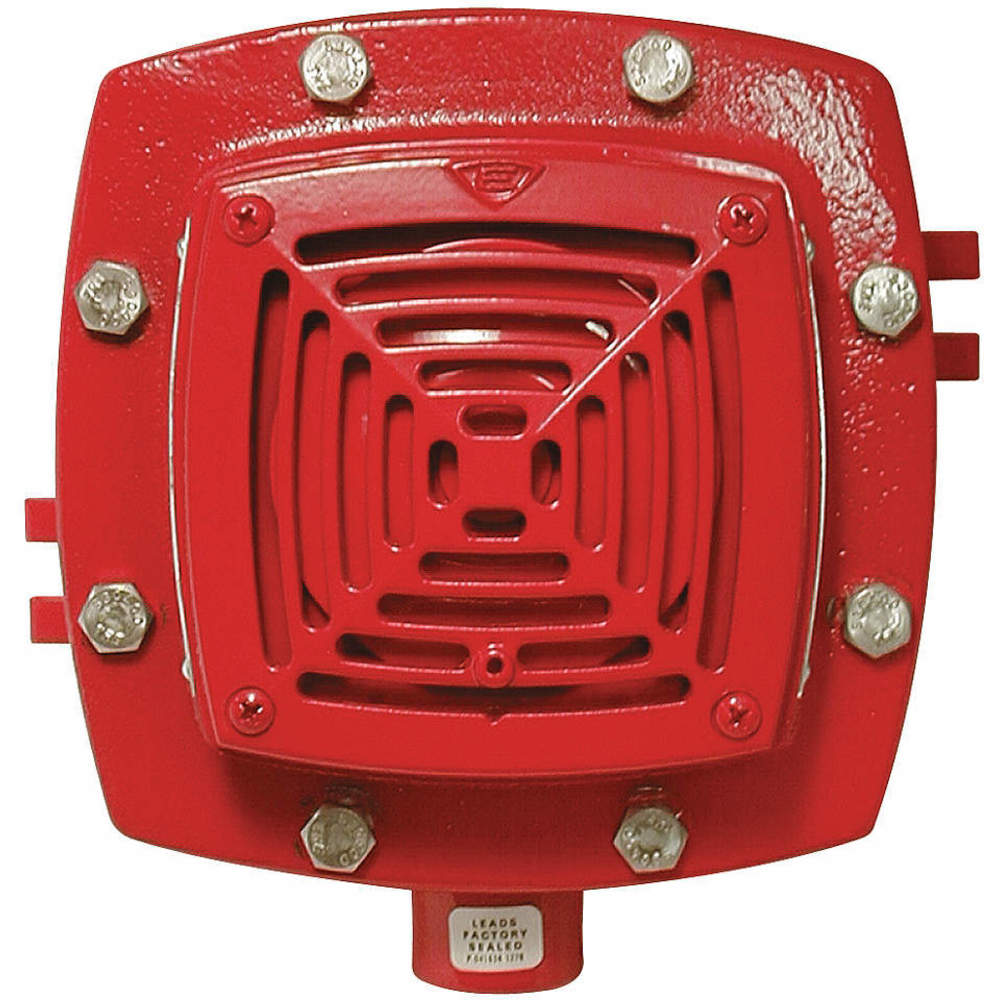

| Item | Vibrating Horn |
| Alarm Amps | 130 mA |
| Ambient Temp. Range | +32° to +100° |
| Amps | 0.165A |
| Depth | 4.188" |
| Finish | Red |
| Height | 6 1/2" |
| Length | 6 1/2" |
| Mounting | Surface |
| Peak Output (dba) | 100 dBA |
| Sound Level | 100 dB @ 10 ft. |
| Voltage | 120V AC |
| Alarm Volume @ 1 M - Maximum | 100 dB |
| Alarm Volume @ 10 Ft - Maximum | 90 dB |
| Color | Red |
| Connection Type | Wire Leads |
| Features | Diode Polarized, Low Current Drain, Red Corrosion Resistant Heat Flowed Epoxy Finish |
| For Hazardous Location | Class I, Division 1, Class I, Division 2, Class II, Division 1, Class II, Division 2 |
| Includes Mounting Hardware | Mounting Hardware Included |
| Mounting Location | Wall Mount |
| Mounting Style | Surface Mount |
| Nema Rating | NEMA 4 |
| Operating Current | 0.165A |
| Operating Temperature - Maximum | 100°F |
| Operating Temperature - Minimum | 25°F |
| Operating Voltage | 120V AC |
| Overall Depth | 4 3/16" |
| Overall Height | 7 5/8" |
| Overall Width | 7 3/8" |
| Power Source | AC Adapter, Wire |
| Product Type | Horn |
| Sound Principle | Vibrating |
| Sound Style | Horn |
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 27.31 |
| HS code | 8531800030 |
| Country of Origin | MX |
| Product | Model | Current Rating | Depth | Diameter | Voltage | Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|
 |
118-E1 | 0.07A | 1-11/64" | 2-1/32" | - | 12 VDC | - | RFQ
|
|
118-G1 | 0.03A | 1-11/64" | 2-1/32" | - | 24 VDC | - | RFQ
|
|
123A-E5 | 0.4A | 1-11/64" | 1-3/16" | - | 12 VAC at 60 Hz | - | RFQ
|
|
123A-G5 | 0.2A | 1-11/64" | 1-3/16" | - | 24 VAC at 60 Hz | - | RFQ
|
|
123A-N5 | - | 1-11/64" | 1-3/16" | - | 120 VAC at 50/60 Hz | - | RFQ
|
 |
880D-N5 | - | - | - | 120V | - | - | RFQ
|
 |
884D-N5 | - | - | - | 120V | - | - | RFQ
|
