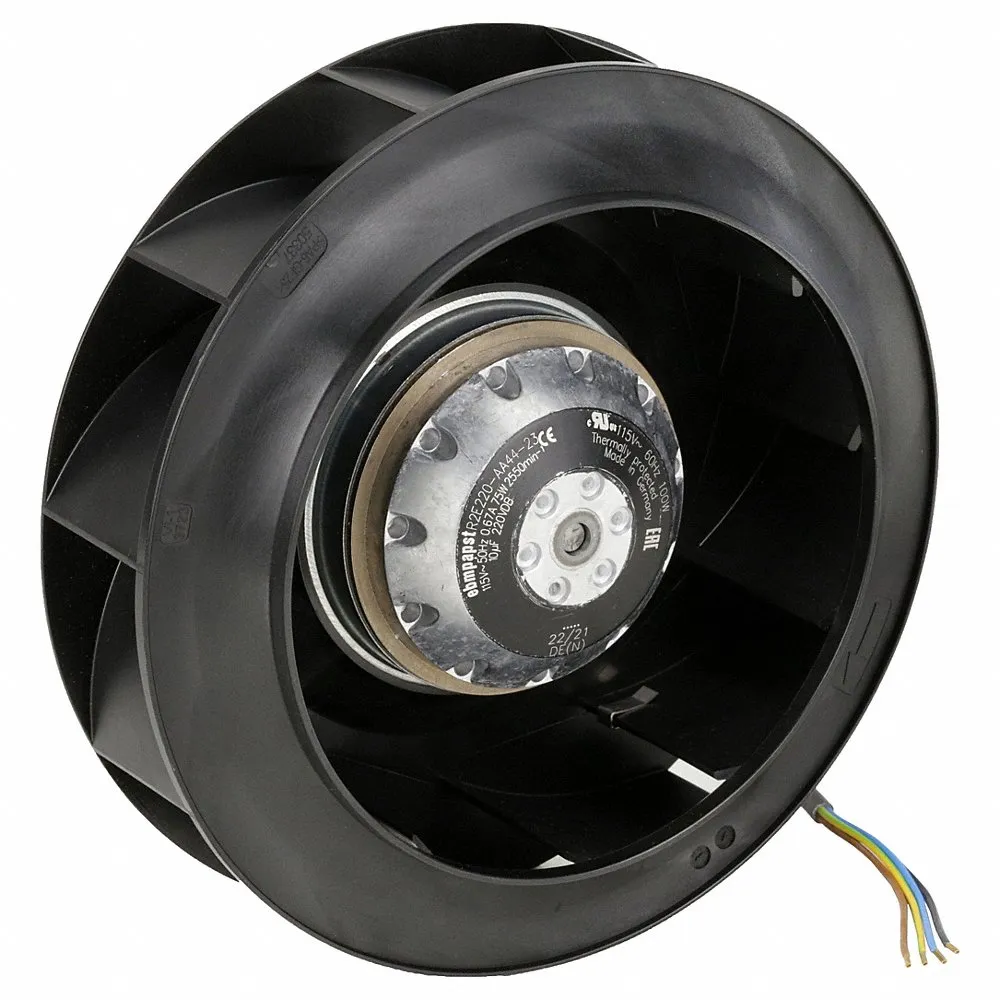

| Item | Motorized Impeller |
| Air Flow | 530 CFM |
| Airflow @ 0.000 In Sp | 530 CFM |
| Bearing Type | Ball |
| Bolt Circle Dia. | 2 1/4" |
| Connection Type | Wire Leads |
| Full Load Amps | 1.06A |
| Gross Weight | 4.125 lbs. |
| Impeller Material | Plastic |
| Max. Ambient Temp. | 60°C |
| Motor Type | Permanent Split Capacitor |
| Mounting Orientation | Universal |
| Nameplate Voltage | 115V AC |
| Noise Level | 74 dB |
| Nominal Height | 220 mm |
| Nominal Voltage | 120V AC |
| Nominal Width | 220 mm |
| Operating Voltage | 115V AC |
| Overall Dia. | 8 3/4" |
| Power Consumption | 100 W |
| Ships Factory Direct | No |
| Tachometer Output | No |
| Wattage | 100 W |
| Bolt Circle Diameter | 2 1/4" |
| Full Load Current | 1.06A |
| Maximum Ambient Operating Temperature | 60°C |
| Overall Diameter | 8 3/4" |
| Ship weight (kg) | 1.71 |
| Product | Model | Amps | Blade Material | Cfm @ 0.000-in. Sp | Dba | Depth | Item | Max. Ambient Temp. | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R1G310-AD19-52 | 3.75 | Aluminum | 1124 | 64 | 4.75" | Motorized Impeller | 113 Degrees F | Brushless DC | - | RFQ
|
 |
R2E190-AO26-25 | 0.35 | Fiberglass Reinforced Polyamide | 365 | 64 | 2.75" | Motorized Impeller | 131 Degrees F | Permanent Split Capacitor | €263.65 | |
 |
R4E280-AD12-15 | 1.1 | Galvanized Steel | 992 | 67 | 5" | Motorized Impeller | 104 Degrees F | Permanent Split Capacitor | - | RFQ
|
 |
R2E220-AA40-05 | - | - | - | - | - | Filter | - | - | - | RFQ
|
 |
96359-2-4013 | - | - | - | - | - | Nozzle | - | - | - | RFQ
|
 |
9609-2-4013 | - | - | - | - | - | Nozzle | - | - | - | RFQ
|
|
31051-2-4013 | - | - | - | - | - | Nozzle | - | - | - | RFQ
|
