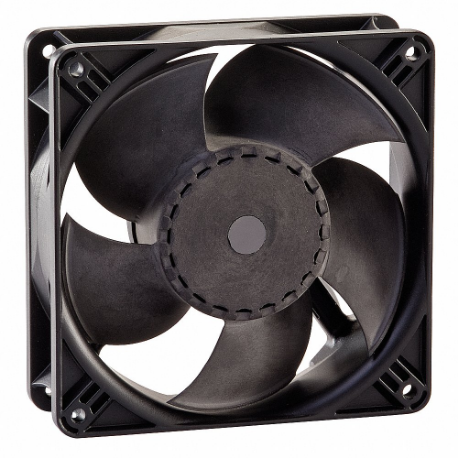

EBM-PAPST ACi4420HH Square Axial Fan, 4 11/16 Inch Height, 1 1/2 Inch Depth, 106, IP20, 230VAC, Terminals
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Axial Fan |
| Air Flow Rate | 106 CFM |
| Amps | 0.041A |
| Bearing Type | Ball |
| Blade Material | Fiberglass Reinforced Polyamide |
| Cfm @ 0.000-in. Sp | 106 CFM |
| Depth | 1 1/2" |
| Electrical Connection | Terminals |
| Environmental Applications | Equipment Cooling |
| Frequency | 50/60 Hz |
| Height | 4.688" |
| Housing Material | Fiberglass Reinforced Polyester |
| Impeller Material | Plastic |
| Max. Ambient Temp. | 167°F |
| Motor Insulation | Class E |
| Mounting Eye O.c. | 4 1/8" |
| Mounting Position | Universal |
| Noise Level | 42 dB |
| Power Consumption | 4.4 W |
| Requires | Cord Set |
| Shape | Square |
| Ships Factory Direct | No |
| Sound Level | 42 dBA |
| Thermal Protection | Electronic |
| Voltage | 230V AC |
| Wattage | 4.4 W |
| Width | 4.688" |
| Electrical Connection - Fans | Terminals |
| Fan Shape | Square |
| Hz | 50/60 Hz |
| Ip Rating | IP20 |
| Rpm | 3350 RPM |
| Standards | UL AND C-UL RECOGNIZED AND ROHS COMPLIANT |
| Watts | 4.4 W |
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 11.91 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 11.91 |
| Country of Origin | HU |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
624HH | Axial Fan | €84.15 | |
 |
W1G200-HH77-52 | Axial Fan | €783.24 | |
 |
4650N | Axial Fan | - | RFQ
|
|
55462.19490 | Axial Fan | - | RFQ
|
 |
4600N | Axial Fan | €108.93 | |
|
W2S130-AA25-01 | Axial Fan | - | RFQ
|
|
W2S130-AA03-01 | Axial Fan | - | RFQ
|
