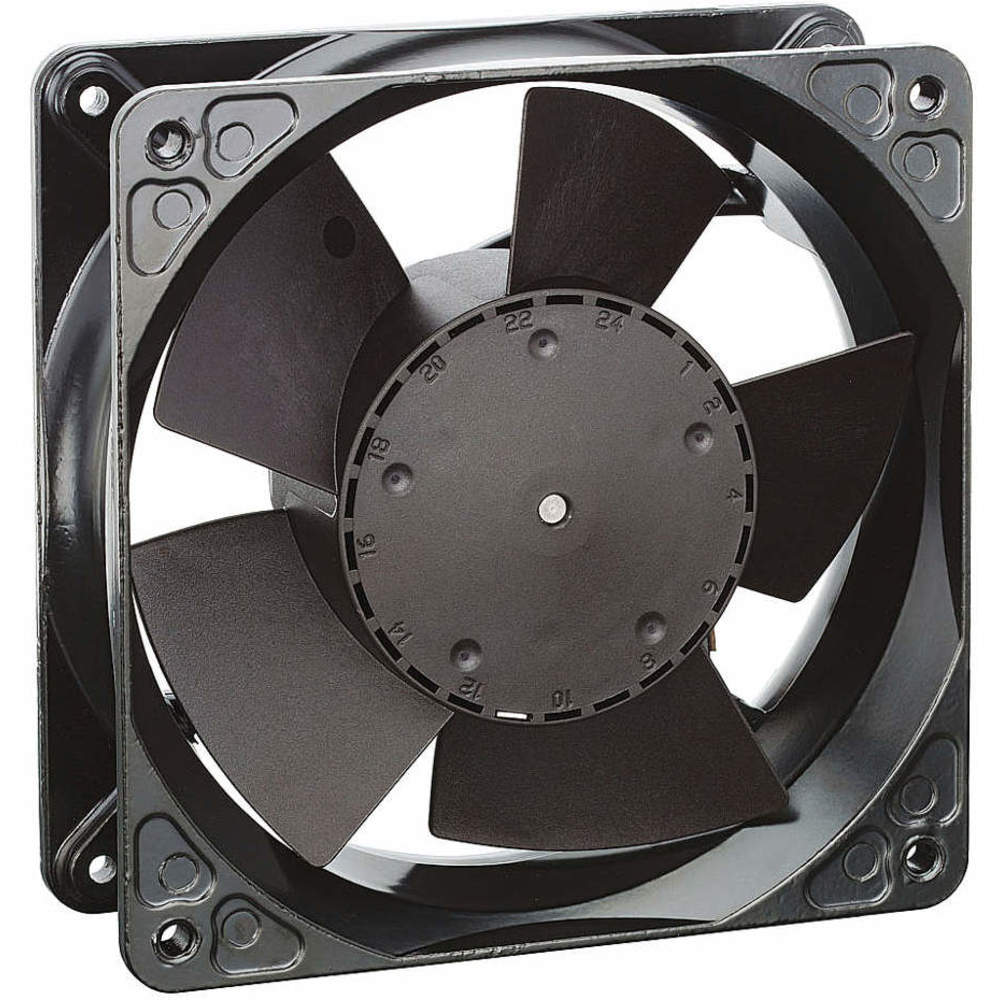

EBM-PAPST 4114NU Axial Fan 99 Cfm 24vdc 5.6w
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Axial Fan |
| Bearing Type | Ball |
| Blade Material | Plastic |
| Cfm @ 0.000-in. Sp | 99 CFM |
| Color | Black |
| Depth | 1 1/2" |
| Diameter | 5" |
| Environmental Applications | Equipment Cooling |
| Fan Voltage | 24V DC |
| Height | 4.688" |
| Housing Finish | Black Painted |
| Housing Material | Cast Aluminum |
| Max. Ambient Temp. | 167°F |
| Motor Insulation | Class E |
| Motor Type | DC |
| Mounting | Flange |
| Mounting Eye O.c. | 4 1/8" |
| Mounting Position | Horizontal/Vertical |
| Phase | 1 |
| Requires | Hardwire |
| Shape | Square |
| Thermal Protection | Impedance |
| Wattage | 5.6 W |
| Width | 4.688" |
| Electrical Connection - Fans | Lead Wires |
| Fan Shape | Square |
| Ip Rating | IP68 |
| Rpm | 3200 RPM |
| Sound Level | 49 |
| Standards | CCSAUS, CE, UL, VDE, IP68 |
| Voltage | 24V DC |
| Watts | 5.6 W |
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 8.57 |
| Ship length (cm) | 16.19 |
| Ship width (cm) | 16.19 |
| HS code | 8414599080 |
| Product | Model | Amps | Blade Material | Cfm @ 0.000-in. Sp | Dba | Depth | Electrical Connections | Fan Rpm | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
614 NHU | - | PA Plastic | 25.3 | 37 | 63/64" | 12.2" Leads | 5600 | 2 23/64" | - | RFQ
|
 |
6424U | - | PA Plastic | 229.5 | 55 | 2-1/64" | Terminals | 3400 | 6 49/64" | - | RFQ
|
 |
8314HU | - | PA Plastic | 47.1 | 48 | 1-17/64" | 12.2" Leads | 5000 | 3.156" | - | RFQ
|
 |
8412NU | - | PA Plastic | 38.25 | 32 | 63/64" | 12.2" Leads | 3100 | 3.156" | - | RFQ
|
 |
AC6200NMU-006 | 0.25 | Fiberglass Reinforced Polyamide | 206 | 50 | 2" | 17 1/2" Leads | 2850 | - | - | RFQ
|
 |
W1G130-AA25-01 | 0.19 | Fiberglass Reinforced Polyamide | 218 | 56 | 2-9/32" | 17.7" Leads | 3200 | 5 61/64" | €343.54 | |
 |
W2E208-BA20-51 | 0.39 | Sheet Steel | 544 | 70 | 3.125" | Terminals | 3100 | - | - | RFQ
|
