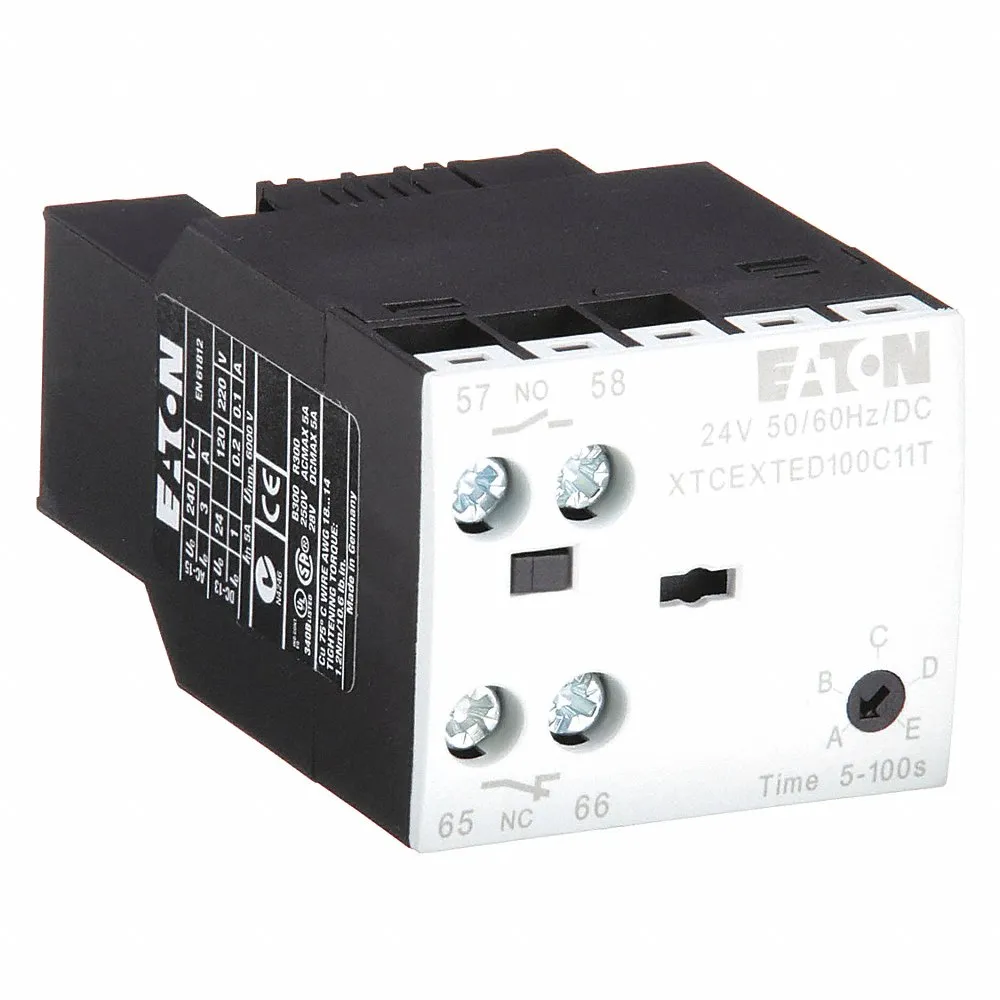

EATON XTCEXTED100C11T IEC Timer Module, Off Delay, 5 sec, 100 sec, 24 VAC/DC Coil
€261.41 /unit
Request a Quote
Payment
Payment
| Item | IEC Timer Module |
| Coil Voltage | 24V DC |
| Contact Form | 1 NO/1 NC |
| Contacts Normally Closed | 1 |
| Contacts Normally Open | 1 |
| Delay Type | Off Delay |
| Frame | B |
| Frame Size | B |
| Max. Contact Blocks (no.) | 1 |
| Max. Operating Temp. | 122°F |
| Max. Time Delay | 100 sec. |
| Min. Operating Temp. | -13°F |
| Min. Time Delay | 5 sec. |
| Mounting | Front |
| No. Of Normally Closed Contacts | 1 |
| Number Of Contacts | 2 |
| Number Of Normally Open Contacts | 1 |
| Range Of Time Delay | 5 sec. to 100 sec. |
| Series | XTRE, XTRE10B Series |
| Starter Mounting Location | Front |
| Time Delay | 100 sec. |
| Time Delay - Minimum | 5 sec. |
| Voltage Rating | 24V DC |
| Compatible With Series | XTRE, XTRE10B |
| Ip Rating | IP20 |
| Maximum Operating Temperature | 122°F |
| Maximum Voltage Rating | 24V AC/DC |
| Minimum Operating Temperature | -13°F |
| Time Delay - Maximum | 100 sec. |
| Ship weight (kg) | 0.09 |
| Country of Origin | DE |
| Model | Item | Price | |
|---|---|---|---|
| XTCEXTED1C11A | Timer Module | €390.18 | |
| XTCEXTED1C11B | Timer Module | €390.18 | |
| XTCEXTED100C11A | Timer Module | €356.12 | |
| XTCEXTED100C11B | Timer Module | €281.44 | |
| XTCEXTEEC11A | Timer Module | €366.64 | |
| XTCEXTEYC20A | Timer Module | €390.18 | |
| XTCEXTEYC20B | Timer Module | €390.18 |
