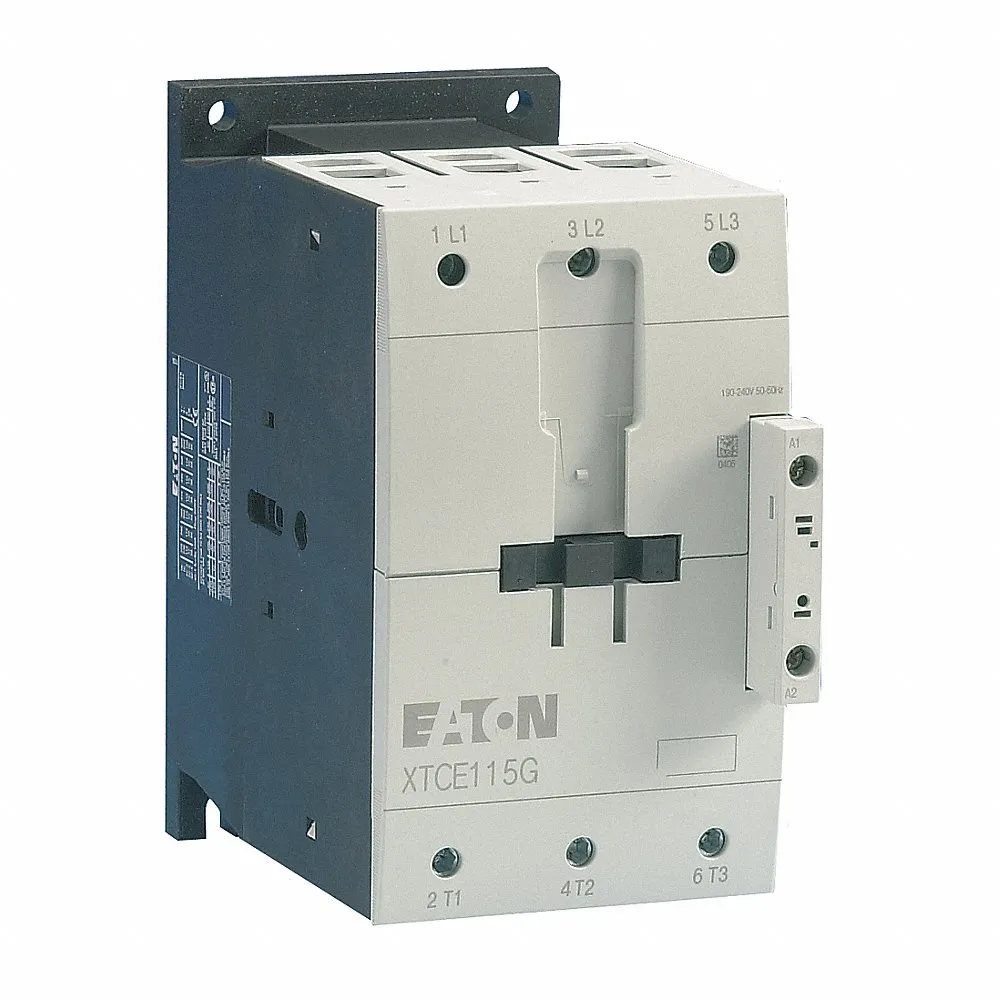

| Item | IEC Magnetic Contactor |
| Depth | 6.26" , 7 6/25" |
| Embedded Surge Suppressor | Yes |
| Enclosure Nema Rating | No Enclosure |
| Frame Size | G |
| Full Load Amps-inductive | 150A |
| Full Load Amps-resistive | 190A |
| Height | 12 4/5" , 3.54" |
| Horsepower @ Three Phase (600 Vac) | 125 hp |
| Horsepower @ Three Phase - 480v Ac | 125 hp |
| Hp @ 1 Phase - 120v | 10 hp |
| Hp @ 1 Phase - 240v | 30 hp |
| Hp @ 3 Phase - 208v | 40 hp |
| Hp @ 3 Phase - 240v | 60 hp |
| Hp @ 3 Phase - 480v | 125 hp |
| Hp @ 3 Phase - 575v | 125 hp |
| Includes Auxiliary Contacts | No |
| Mounting Hole Dia. | 0.27" |
| Mounting Hole Distance | 11.77" |
| Mounting Hole Distance - Width | 6.97" |
| Mounting Style | Din Rail, Panel |
| Nema Enclosure Material | Not Applicable |
| Number Of Auxillary Contacts | 0 |
| Number Of Poles | 3 |
| Reversible | No |
| Terminal Connection Type | Screw Terminals |
| Width | 3.54" , 7 18/25" |
| Auxiliary Contacts Included | None |
| Coil Voltage | 190/240V AC |
| Contactor Style | IEC |
| Electrical Operating Durability | 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie) |
| Frequency | 50/60 Hz |
| Full Load Current - Inductive | 150A |
| Full Load Current - Resistive | 190A |
| Horsepower @ Single Phase - 120v Ac | 10 hp |
| Horsepower @ Single Phase - 240v Ac | 30 hp |
| Horsepower @ Three Phase - 208v Ac | 40 hp |
| Horsepower @ Three Phase - 240v Ac | 60 hp |
| Horsepower @ Three Phase - 600v Ac | 125 hp |
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 122°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -13°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 240V AC |
| Overall Depth | 7.24" |
| Overall Height | 12 4/5" |
| Overall Width | 7.72" |
| Phase | Three |
| Reversing Capability | Non-Reversing |
| Series | XT Series |
| Standards | CE, CSA, EN/IEC 60947, ROHS, UL LISTED |
| Wire Termination Type | Screw |
| Ship weight (kg) | 2.34 |
| Ship height (cm) | 32.51 |
| Ship length (cm) | 18.39 |
| Ship width (cm) | 19.61 |
| Country of Origin | DE |
| Product | Model | Coil Volts | Depth | Full Load Amps-inductive | Full Load Amps-resistive | Height | Hp @ 1 Phase - 120v | Hp @ 1 Phase - 240v | Hp @ 3 Phase - 208v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XTCE115G00A | - | - | - | - | - | - | - | - | €1,094.68 | |
|
XTCE115G00B | - | - | - | - | - | - | - | - | €1,094.68 | |
|
XTCE115G00T | - | - | - | - | - | - | - | - | €1,094.68 | |
|
XTCE115G00TD | - | - | - | - | - | - | - | - | €1,298.58 | |
|
XTCE115G00C | - | - | - | - | - | - | - | - | €1,009.64 | |
 |
XTCR115G11A | - | - | - | - | - | - | - | - | €3,073.40 | |
 |
XTCF125G00A | - | - | - | - | - | - | - | - | €1,332.21 |
