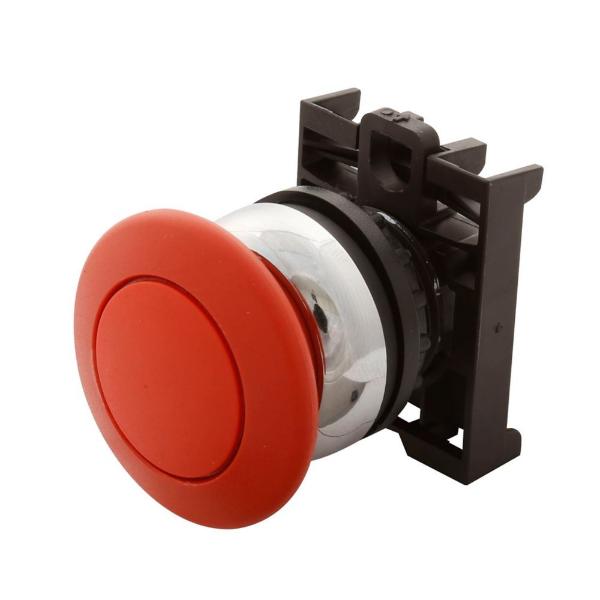

| Item | Pushbutton |
| Actuator Color | Red |
| Actuator Type | Mushroom |
| Bezel | Metal |
| Height | 1 1/2" |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Length | 7" |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Operating Mode | Momentary |
| Type | Pushbutton |
| Width | 5" |
| Action | Momentary |
| Bezel Material | Metal |
| Features | Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter |
| Head Material | Metal |
| Head/lens Color | Red |
| Manufacturer Warranty Length | 1 yr. |
| Mushroom Head Diameter | 40 mm |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 7" |
| Overall Height | 1 1/2" |
| Overall Width | 5" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Standards | BUREAU VERITAS, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED |
| Terminal Connection | Screw Clamp |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
M22-PVS | Emergency Stop | €135.48 | |
 |
M22-PVS45P | Emergency Stop | €165.01 | |
 |
M22-PV | Emergency Stop | €40.62 | |
 |
M22-PVT | Emergency Stop | €113.10 | |
 |
M22-PVT45P | Emergency Stop | €104.53 | |
 |
M22-PVT60P | Emergency Stop | €123.01 | |
 |
M22M-D-X-SWRGYB | Pushbutton | €42.41 |
