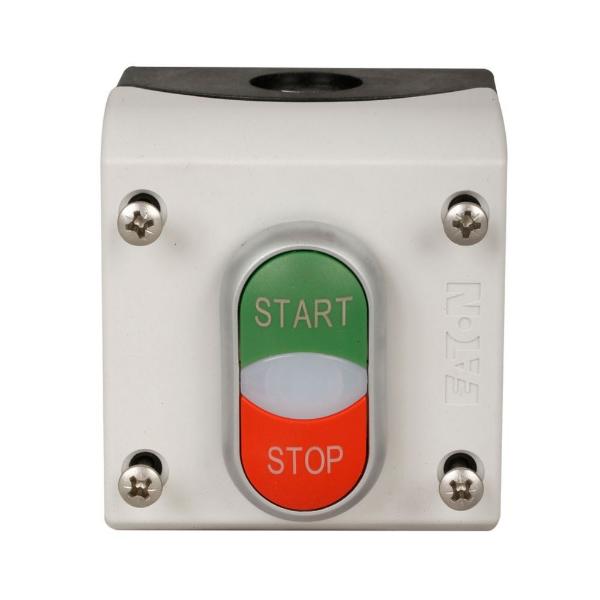

| Item | Push Button, Start/Stop |
| Actuator Function | Momentary |
| Actuator Type | Double Pushbutton |
| Base Color | Black |
| Button Color | Green, Red |
| Contact Configuration | NO |
| Enclosure Color | Gray |
| Etching Code | GB1, GB0 |
| Height | 2.7" |
| Illumination | Non-Illuminated |
| Ip Rating | IP66 |
| Legend | START STOP |
| Length | 2.83" |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | 25% Smaller Depth Than Most Competitor Enclosures. Imoact Resistant Polycarbonate Enclosure |
| Orientation | Horizontal |
| Type | One-element |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 3.15" |
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 7.19 |
| Ship width (cm) | 8 |
| Country of Origin | US |
