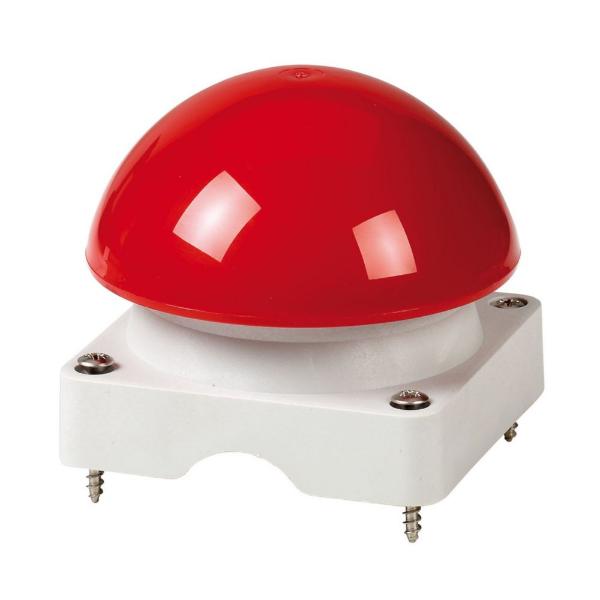

| Item | Pushbutton |
| Actuator Function | Momentary |
| Actuator Type | Mushroom head |
| Base Color | Black |
| Button Color | Red |
| Contact Configuration | 1 NC, 1 NO |
| Enclosure Color | Gray |
| Height | 4" |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Length | 3 3/4" |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | All NC Contact Blocks Are Positively Driven Contact |
| Operating Cycles | 1 Million |
| Type | Palm Switch |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 3 3/4" |
| Ac Contact Rating | 10A @ 600V |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 5 A @ 24 V |
| Enclosure Material | Plastic |
| Hub Style | Feed Thru |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Style | Surface |
| Number Of Operators | 1 |
| Number Of Pilot Lights | 0 |
| Number Of Speeds | 1 |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -13°F |
| Operator Action | Momentary |
| Operator Color | Red |
| Operator Configuration | Palm Switch |
| Operator Configuration Type | (1) Palm Switch |
| Operator Legend | No Legend |
| Operator Type | Palm Switch |
| Overall Depth | 3.75" |
| Overall Height | 4" |
| Overall Width | 3 3/4" |
| Panel Cutout Diameter | 22 mm |
| Product Type | Control Station |
| Push Button Type | Palm Switch |
| Resistance Properties | Corrosion Resistant, Shock Resistant, UV/Sunlight Resistant |
| Series | M22 Series |
| Standards | CE, CSA, CSA C22.2 NO.14-05, CSA C22.2 NO.94-91, CSA NO.012528, CSA NO.3211-03, IEC/EN 60947-5, IEC/EN 60947-5-1, UL 508, UL E29184, UL LISTED, UL NKCR, VDE 0660 |
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 9.53 |
| Country of Origin | US |
