| Item | Switch |
| Connection | Screw Terminal |
| Contact Configuration | Isolated Solid State Relay |
| Contact Rating | 0.2A at 135V AC/DC |
| Enclosure Material | Plastic |
| Led Indicator | None |
| Length | 2 1/4" |
| Max. Ac Current | 150A, 0.2A |
| Operating Temp. | -58°F to +122°F |
| Product Height | 3.53" |

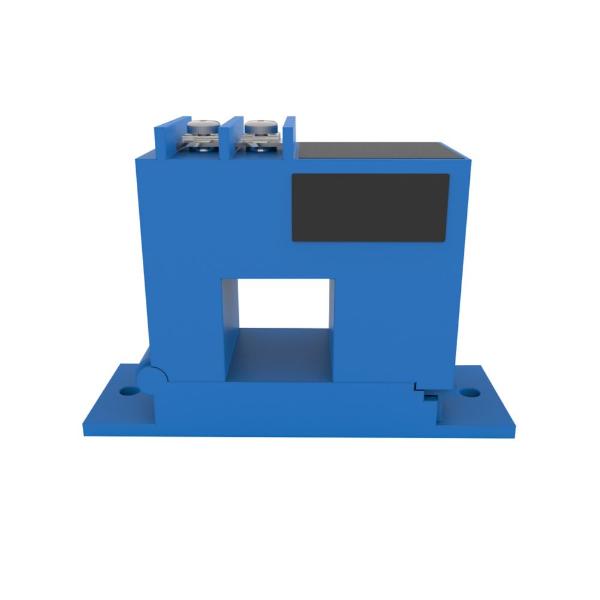

| Product Name | Eaton ECS Series CurrentWatch AC Current Switch |
| Product Width | 1.19" |
| Switch Type | Current Switch |
| Warranty | 1 yr. |
| Weight | 0.25 lbs. |
| Adjustment Method | Switch |
| Body Depth | 2.25" |
| Body Height | 3.53" |
| Body Width | 1.19" |
| Contact Form | SPST-NC |
| Contact Rating (ac) | 0.2A @ 135V |
| Contact Rating (dc) | 0.2A @ 135V |
| Core Type | Split |
| Current Rating | 150A |
| Electrical Connection Type | Screw |
| For Use With | Sensors |
| Frequency | 100 Hz |
| Housing Material | Plastic |
| Monitored Parameters | Overcurrent, Undercurrent |
| Number Of Pins/terminals | 2 |
| Overall Depth | 2.25" |
| Relay Mounting Style | Surface |
| Sensing Hole Diameter | 0.85" |
| Standards | ROHS COMPLIANT, UL LISTED |
| Status Indicator | No Indicator |
| Trip Delay | 0.12 sec. |
| Trip Point | 1.50A |
| Trip Point Type | Fixed |
| Wire Size | 14 AWG |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 8.97 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 3.02 |
| Country of Origin | US |
