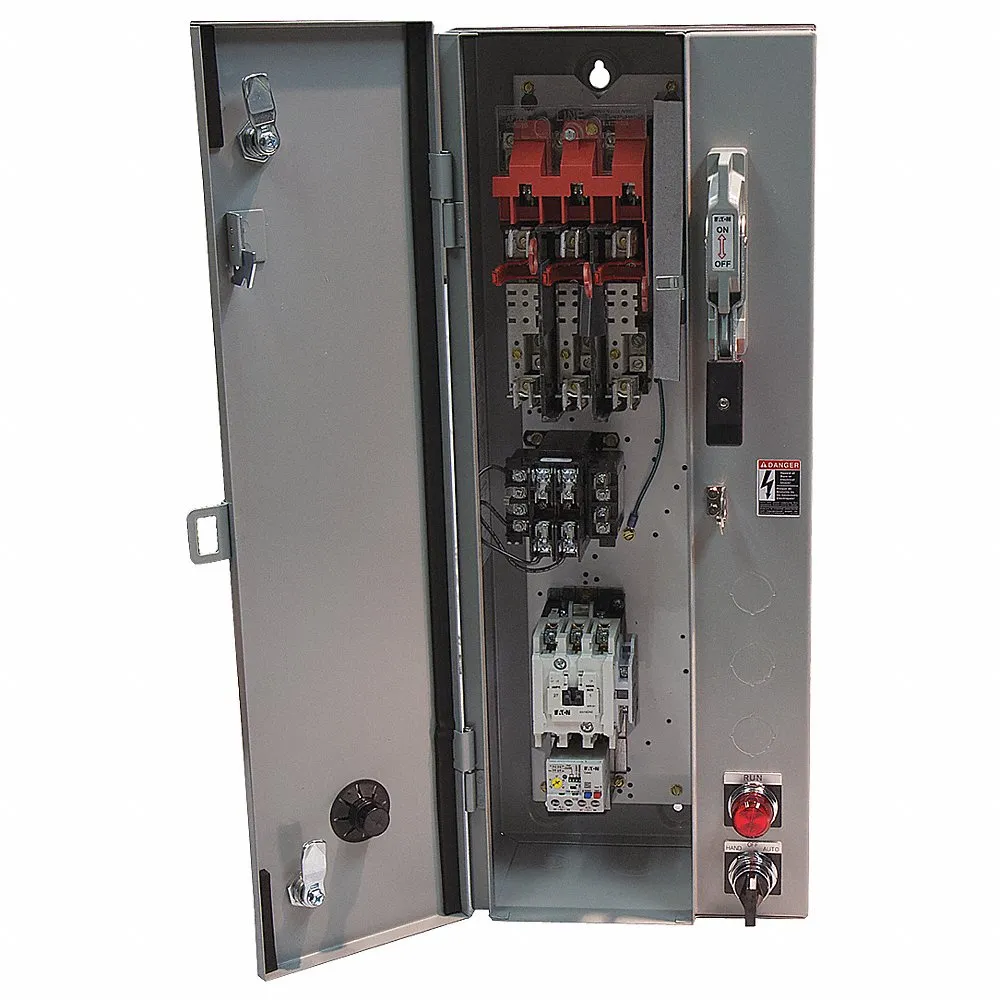

EATON ECN1811CJC-R63/C NEMA Combination Starter, Electronic, 440/460 VAC, Select Switch
Get it by Monday, Jun 16
€2,745.75 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | NEMA Fusible Combination Starter |
| Auxiliary Contact Module Capacity | 4 |
| Control Transformer | Yes |
| Fuse Clip Type | Class R |
| Horsepower @ Single Phase | Not Rated |
| Horsepower @ Single Phase - 120v Ac | Not Rated |
| Horsepower @ Three Phase - 208v Ac | 7 1/2 hp |
| Horsepower @ Three Phase - 600v Ac | 10 hp |
| Hp @ 3 Phase - 240v | 7 1/2 hp |
| Hp @ 3 Phase - 480v | 10 hp |
| Includes Auxiliary Contacts | Yes |
| Includes Control Transformer | Yes |
| Max. Overload Relay Amps Setting | 20A |
| Minimum Overload Relay Current Setting | 4A |
| Mounting Postion | Horizontal, Vertical |
| No. Of Auxillary Contacts | 1 |
| No. Of Terminals | 3 |
| Number Of Poles | 3 |
| Operator | Selector Switch |
| Overall Depth | 6.66" |
| Overall Height | 23.06" |
| Overall Width | 15 1/2" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Pilot Light | Red On |
| Resistance Properties | Impact Resistant, Tamper Resistant |
| Short Circuit Protection | Fusible Disconnect |
| Terminal Connection Type | Screw Terminals |
| Thermal Unit Code | Not Applicable |
| Auxiliary Contact Form | 1NO |
| Electrical Operating Durability | 100000 |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 240v Ac | Not Rated |
| Horsepower @ Three Phase - 240v Ac | 7 1/2 hp |
| Horsepower @ Three Phase - 480v Ac | 10 hp |
| Includes Pilot Light | Yes |
| Ip Rating | IP20 |
| Max Current (ac) | 27A |
| Maximum Overload Relay Current Setting | 20A |
| Maximum Voltage Rating | 600V AC |
| Mounting Style | Through Panel |
| Nema Enclosure Rating | 1 |
| Nema Size | 1 |
| Nominal Coil (secondary) Voltage | 120V AC |
| Nominal Control (primary) Voltage | 240/480V AC (Dual Rated) |
| Number Of Terminals | 3 |
| Operator Type | Hand/Off/Auto (Selector Switch) |
| Reversing Capability | Non-Reversing |
| Series | Freedom Series |
| Standards | ABS, CSA, OSHPD, UL LISTED |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10, Class 20, Class 30 |
| Ul Fuse Class | R |
| Wire Termination Type | Screw |
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 58.57 |
| Ship length (cm) | 16.92 |
| Ship width (cm) | 39.37 |
| Country of Origin | US |
| Model | Price | |
|---|---|---|
| ECN1801CCC-R63/B | €1,921.02 | |
| ECN1801CJC-R63/B | €2,652.07 | |
| ECN1801ECB-R63/B | €1,487.43 | |
| ECN1801EJB-R63/B | €1,921.02 | |
| ECN1802CCC-R63/B | €1,362.16 | |
| ECN1802CJC-R63/B | €3,028.68 | |
| ECN1802ECB-R63/B | €1,487.43 |
