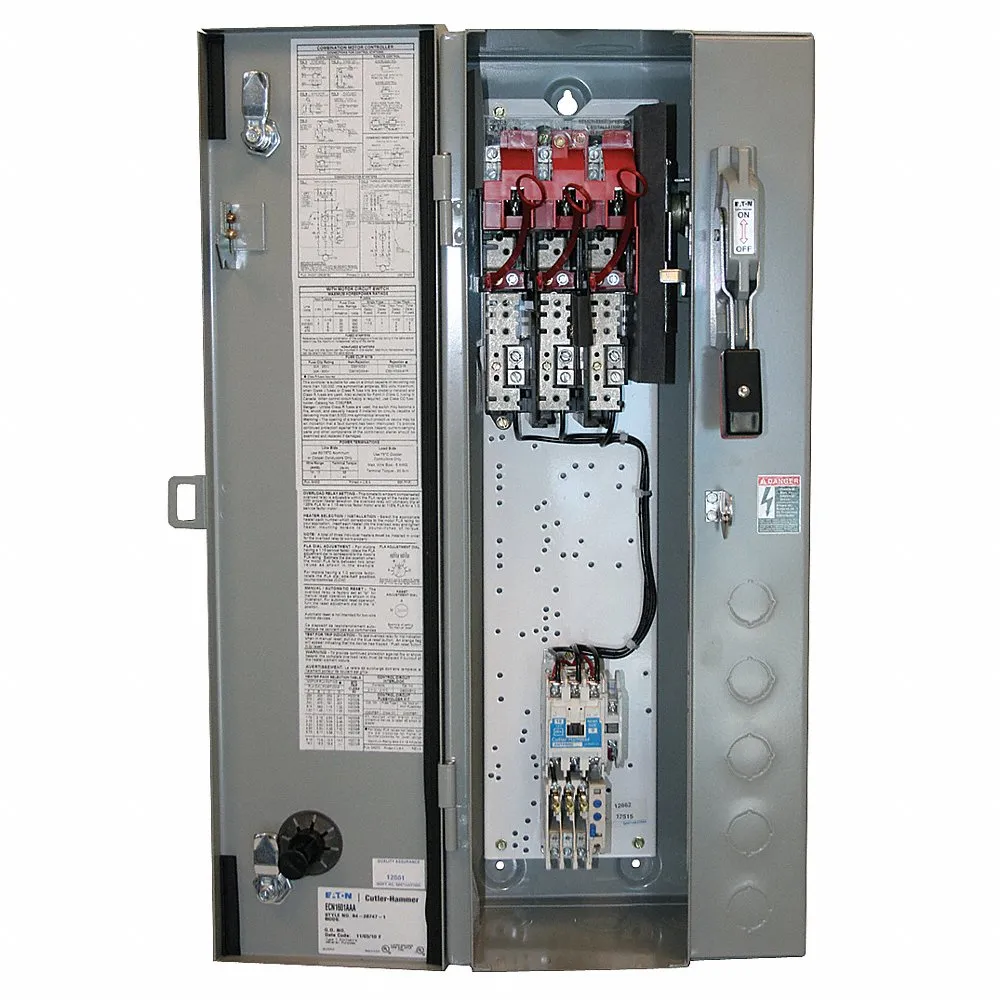

EATON ECN1612AAB-R63/D NEMA Combination Starter, Electronic, 110/120 VAC
Get it by Tuesday, Jun 17
€2,294.02 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | NEMA Fusible Combination Starter |
| Auxiliary Contact Module Capacity | 4 |
| Control Transformer | No |
| Control Transformer Voltage | Not Applicable |
| Horsepower @ Single Phase | Not Rated |
| Horsepower @ Single Phase - 120v Ac | Not Rated |
| Horsepower @ Three Phase - 208v Ac | 7 1/2 hp |
| Horsepower @ Three Phase - 600v Ac | 10 hp |
| Hp @ 3 Phase - 240v | 7 1/2 hp |
| Hp @ 3 Phase - 480v | 10 hp |
| Includes Auxiliary Contacts | Yes |
| Includes Control Transformer | No |
| Max. Overload Relay Amps Setting | 45A |
| Minimum Overload Relay Current Setting | 9A |
| Mounting Postion | Horizontal, Vertical |
| No. Of Auxillary Contacts | 1 |
| No. Of Terminals | 3 |
| Number Of Poles | 3 |
| Operator | No |
| Overall Depth | 30.7" |
| Overall Height | 11.1" |
| Overall Width | 12 1/5" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Pilot Light | No |
| Resistance Properties | Impact Resistant, Tamper Resistant |
| Short Circuit Protection | Circuit Breaker |
| Terminal Connection Type | Screw Terminals |
| Thermal Unit Code | Not Applicable |
| Auxiliary Contact Form | 1NO |
| Electrical Operating Durability | 100000 |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 240v Ac | Not Rated |
| Horsepower @ Three Phase - 240v Ac | 7 1/2 hp |
| Horsepower @ Three Phase - 480v Ac | 10 hp |
| Includes Pilot Light | No |
| Ip Rating | IP20 |
| Max Current (ac) | 27A |
| Maximum Overload Relay Current Setting | 45A |
| Maximum Voltage Rating | 600V AC |
| Mounting Style | Through Panel |
| Nema Enclosure Rating | 3R |
| Nema Size | 1 |
| Nominal Coil (secondary) Voltage | 120V AC |
| Number Of Terminals | 3 |
| Operator Type | No Operator |
| Reversing Capability | Non-Reversing |
| Series | Freedom Series |
| Standards | UL E1491 |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10, Class 20, Class 30 |
| Ul Fuse Class | R |
| Wire Termination Type | Screw |
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 28.19 |
| Ship length (cm) | 77.98 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
| Model | Price | |
|---|---|---|
| ECN1612AAB-R63/C | €2,294.02 | |
| ECN1602AAB-R63/B | €2,646.89 | |
| ECN1602BAB-R63/B | - | RFQ
|
| ECN1602DAC-R63/B | - | RFQ
|
| ECN1602EAB-R63/B | - | RFQ
|
| ECN1612BAB-R63/C | - | RFQ
|
| ECN1612CAC-R63/D | - | RFQ
|
