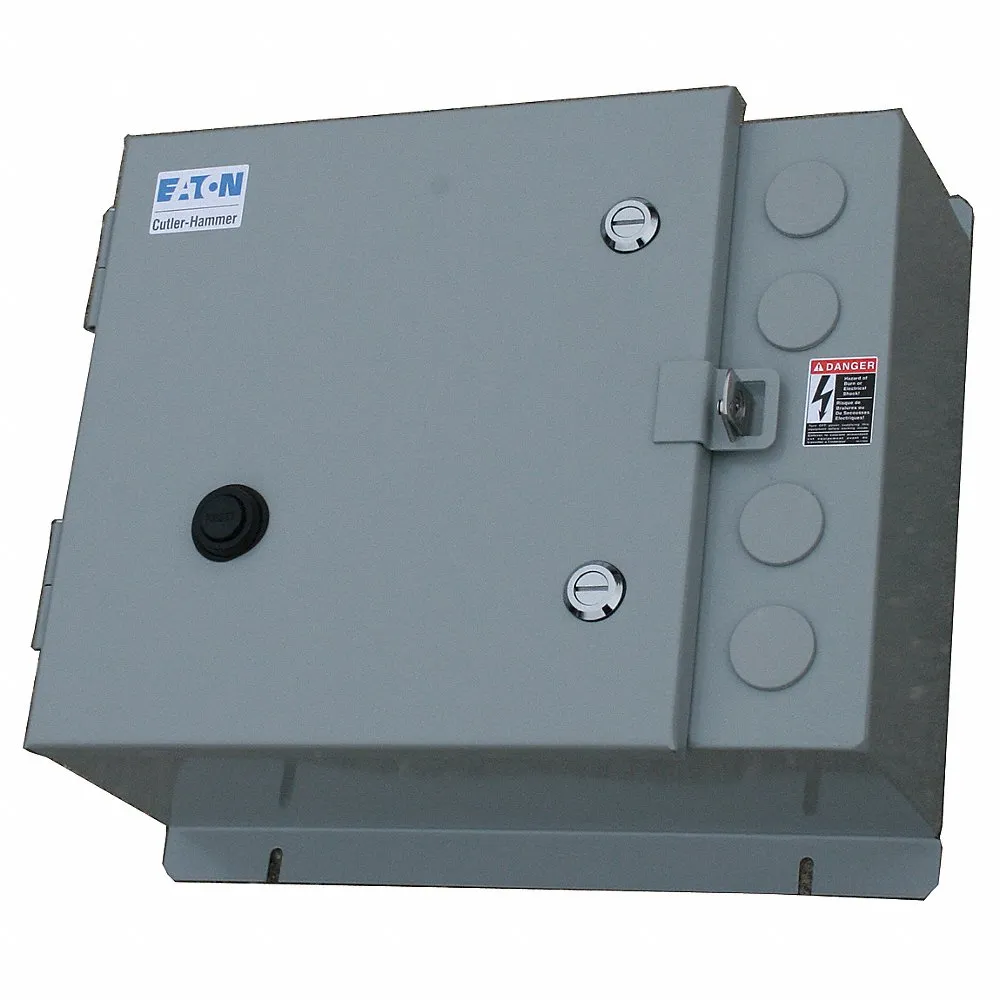

EATON ECN0532CAA-R63/E NEMA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 3, 90 A, 480 VAC Coil
Get it by Tuesday, Jun 17
€3,052.47 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Magnetic Motor Starter |
| Action | Nonreversing |
| Auxiliary Contact Module Capacity | 4 |
| Depth | 8.47" |
| Features | Solid State Overload Relay |
| Height | 29.1" |
| Horsepower @ Single Phase - 120v Ac | 7 1/2 hp |
| Horsepower @ Single Phase - 240v Ac | 15 hp |
| Horsepower @ Three Phase - 208v Ac | 25 hp |
| Horsepower @ Three Phase - 600v Ac | 50 hp |
| Hp @ 1 Phase - 120v | 7 1/2 hp |
| Hp @ 3 Phase - 208v | 25 hp |
| Hp @ 3 Phase - 240v | 30 hp |
| Hp @ 3 Phase - 480v | 50 hp |
| Hp @ 3 Phase - 575v | 50 hp |
| Includes | Solid State Overload Relay |
| Includes Auxiliary Contacts | Yes |
| Max. Overload Relay Amps Setting | 100A |
| Minimum Overload Relay Current Setting | 20A |
| Mounting Style | Surface |
| Number Of Auxillary Contacts | 2 |
| Number Of Poles | 3 |
| Overall Depth | 31" |
| Overall Height | 11" |
| Overall Width | 16" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Thermal Unit Code | Not Applicable |
| Width | 14 1/4" |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 480V AC |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 240v Ac | 30 hp |
| Horsepower @ Three Phase - 480v Ac | 50 hp |
| Max Current (ac) | 90A |
| Maximum Overload Relay Current Setting | 100A |
| Maximum Voltage Rating | 600V AC |
| Nema Enclosure Rating | 3R |
| Nema Size | 3 |
| Nominal Coil Voltage @ 60hz | 480V AC |
| Reversing Capability | Non-Reversing |
| Series | Freedom Series |
| Standards | UL E1491 |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | 10A/10/20/30 |
| Ship weight (kg) | 21.53 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 78.74 |
| Ship width (cm) | 40.64 |
| Country of Origin | US |
| Product | Model | Coil Volts | Hz | Nema Rating | Price | |
|---|---|---|---|---|---|---|
|
ECN0532AAA-R63/E | - | - | - | €3,052.47 | |
|
ECN0542AAA-R63/F | - | - | - | €7,952.10 | |
 |
ECN0532TAA-R63/E | - | - | - | - | RFQ
|
 |
ECN0542CAA-R63/F | 480V AC | 50/60 Hz | 3R | - | RFQ
|
|
ECN0542EAA-R63/F | 208V AC | 60 Hz | 3R | €7,952.10 | |
|
ECN0542TAA-R63/F | - | - | - | €7,952.10 | |
 |
ECN0544AAA-R63/F | 120V AC | 50/60 Hz | 4X | €9,709.28 |
