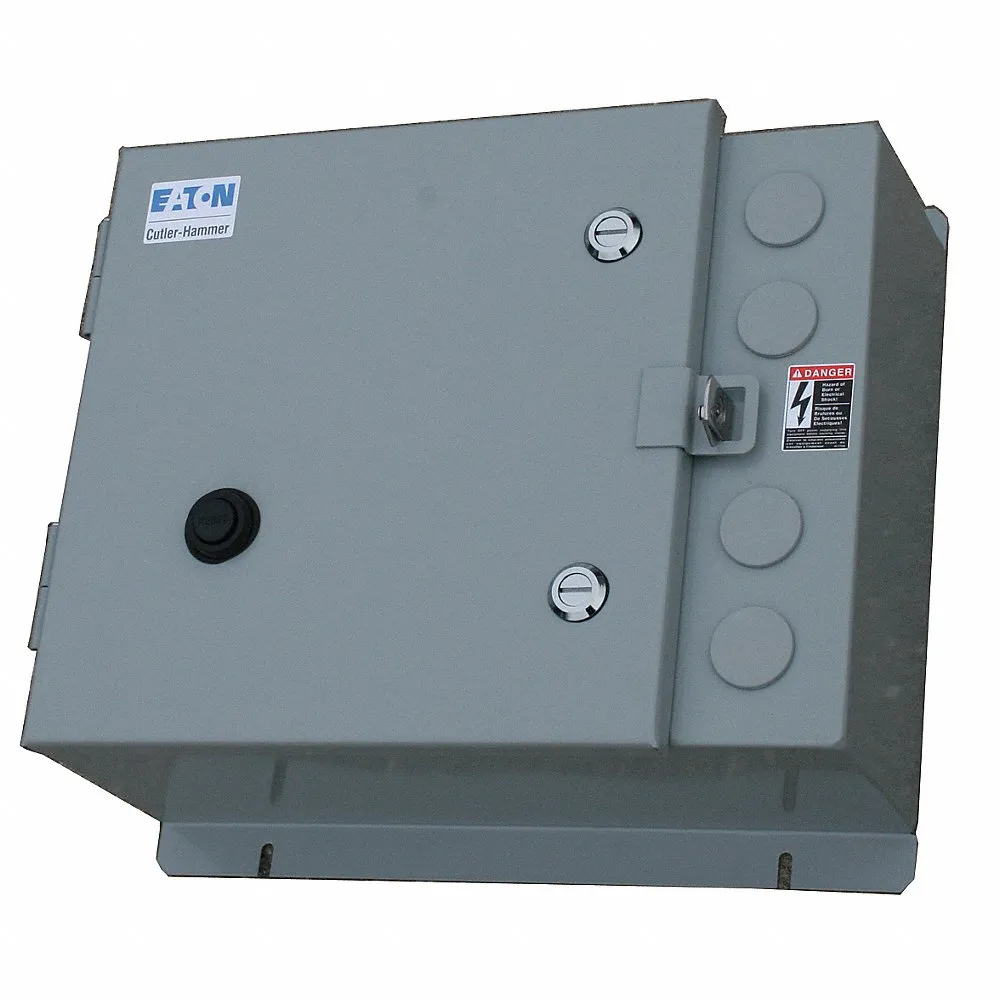

EATON ECN0531EAA-R63/E NEMA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 3, 90 A, 208 VAC Coil
Get it by Tuesday, Jun 17
€2,571.37 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Magnetic Motor Starter |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 208V AC |
| Frequency | 60 Hz |
| Horsepower @ Single Phase - 120v Ac | 7 1/2 hp |
| Horsepower @ Single Phase - 240v Ac | 15 hp |
| Horsepower @ Three Phase - 208v Ac | 25 hp |
| Horsepower @ Three Phase - 240v Ac | 30 hp |
| Horsepower @ Three Phase - 480v Ac | 50 hp |
| Horsepower @ Three Phase - 600v Ac | 50 hp |
| Includes Auxiliary Contacts | Yes |
| Max Current (ac) | 90A |
| Maximum Overload Relay Current Setting | 100A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 20A |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Nema Size | 3 |
| Nominal Coil Voltage @ 60hz | 208V AC |
| Number Of Poles | 3 |
| Overall Depth | 26.5" |
| Overall Height | 11" |
| Overall Width | 14 1/5" |
| Overload Protection Type | Electronic |
| Phase | Three |
| Reversing Capability | Non-Reversing |
| Series | Freedom Series |
| Standards | UL E1491 |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | 10A/10/20/30 |
| Ship weight (kg) | 19.27 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 67.31 |
| Ship width (cm) | 36.07 |
| Country of Origin | US |
| Model | Price | |
|---|---|---|
| ECN0501AAA-R63/B | €884.21 | |
| ECN0521EAA-R63/D | €1,740.70 | |
| ECN0511BAA-R63/C | €1,202.20 | |
| ECN0511EAA-R63/C | €1,060.77 | |
| ECN0501AAA-R63/C | €956.32 | |
| ECN0521BAA-R63/D | €1,740.70 | |
| ECN0511AAA-R63/C | €1,202.20 |
