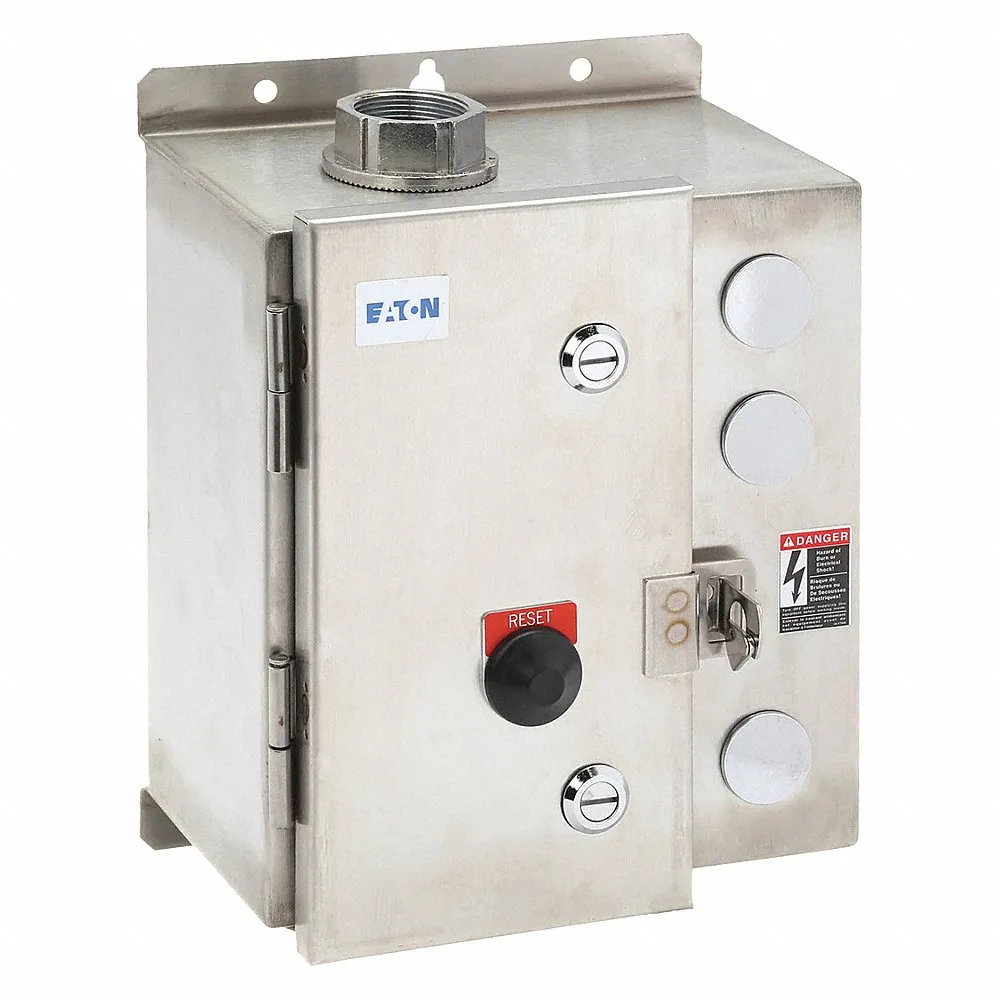

| Item | Magnetic Motor Starter |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 220/240V AC |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Single Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 208v Ac | 7 1/2 hp |
| Horsepower @ Three Phase - 240v Ac | 7 1/2 hp |
| Horsepower @ Three Phase - 480v Ac | 10 hp |
| Horsepower @ Three Phase - 600v Ac | 10 hp |
| Includes Auxiliary Contacts | Yes |
| Max Current (ac) | 27A |
| Maximum Overload Relay Current Setting | 20A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 4A |
| Mounting Style | Surface |
| Nema Enclosure Rating | 4X |
| Nema Size | 1 |
| Nominal Coil Voltage @ 60hz | 240V AC |
| Number Of Poles | 3 |
| Overall Depth | 15.1" |
| Overall Height | 9.7" |
| Overall Width | 11 1/2" |
| Overload Protection Type | Electronic |
| Phase | Three |
| Reversing Capability | Non-Reversing |
| Series | Freedom Series |
| Standards | UL E1491 |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | 10A/10/20/30 |
| Ship weight (kg) | 8.8 |
| Ship height (cm) | 24.64 |
| Ship length (cm) | 38.35 |
| Ship width (cm) | 29.21 |
| Country of Origin | US |
| Product | Model | Amps Ac | Coil Volts | Depth | Height | Hp @ 1 Phase - 120v | Hp @ 1 Phase - 230v | Hp @ 3 Phase - 208v | Hp @ 3 Phase - 240v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ECN0514AAA-R63/D | - | - | - | - | - | - | - | - | €1,660.18 | |
 |
ECN0504AAA-R63/C | 18A | 120V AC | 6.7" | 13.31" | 1 hp | 2 hp | 3 hp | 3 hp | €1,570.00 | |
 |
ECN0504BAA-R63/B | 18A | 240V AC | 6.7" | 13.31" | 1 hp | 2 hp | 3 hp | 3 hp | €1,528.59 | |
|
ECN0504EAA-R63/C | 18A | 208V AC | 6.7" | 13.31" | 1 hp | 2 hp | 3 hp | 3 hp | €1,570.00 | |
|
ECN0504EAA-R63/B | 18A | 208V AC | 6.7" | 13.31" | 1 hp | 2 hp | 3 hp | 3 hp | €1,528.59 | |
|
ECN0514AAA-R63/C | - | - | - | - | - | - | - | - | €1,660.18 | |
|
ECN0514CAA-R63/D | 27A | 480V AC | 6.7" | 13.31" | 2 hp | 3 hp | 7 1/2 hp | 7 1/2 hp | €1,660.18 |
