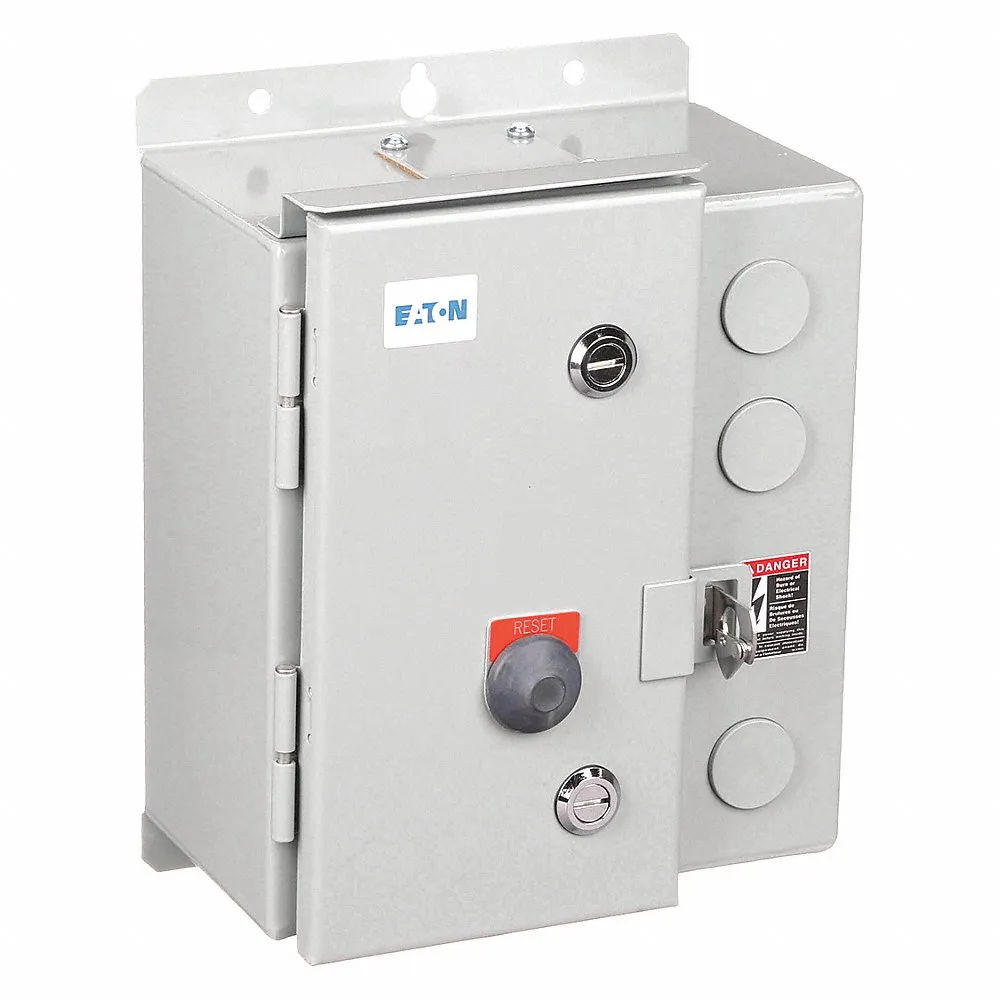

EATON ECN0502AAA-R63/B Magnetic Motor Starter, 1 to 5A, 120V AC, 3 HP At 3 Phase
Get it by Monday, Jun 16
€1,055.76 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Magnetic Motor Starter |
| Action | Nonreversing |
| Auxiliary Contact Module Capacity | 4 |
| Depth | 6.7" |
| Features | Solid State Overload Relay |
| Height | 13.31" |
| Horsepower @ Single Phase - 120v Ac | 1 hp |
| Horsepower @ Single Phase - 240v Ac | 2 hp |
| Horsepower @ Three Phase - 208v Ac | 3 hp |
| Horsepower @ Three Phase - 600v Ac | 5 hp |
| Hp @ 1 Phase - 120v | 1 hp |
| Hp @ 3 Phase - 208v | 3 hp |
| Hp @ 3 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 480v | 5 hp |
| Hp @ 3 Phase - 575v | 5 hp |
| Includes | Solid State Overload Relay |
| Includes Auxiliary Contacts | Yes |
| Max. Overload Relay Amps Setting | 5A |
| Minimum Overload Relay Current Setting | 1A |
| Mounting Style | Surface |
| Number Of Auxillary Contacts | 2 |
| Number Of Poles | 3 |
| Overall Depth | 26 1/2" |
| Overall Height | 11" |
| Overall Width | 14 1/5" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Thermal Unit Code | Not Applicable |
| Width | 9 21/25" |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 110/120V AC |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 480v Ac | 5 hp |
| Max Current (ac) | 18A |
| Maximum Overload Relay Current Setting | 5A |
| Maximum Voltage Rating | 600V AC |
| Nema Enclosure Rating | 3R |
| Nema Size | 0 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Reversing Capability | Non-Reversing |
| Series | Freedom Series |
| Standards | UL E1491 |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | 10A/10/20/30 |
| Ship weight (kg) | 7.24 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 67.31 |
| Ship width (cm) | 36.07 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
ECN0512BAA-R63/D | €1,322.47 | |
 |
ECN0512BAA-R63/C | - | RFQ
|
|
ECN0502CAA-R63/B | €1,055.76 | |
|
ECN0502CAA-R63/C | €1,228.33 | |
|
ECN0512AAA-R63/C | €1,153.77 | |
|
ECN0502EAA-R63/B | €1,055.76 | |
|
ECN0512EAA-R63/D | €1,322.47 |
