| Item | Photoelectric Sensor |
| Cable Sheath Material | PVC |
| Connection | 4-pin M12 Connector |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 100 MA at 30V DC |
| Enclosure Lens Material | Polycarbonate |
| Enclosure Material | Cycoloy |
| Height | 1.29" |
| Input Voltage | 10-30V DC |
| Ip Rating | IP68, IP69K |
| Led Indicator | Power On, Green |
| Length | 2.17" |
| Max. Operating Temp. | 131°F |
| Maximum Dc Current | 100 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Notes | For Complete System, Order 1 Source And 1 Detector |
| Operating Mode | Thru Beam |
| Operating Temperature - Min | -13°F |

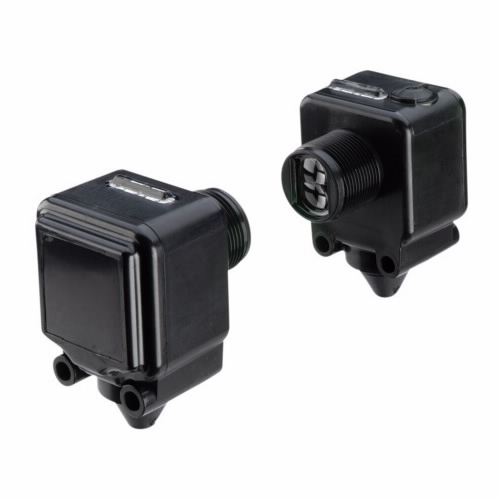

| Product Name | Eaton E65 SM Compact Photoelectric Sensor |
| Sensor Type | Through Beam |
| Switch Type | Photoelectric |
| Type | Photoelectric Sensor SM Series |
| Warranty | 3 yrs. |
| Weight | 0.0688 lbs. |
| Width | 1.47" |
| Body Material | Resin |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Emitted Sensor Light | Laser |
| Features | Overload Protection, Reverse Polarity Protection, Short Circuit Protection |
| Includes Indicator Lights | Indicator Lights Included |
| Load Current - Maximum | 100 mA |
| Number Of Pins | 4 |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | NPN And PNP |
| Output Circuit Type | NPN And PNP |
| Overall Depth | 55 mm |
| Overall Diameter | 18 mm |
| Overall Height | 33 mm |
| Overall Width | 37 mm |
| Response Time | 1 ms |
| Sensing Distance - Maximum | 15m |
| Sensing Distance - Minimum | 30 mm |
| Sensing Method | Through Beam |
| Sensor Body Style | Rectangular |
| Sensor Diameter | 18 mm |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Light On |
| Series | E65 SM Series |
| Standards | CE, CUL, UL LISTED |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | DC-Only |
| Switching Frequency | 500 Hz |
| Through Beam Sensor Component | Photoelectric Sensor Receiver |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 3.28 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 3.73 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
E65-SMPP050-HL5 | €269.58 | |
 |
E65-SMSDS0110 | €182.81 | |
 |
E65-SMTD15-HDD | €147.14 | |
 |
E65-SMTD15-HL | €124.47 | |
|
E65-SMTS15-HA | €161.65 | |
|
E65-SMTS15-HAD | €167.15 | |
 |
E65-SMPRS9050 | - | RFQ
|
