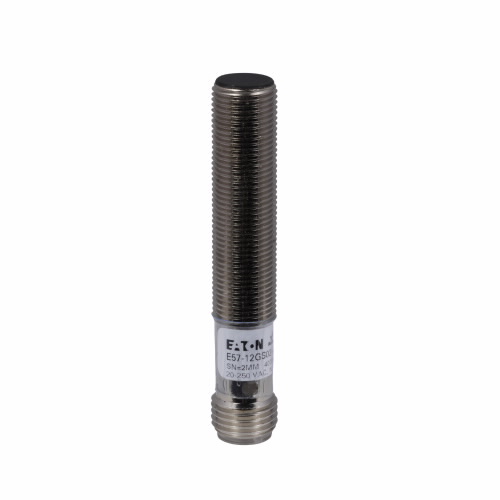

EATON E57-12GS02-AAB Inductive Global Proximity Sensor, 2 Mm Range, Straight, 12 Mm, Shielded, 2-Wire, 3 Pin
Get it by Tuesday, Jun 17
€235.45 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Proximity Sensor |
| Accuracy | Less Than 1% |
| Actuator Function | Shielded |
| Connection | Dual Key Micro |
| Contact Configuration | 2-wire AC, NO |
| Contact Rating | 200 mA at 250V |
| Enclosure Material | Brass |
| Input Voltage | 20-250V |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output On |
| Length | 2 17/25" |
| Max. Ac Current | 200 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Number Of Pins | 3 |
| Number Of Wires | 2 |
| Product Height | 0.47" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.47" |
| Type | Inductive Global Proximity Sensor |
| Warranty | 1 yr. |
| Weight | 0.2 lbs. |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.19 |
| Ship length (cm) | 6.81 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
E57-30PAS10-CY1 | €280.78 | |
 |
E57-12GE10-C1 | €231.03 | |
|
E57-12GE10-C1DB | €253.70 | |
 |
E57-12GE10-G | €215.57 | |
|
E57-12GE10-G1 | €231.03 | |
|
E57-12GE10-G1DB | €253.70 | |
 |
E57-12GS02-C1 | €170.08 |
