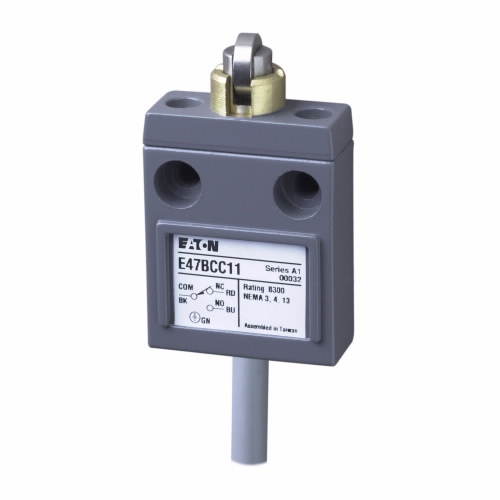

EATON E47BCC11 Compact Pre-Wired Limit Switch, 240 VAC, 14 VDC, 5A, SPDT Contact
Get it by Tuesday, Jun 17
€248.84 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Limit Switch |
| Cable Length | 120 ft. |
| Cable Type | PVC |
| Connection | 10 ft (3 m) cable |
| Contact Configuration | SPDT |
| Contact Rating | 5A At 240V AC/5A At 14V DC |
| Enclosure Material | Die Cast Aluminum |
| Height | 2 16/25" |
| Ip Rating | IP67 |
| Length | 1.58" |
| Max. Ac Amps | 5A |
| Max. Dc Amps | 5A |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | 14°F |
| Nema Enclosure Rating | NEMA 13, NEMA 4, NEMA 6 |
| Switch Type | Cross roller plunger |
| Type | E47 |
| Warranty | 1 yr. |
| Weight | 0.825 lbs. |
| Width | 0.69" |
| Ship weight (kg) | 0.37 |
| Ship height (cm) | 6.71 |
| Ship length (cm) | 4.01 |
| Ship width (cm) | 1.75 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
E47BCC15 | €312.20 | |
 |
E47BCC07 | €252.08 | |
 |
E47BCC06 | €257.90 | |
 |
E47BCC08 | €222.30 | |
 |
E47BCC15Y2 | €336.94 | |
|
E47BCC12P4 | €244.13 | |
|
E47BLS06Y1 | €225.08 |
