| Item | Variable |
| Adjustable Acceleration Time | 0.1 sec. to 3000 sec. |
| Adjustable Deceleration Time | 0.1 sec. to 3000 sec. |
| Application | HVAC AC Drive |
| Brake Chopper Included | No |
| Bypass Included | Yes |
| Color | White |
| Control Type | Keypad |
| Digital Readout | Continuous Output Current , Continuous Output Current, Frequency Resolution, Initial Output Current, Output Frequency, Output Voltage, Overload Current |
| Display Type | LCD |
| Dynamic Braking | Yes |
| Enclosure | Open |
| Enclosure Rating | IP21 |
| Enclosure Type | Open |
| Ethernet Port Included | No |
| Input Frequency | 50/60 Hz |
| Input Phase | 3 |
| Input Phase Ac | 3 |
| Input Type | Analog, Digital |
| Input Voltage | 380-500V AC |
| Max. Output Amps | 87A |
| Maximum Output Power | 60 hp |
| No. Of Inputs | 10 |
| No. Of Output | 6 |
| Output Frequency | 0-400 Hz |
| Output Phase | 3 |
| Output Phase Ac | 3 |
| Output Power | 60 hp |
| Output Type | Analog, Digital |
| Output Voltage | 380-500V AC |
| Overall Depth | 24 3/4" |
| Overall Height | 11 5/8" |
| Overall Width | 9 3/8" |

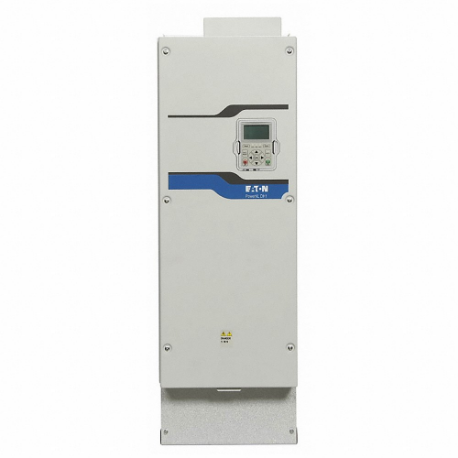

| Series | POWERXL DH1 Series |
| Start/stop Control | Automatic, Manual, Via Communication |
| Style | HVAC Compact AC Drive |
| Torque Application | Constant Torque, Variable Torque |
| With Bypass / No Bypass | With Bypass |
| With Line Contactor / No Line Contactor | No Line Contactor |
| Control Method | Keypad |
| Form Factor | 0.01 Hz Resolution |
| Input Voltage Range | 380-500V AC |
| Maximum Output Current | 87A |
| Number Of Inputs | 8 Digital Inputs, 2 Analog Inputs |
| Number Of Outputs | (3) Relay Out, (1) Digital Out, (2) Analog Out |
| Output Frequency Range | 0 Hz to 400 Hz (Standard) |
| Output Voltage Range | 380-500V AC |
| Protection | DC Bus Overvoltage, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Underload, Overcurrent, Overvoltage, Short-Circuit Protection of 24 V Reference Voltage, Surge, Undervoltage, Unit Overtemperature |
| Standards | C-TICK COMPLIANT, CE CERTIFIED, CUL LISTED, EN 62061, EN ISO 13849-1, GOST-R, IEC 61508, ROHS COMPLIANT, UL LISTED, UL LISTED 508C |
