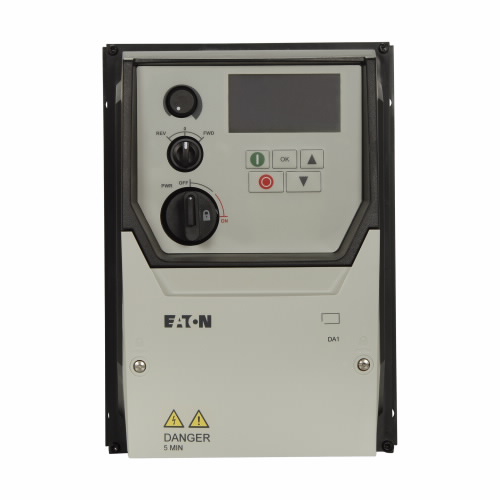

EATON DA1-349D5FB-B6SC Frequency Drive, 400 V, 9.5A, 7-1/2 Hp, 7.1 Inch Width X 9.42 Inch Depth
Get it by Tuesday, Jun 17
€3,727.17 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Variable Frequency Drive |
| Amperage Rating | 9.5A |
| Brake Chopper | Internal Brake Chopper |
| Depth | 9.42" |
| Enclosure Type | IP66 With Disconnect |
| Frame Size | FR2 |
| Height | 10 3/25" |
| Hp | 7 1/2 hp |
| Ip Rating | IP66 |
| Nema Enclosure Rating | NEMA 4 |
| Notes | 200-240V 3.0 HP 10.5A RFI Conformal Coated See Unit Nameplate For More Detailed Approvals. |
| Number Of Inputs | 5 |
| Number Of Output | 2 |
| Phase | 3 |
| Protection Filtering | Internal RFI Filter |
| Type | VF Drive |
| User Interface | RS-485 |
| Voltage Rating | 480V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First.Plus 5 Years On Capacitor Cells. |
| Width | 7.1" |
| Ship weight (kg) | 5.31 |
| Ship height (cm) | 25.7 |
| Ship length (cm) | 23.93 |
| Ship width (cm) | 18.03 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
DA1-35012NB-A66C | €5,839.46 | |
 |
DA1-35012NB-B6SC | €5,398.03 | |
|
DA1-35017NB-B6SC | €5,892.47 | |
 |
DA1-352D1NB-A66C | - | RFQ
|
|
DA1-352D1NB-B6SC | - | RFQ
|
|
DA1-353D1NB-A66C | €3,338.03 | |
|
DA1-353D1NB-B6SC | €3,471.46 |
