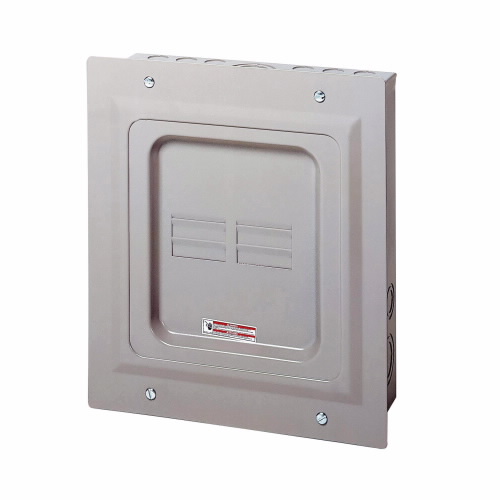

EATON CH4L125FP Lug Loadcenter, 120/240 VAC, 125A, 8P, 25 kA Interrupt
Get it by Tuesday, Jun 17
€82.92 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Load Center |
| Amps Rating | 125A |
| Bus Material | Copper |
| Enclosure Material | Metallic |
| Feed Type | Top/Bottom |
| Height | 3.69" |
| Interrupt Rating | 25 kAIC |
| Length | 13" |
| Mounting | Flush |
| Notes | Ground Bar Kits Priced Separately. Suitable For Use As Service Equipment When Not More Than Two Service Disconnecting Mains Are Provided Or When Not Used As A Lighting And Appliance Panelboard. |
| Number Of Circuits | 2 |
| Number Of Poles | 8 |
| Number Of Spaces | 4 |
| Number Of Wires | 3 |
| Special Features | Standard |
| Type | Main Lug Only |
| Voltage Rating | 120/240V |
| Warranty | Limited Lifetime |
| Width | 11" |
| Wire Size | #14 AWG to 1/0 AWG |
| Ship weight (kg) | 5.58 |
| Ship height (cm) | 9.37 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 27.94 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
CH12L125B | €127.69 | |
 |
CH24L125C | €196.20 | |
|
CH24L125C1N | €259.80 | |
 |
CH32L150D | €243.30 | |
 |
CH6L3125RP | €197.25 | |
 |
CH12L3125R | €341.19 | |
 |
CH18L3125R | €433.76 |
