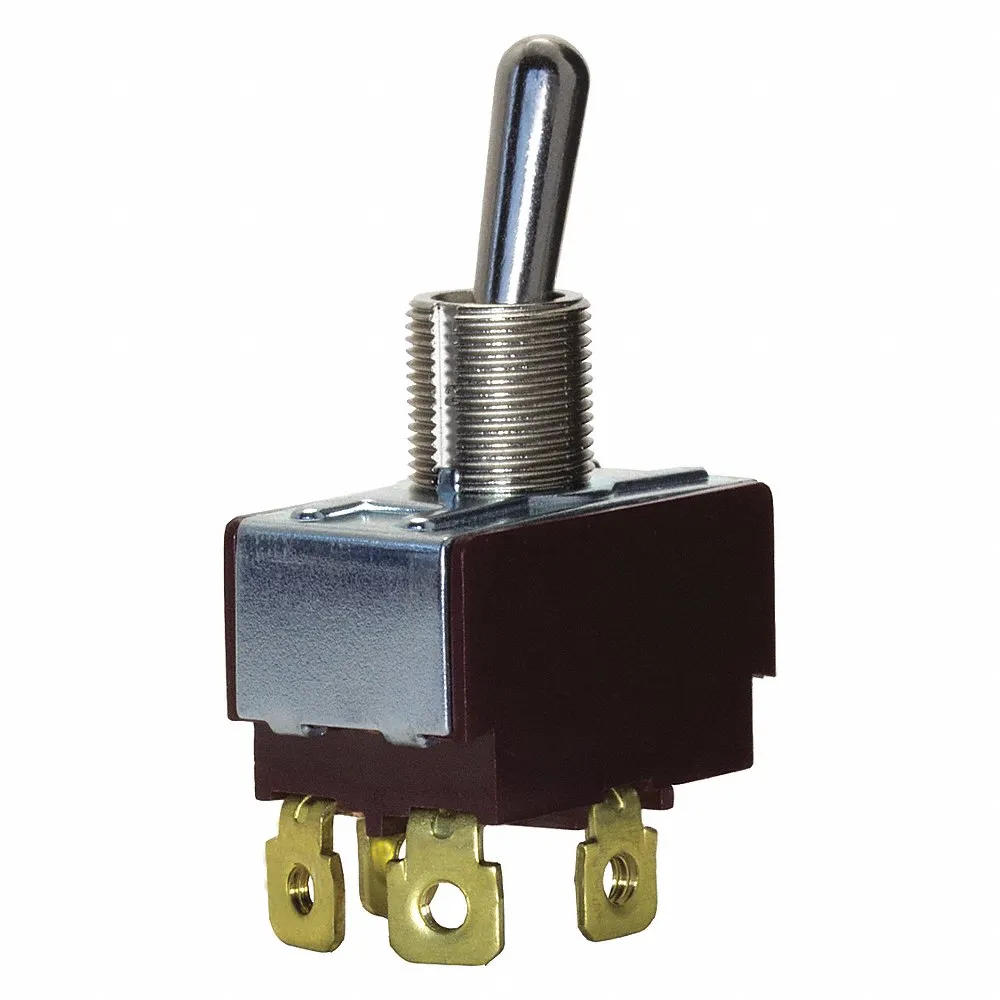

| Item | Toggle Switch |
| Actuator Color | Silver |
| Actuator Length | 14/25" |
| Bushing Length | 0.469" |
| Circuit Position Down | Off |
| Circuit Position Up | On |
| Includes | Panel Mounting |
| Lever Length | 0.563" |
| Number Of Connections | 4 |
| Product Height | 1 1/5" |
| Product Width | 3/4" |
| Stem Color | Silver |
| Stem Dia. And Thread Size | 1/2" |
| Stem Length | 0.469" |
| Terminals | Screw |
| Ac Contact Rating | 10A @ 250V,15A @ 125V |
| Contact Form | DPST |
| Features | Rotate Keyway 180° |
| Horsepower | 1/2 hp @ 125V AC, 3/4 hp @ 250V AC |
| Metal Actuator Finish | Silver |
| Number Of Poles | 2 |
| Number Of Positions | 3 |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | 0°F |
| Overall Depth | 1.22" |
| Overall Height | 2.07" |
| Overall Width | 0.62" |
| Panel Mounting Hole Diameter | 0.5" |
| Product Type | Toggle Switch |
| Series | 7500 Series |
| Standards | CSA, ROHS, UL LISTED |
| Stem Diameter | 0.47" |
| Stem Thread Size | 15/32"-32 |
| Switch Function Configuration | On/None/Off |
| Terminal Connection Type | Screw Terminals |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 3.33 |
| Ship width (cm) | 1.91 |
| Country of Origin | MX |
