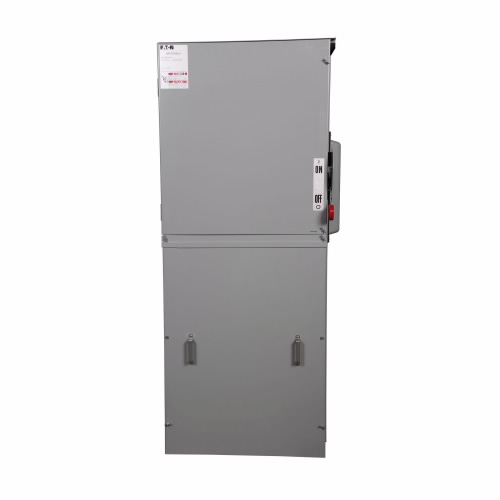

EATON 3MFS600RUG Main Fusible Switch With Utility Pull Box, 600A, Aluminum, 100 Kaic, 3-Phase, 120/208V
Due to weight and dimension restrictions, please request a shipping quote
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Fusible Switch |
| Accessories | With Utility Pull Box |
| Amps | 600A |
| Bus Material | Aluminum |
| Feed Type | Bottom |
| Fuse Clip Type | Class T |
| Interrupt Rating | 100 kAIC |
| Length | 17.59" |
| Nema Enclosure Rating | NEMA 3R |
| Notes | Fuses Not Included. Includes Lug Landing Pads On Line Side And Neutral. Spacer Kit 3MMBSK Required When Stacks Are Mounted On Right-Hand Side In Euserc Areas. |
| Number Of Wires | 4 |
| Phase | 3 |
| Product Height | 60 18/25" |
| Product Name | Eaton Main Fusible Switch |
| Product Width | 24 2/5" |
| Utility Approvals | MI : Consumers Energy, ID : Idaho Power, OR : Idaho Power, AK : Anchorage Municipal Light & Power, NV : NV Energy, CA : City of Los Angeles - DWP (LADWP), AZ : Southern California Edison, CA : Southern California Edison, WI : WE Energies / Wisconsin Public Service (WPS), MT : NorthWestern Energy, NE : NorthWestern Energy, SD : NorthWestern Energy, WY : NorthWestern Energy, NC : Dominion, VA : Dominion |
| Voltage | 120/208V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Ship weight (kg) | 90 |
| Ship height (cm) | 154.23 |
| Ship length (cm) | 44.68 |
| Ship width (cm) | 61.98 |
| Country of Origin | US |
