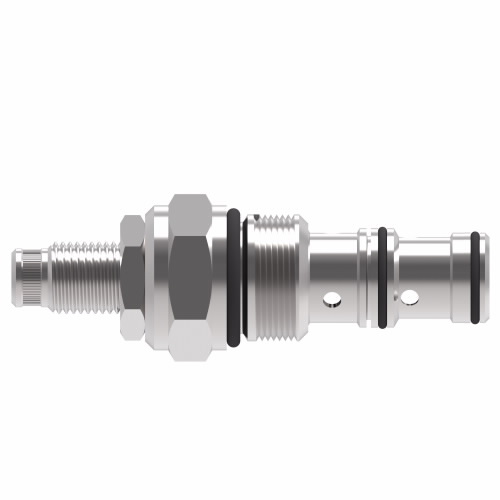

EATON 02-112931 Pressure Control Valve
Get it by Tuesday, Jun 17
€223.13 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Pressure Control Valve |
| Adjustment Type | Screw |
| Application | Harvesters, Refuse Haulers, Mobile And Industrial Applications |
| Cavity | C-10-3 |
| Factory Set Pressure | 155 Bar |
| Flow Rate | 4 LPM |
| Fluid Compatibility | All SICV Product are Suitable for Mineral Oil based General Hydraulic Fluids Including MIL-H-5606, SAE 10, SAE 20, etc. |
| Functions | Unloading Valve |
| Height | 1" |
| Housing | No |
| Installation Type | Screw In Cartridge |
| Leakage | Standard |
| Length | 3.34" |
| Max. Operating Pressure | 210 Bar |
| Min. Operating Pressure | 100 Bar |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temp. | -40°C to +120°C |
| Operation | Pilot Operated |
| Port Size | Not Available |
| Port Type | Cartridge Only |
| Pressure Rating | 210 Bar |
| Recommended Filtration Level | 13 µm, 16 µm, 18 µm |
| Seal Material | Buna N |
| Style | Poppet |
| Valve Material | Steel |
| Valve Torque Into Cavity | 47 N-m to 54 N-m |
| Warranty | Hydraulics Warranty |
| Weight | 0.33 lbs. |
| Width | 1" |
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.48 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
