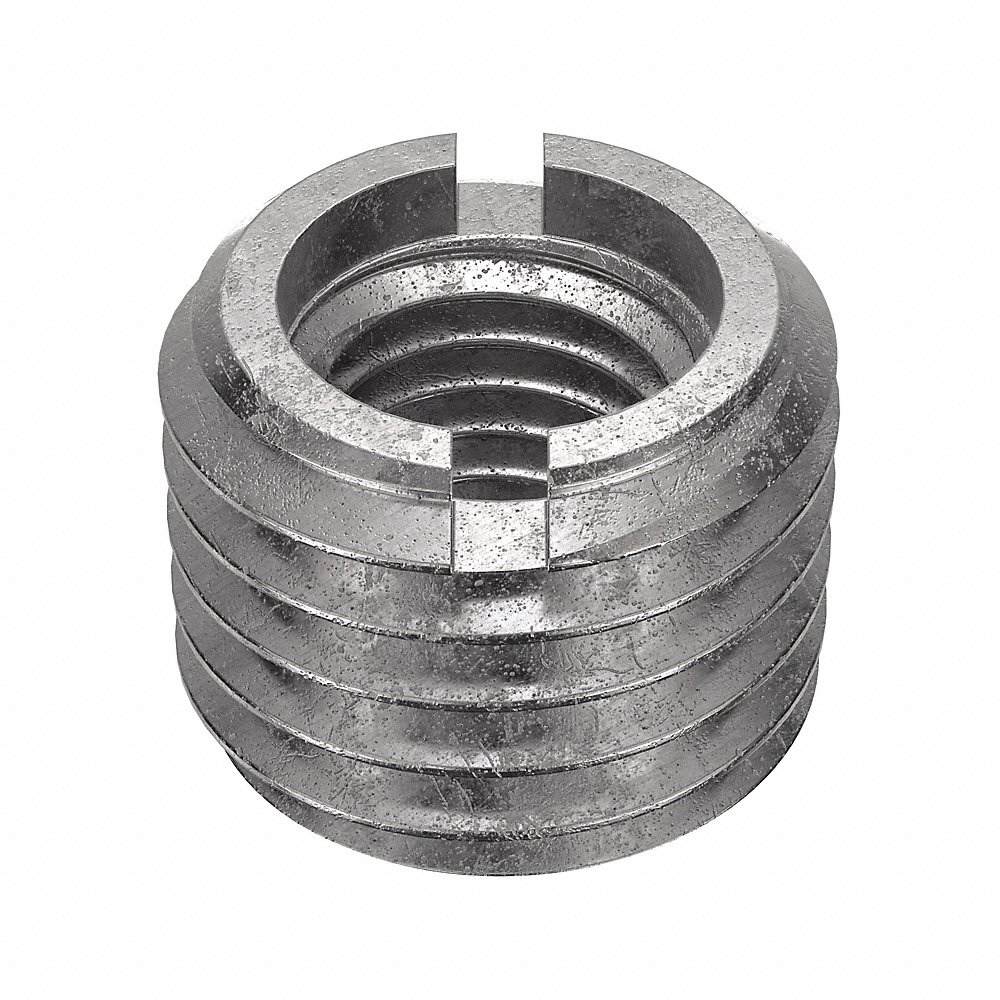

E-Z LOK 653-14 Self Locking Thread Insert, 11/16 Inch Length, 303 Stainless Steel, 49/64 Inch Drill | CG6NBM 4ZE79

E-Z LOK 653-14 Thread Insert, M14x2 Int. Thread Size, 7/8 In - 9 Ext. Thread Size, 11/16 In Lg., SS

Item: CG6NBMModel: 653-14Cross Ref: 4ZE79
In Stock

Get it by Thursday, Jun 19

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€63.17 /pack
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemThread Insert
Drill Size49/64"
External ClassClass 2A
External Thread Size7/8"-9
GradeGrade 303
HardnessRockwell Brinell 160
Internal ClassClass 6H
Internal Thread SizeM14 x 2
Length11/16"
MaterialStainless Steel
Min. Full Thread Depth13/16"
System Of MeasurementImperial/Metric
Tensile Strength89900 psi
Thread TypeMetric Internal/Coarse External
Wall TypeHeavy Wall
Brinell Hardness160
Compatible MaterialMetal
Compatible Tap Size7/8"-9
Display Qty5
Drill Bit Size49/64"
External Thread Fit2A
FeaturesPre Applied Adhesive Activates On Installation, Vibration Resistant
FinishPlain
Full Cure Time72 hrs.
Insert Diameter22.2 mm
Installation MethodBolt and Jam Nut, Drive Tool, Screwdriver
Internal Thread Fit2B
Material Grade/class18-8
Maximum Hole Diameter19.4564 mm
Minimum Installation Depth20.640625 mm
Overall Length17 mm

Shipping Info:

Ship weight (kg) 0.12
Country of OriginUS

Product Details:

    • For Use on Metal
