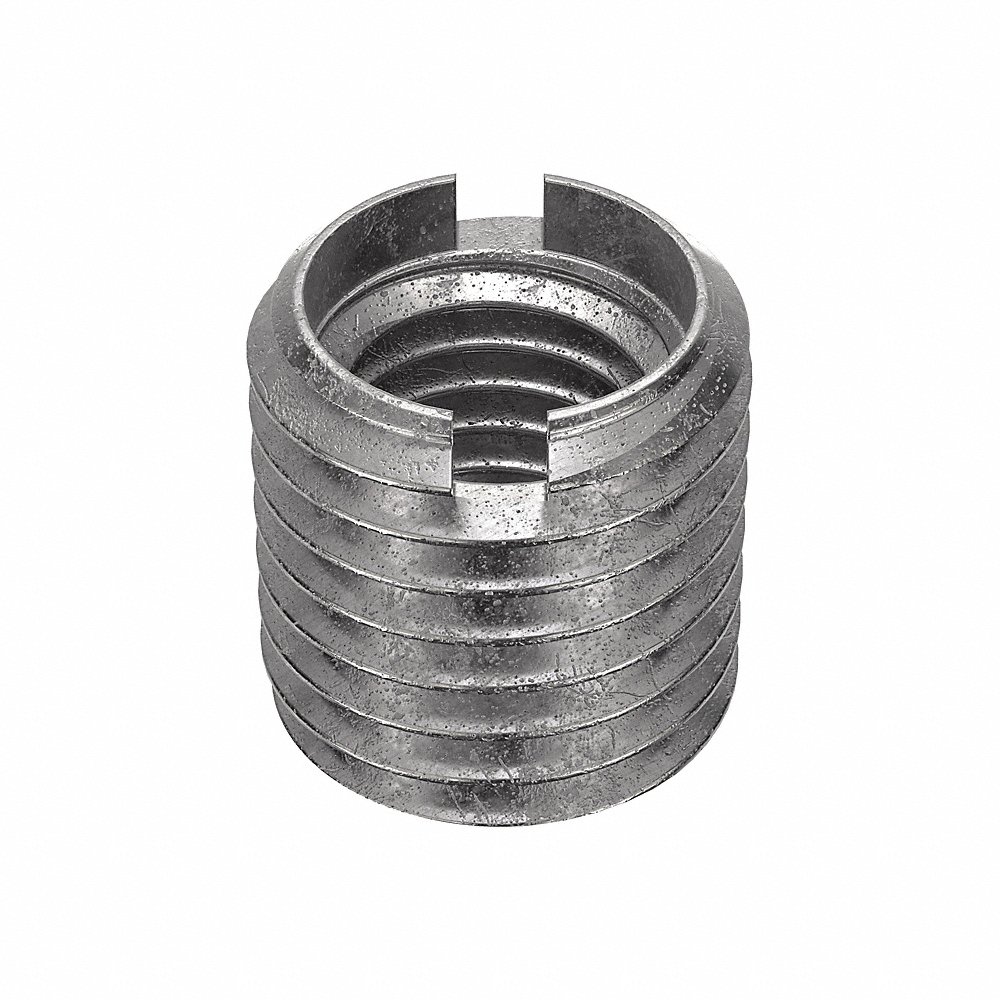

| Item | Thread Insert |
| Drill Size | 14 mm |
| External Class | Class 6G |
| External Thread Size | M16 x 2 |
| Grade | Grade 303 |
| Hardness | Rockwell Brinell 160 |
| Internal Class | Class 6H |
| Internal Thread Size | M12 x 1.75 |
| Length | 17 mm |
| Material | Stainless Steel |
| Min. Full Thread Depth | 3/4" |
| Power Driver | 4ZE57 |
| System Of Measurement | Metric |
| Tensile Strength | 89900 psi |
| Thread Type | Metric Internal/Metric External |
| Wall Type | Heavy Wall |
| Brinell Hardness | 160 |
| Compatible Material | Metal |
| Compatible Tap Size | M16 x 2 |
| Compatible With Grainger Part Number | 4ZE57 |
| Display Qty | 5 |
| Drill Bit Size | 14 mm |
| External Thread Fit | 6G |
| Features | Pre Applied Adhesive Activates On Installation, Vibration Resistant |
| Finish | Plain |
| Full Cure Time | 72 hrs. |
| Insert Diameter | 16 mm |
| Installation Method | Bolt and Jam Nut, Drive Tool, Screwdriver |
| Internal Thread Fit | 6H |
| Material Grade/class | 18-8 |
| Maximum Hole Diameter | 14 mm |
| Minimum Installation Depth | 19.05 mm |
| Overall Length | 17 mm |
| Ship weight (kg) | 0.04 |
| Country of Origin | US |
