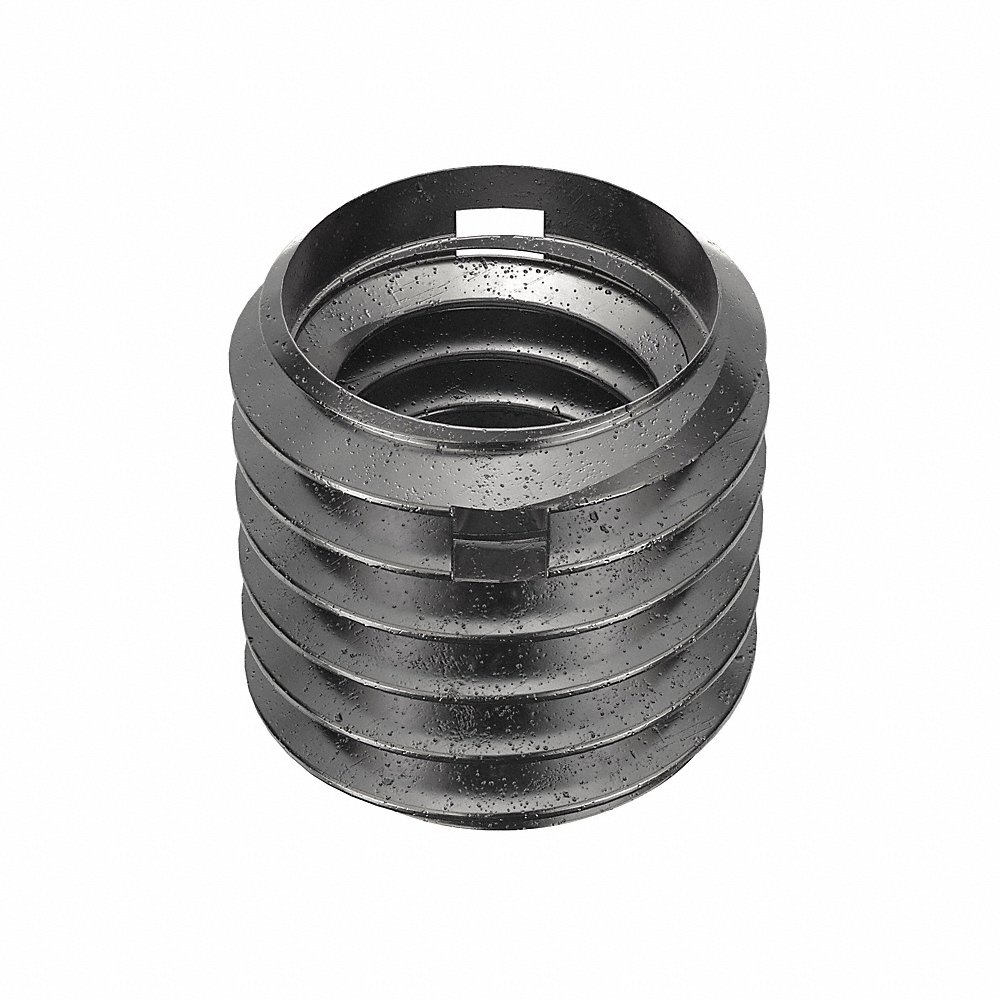

| Item | Thread Insert |
| Drill Size | 33/64" |
| External Class | Class 2A |
| External Thread Size | 9/16"-12 |
| Hardness | Rockwell Brinell 163 |
| Internal Class | Class 2B |
| Internal Thread Size | 7/16"-14 |
| Length | 9/16" |
| Material | Carbon Steel |
| Min. Full Thread Depth | 5/8" |
| Power Driver | 4ZE57 |
| System Of Measurement | Imperial |
| Tensile Strength | 78300 psi |
| Thread Type | Coarse Internal/Coarse External |
| Wall Type | Thin Wall |
| Brinell Hardness | 163 |
| Compatible Material | Metal |
| Compatible Tap Size | 9/16"-12 |
| Compatible With Grainger Part Number | 4ZE57 |
| Display Qty | 5 |
| Drill Bit Size | 33/64" |
| External Thread Fit | 2A |
| Features | Pre Applied Adhesive Activates On Installation, Vibration Resistant |
| Finish | Black Phosphate |
| Full Cure Time | 72 hrs. |
| Insert Diameter | 9/16" |
| Installation Method | Bolt and Jam Nut, Drive Tool, Screwdriver |
| Internal Thread Fit | 2B |
| Material Grade/class | Grade 12L14 |
| Maximum Hole Diameter | 0.516" |
| Minimum Installation Depth | 5/8" |
| Overall Length | 9/16" |
| Series | E-Z LOK Series |
| Ship weight (kg) | 0.03 |
| Country of Origin | US |
