| Abrasive Size | 5/8" or 3/4" W x 18" L (16 or 19 mm) W x (457 mm) L |
| Air Consumption | 32 CFM |
| Air Inlet | 1/4" NPT |
| Air Inlet Thread | 1/4" NPT |
| Air Pressure | 90 PSIG (6.2 Bar) |
| Arm Rotation | 180° |
| Arm Type | Pivoting |
| Belt Length | 18" |
| Belt Width | 3/4" |
| Duty | Heavy |
| Exhaust Location | Front |
| Exhaust Type | Front |
| Grip Type | Offset |
| Horsepower | 0.7 hp |
| Hose I.d. [inches] | 3/8" (10 mm) |
| Housing Material | Composite Housing |
| Hp | 0.7 hp (522 W) |
| Includes | Contact Arm |
| Max. Air Flow [scfm] | 32 SCFM (906 L/Min) |
| Max. Belt Speed | 4550 SFPM |
| Max. Rpm | 20000 |
| Max. Sfpm [inches] | 4550 (1382 SM/Min) |
| Max. Sm/min | 1386.84 |
| Maximum Motor Speed | 20000 RPM |
| Minimum Hose Size | 3/8" |

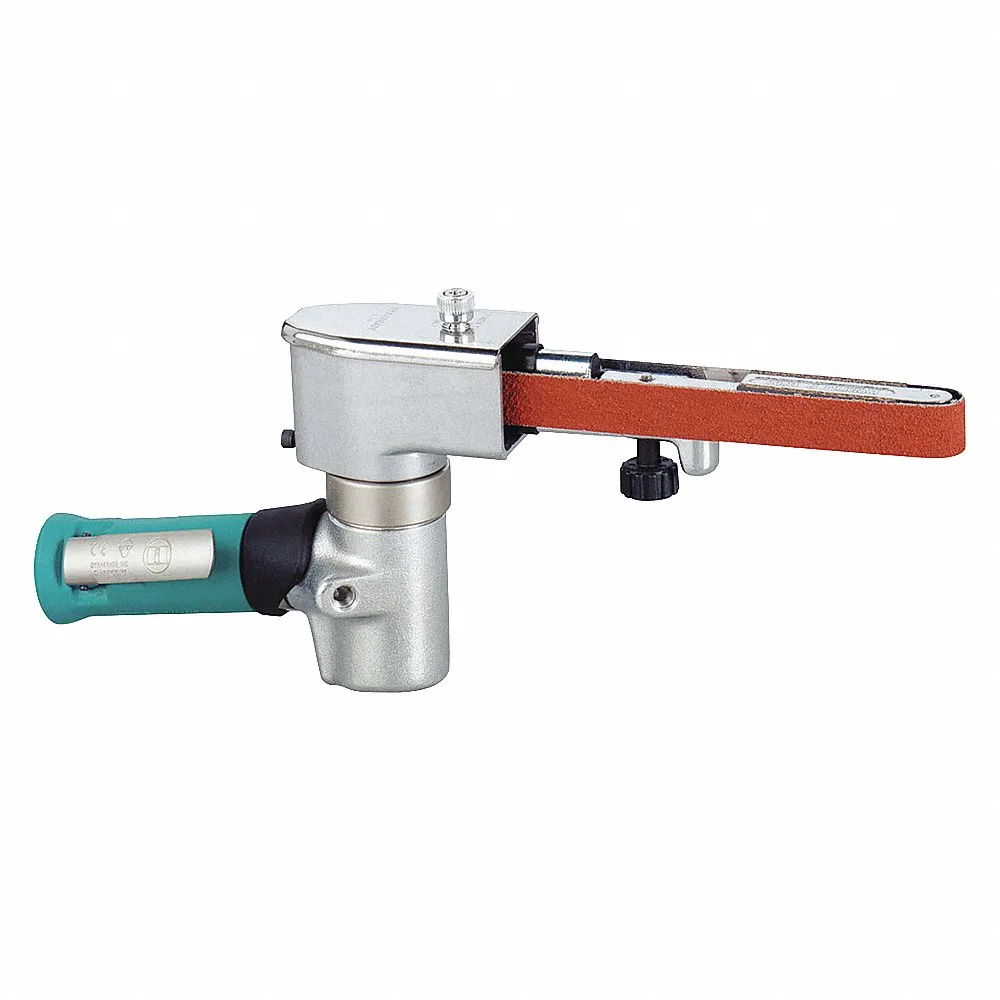

| Product Type | Air-Powered Belt Sander |
| Quantity Per Box | 1 |
| Required Pressure | 90 psi |
| Sound Level | 84 dB(A) |
| Sound Level | 87 dbA |
| Speed Settings | Fixed |
| Standards | CE |
| Throttle | Non-Locking Lever |
| Tool Height | 4.9" (124 mm) |
| Tool Height | 4 7/8" |
| Tool Length | 14.3" (362 mm) |
| Tool Length | 14 1/4" |
| Tool Series | Dynafile, Dynafile II |
| Tool Style | 7 Degree Offset |
| Tool Weight | 2.7 lbs. |
| Tool Width | 6 1/2" |
| Vacuum Type | Non-Vacuum |
| Ship weight (kg) | 1.53 |
| Country of Origin | US |
