| Item | Wet/Wet With Analog Display |
| Accuracy | -2% to +2% |
| Connection Location | Bottom, Top |
| Diameter | 5" |
| Display - Transmitter | Analog |
| Display Screen Type | Analog |
| Display Type | Analog |
| Electrical Connection | 4-Pin M12 Connector |
| Enclosure Rating | IP66, NEMA 4X |
| For Media Type | Compatible Gases, Liquids |
| Housing Height | 5" |
| Housing Length | 5" |
| Includes | Instructions |
| Max. Operating Temp. | 120°F |
| Max. Pressure | 0.5 in. wc |
| Maximum Loop Resistance | 1250 ohms |
| Min. Operating Temp. | 20°F |
| Min. Pressure | 0 in. wc |
| Nist Traceable Certificate | No |
| Number Of Wires | 2 |
| Output | 4-20 mA |
| Overall Depth - Transmitter | 3.41" |
| Overall Length | 3 2/5" |
| Overall Width | 5" |
| Overpressure | 500 psig |
| Power Required | 10-35V |
| Pressure Range | 0 in. wc to 0.5 in. wc |
| Pressure Units | In Wc |
| Primary Scale Range | 0 in. wc to 0.5 in. wc |
| Primary Scale Units | In Wc |
| Process Connection Gender | Female |
| Process Connection Size | 1/4" |
| Process Connection Size - Transmitter | 1/4" |
| Range Units | In Wc |
| Response Time | 50 ms |
| Shape | Round |
| Thermal Error | -0.09% to +0.09% |
| Wetted Grade | Grade 300 |
| Wetted Materials | Stainless Steel, Brass, Silicone |
| Electrical Connections | 4 Pin M12 Connector |
| For Use With Media Type | Compatible Gases, Liquids |
| Ip Rating | IP66 |
| Maximum Operating Temperature | 120°F |
| Maximum Pressure | 0.5 in. wc |
| Minimum Operating Temperature | 20°F |
| Minimum Pressure | 0 in. wc |
| Nema Rating | NEMA 4X |
| Process Connection | 1/4" NPT Female |
| Process Connection Type | NPT |
| Product Type | Wet/Wet With Analog Display |

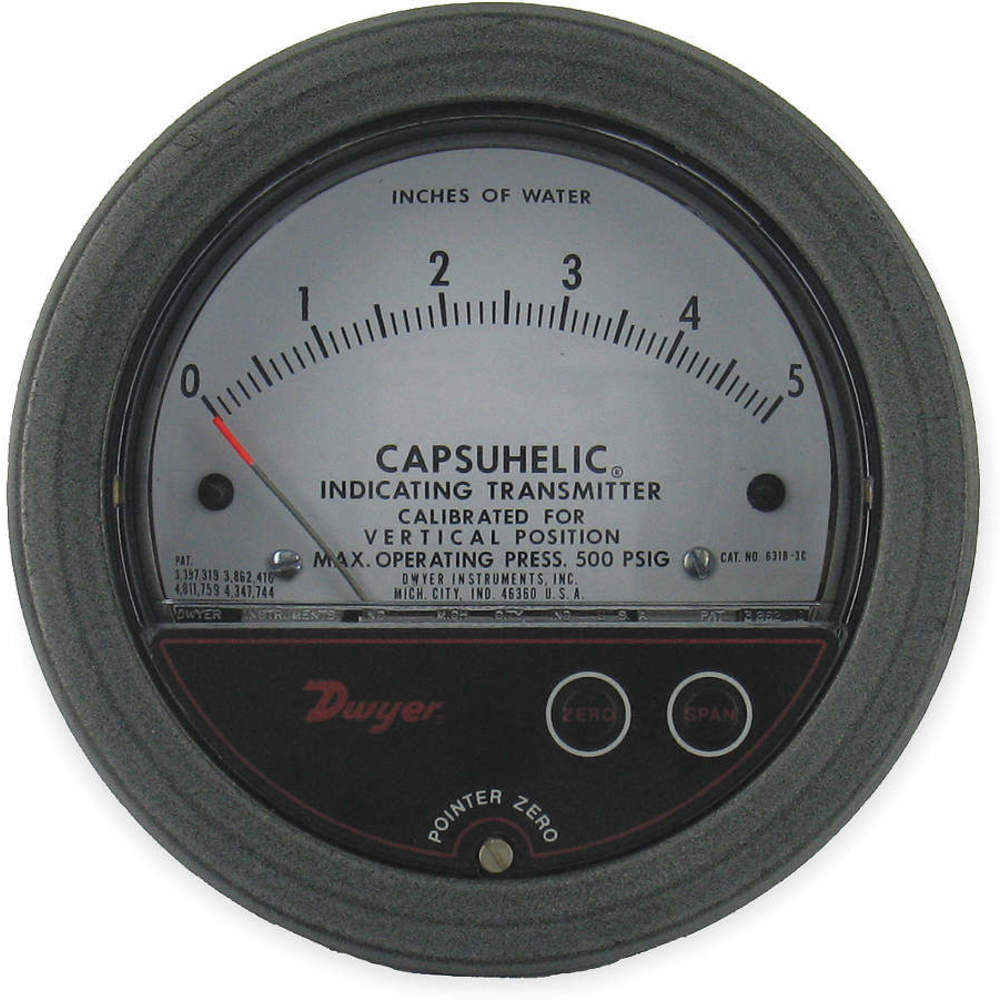

| Series | Capsuhelic 631B |
| Standards | CE, ROHS |
| Weight | 8 lbs. |
| Ship weight (kg) | 4.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Max. Pressure | Pressure Range | Price | |
|---|---|---|---|---|---|
|
631B-2 | 2 in. wc | 0 in. wc to +2 in. wc | €1,087.67 |
