| Item | Air Velocity Kit Telescoping |
| Accuracy | -0.5% to +0.5% |
| Application | Natural Gas |
| Auto Power Off | Yes |
| Batteries Required | Yes |
| Battery Type | 9V |
| Calibration Certificate Included | No |
| Connection Type | Barbed |
| Data Hold | Yes |
| Data Storage | Yes |
| Display Digits | 4 Digits |
| Display Type | 4 Digit LCD |
| Display Units | In Wc |
| For Use With | Air, Compatible Combustible Gases |
| Housing Height | 5 7/8" |
| Housing Length | 2.812" |
| Housing Material | Aluminum |
| Low Battery Indicator | Yes |
| Manometer Type | Intrinsically Safe Air Velocity Kit |
| Max. Operating Pressure | 5 psi |
| Max. Pressure | 5 psig |
| Operating Pressure Range | 0 in. wc to 10 in. wc |
| Operating Range | 0 in. wc to 10 in. wc |
| Operating Temp. Range | 0°F to +140°F |
| Overall Height | 6 1/2" |
| Overall Length | 0.906" |
| Overall Width | 2.812" |
| Pressure Range | 0 in. wc to 10 in. wc |
| Pressure Units | In Wc |
| Process Connection Type | Hose Barb |
| Resolution | 0.01 in. wc |
| Standards And Approvals | CE, FM |
| Type | Digital |
| Air Velocity Accuracy | +/-0.50% of Full Scale |
| Alarm | No |
| Compatible With Product Type | Boilers, HVAC Systems |
| Connections | 1/8" Hose Barb, 3/16" Hose Barb |
| Digital Display Features | 4 Digit LED |

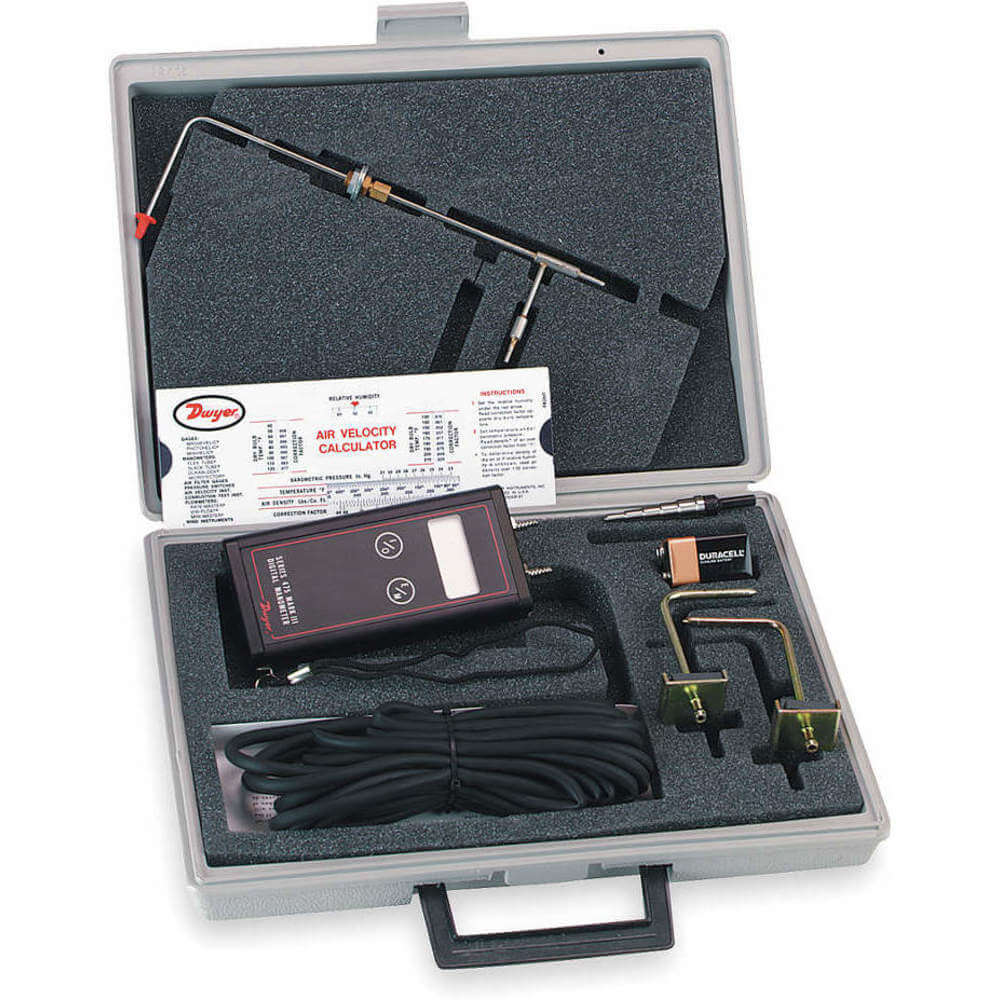

| Includes | (2) 4-1/2 ft. Length 3/16" ID Rubber Tubing, (2) No. A-303 Static Pressure Tips With Magnetic Mounting, A-397 Step Drill for 3/16 in-1/2" Holes" 1/16" Increments, A-532 AV Slide Chart, Fitted Polyethylene Case, Model 166T, 36" Telescoping Ss Pitot Tube |
| Includes Batteries | Yes |
| Intrinsically Safe Safety Rating | Class I Div. 2 Group A, B, C, D |
| Manufacturers Warranty Length | 1 yr. |
| Maximum Operating Temperature | 140°F |
| Maximum Pressure | 10 in. wc |
| Minimum Operating Temperature | 0°F |
| Minimum Pressure | 0 in. wc |
| Pressure Accuracy | ±0.5% of Full Scale |
| Pressure Resolution | 0.01 in. wc |
| Process Connection Size | 1/8", 3/16" |
| Series | 475 Series |
| Storage Temperature Range | -4°F to 176°F |
| Weight | 10.8 oz. |
| Ship weight (kg) | 1.5 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 37.59 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
