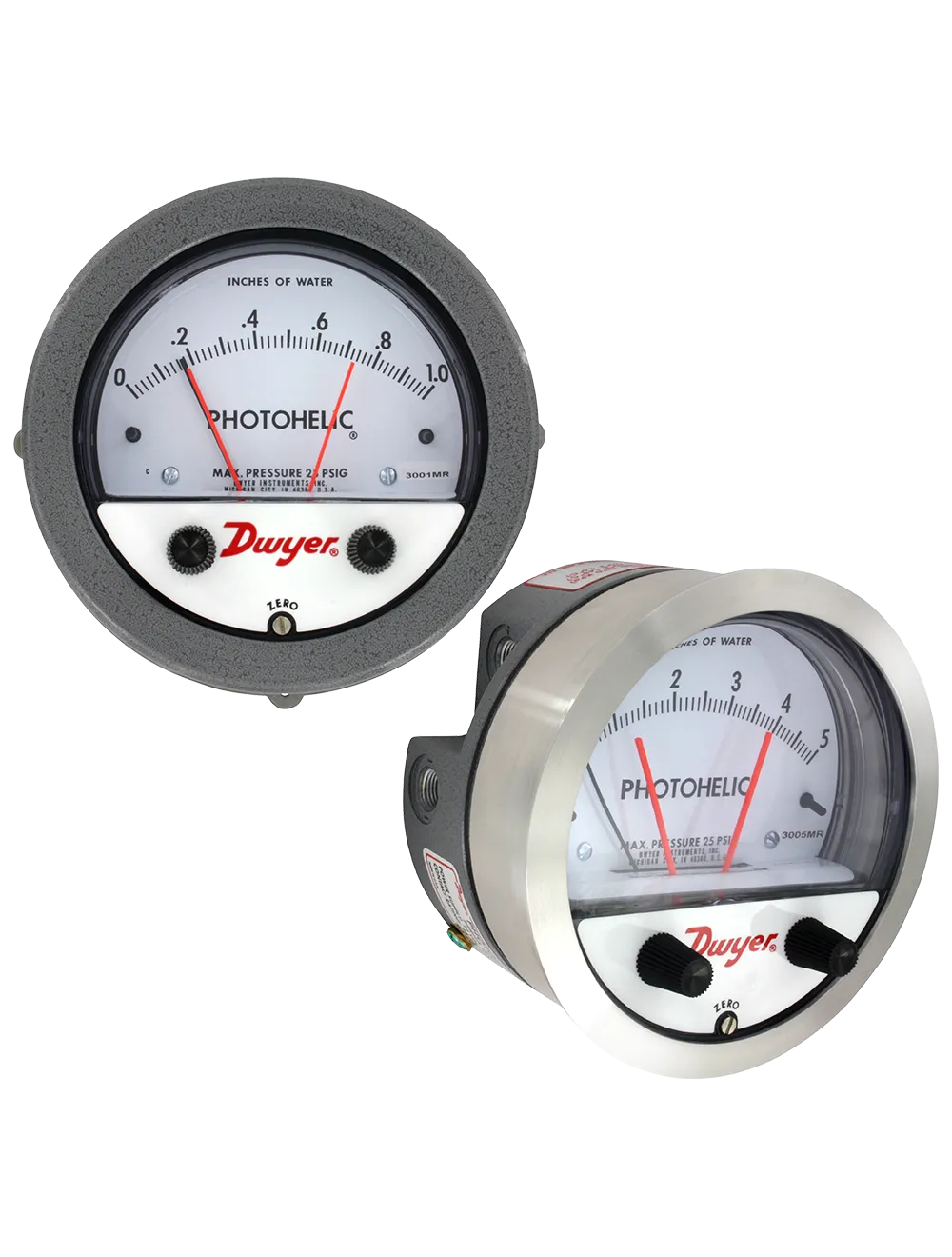

| Item | Differential Guage |
| Operating Temp. Range | +20°F to +120°F |
| Pressure Range | 0 in. wc to 0.5 in. wc |
| Accuracy | +/-3% |
| Accuracy Details | +/-3% FS |
| Adjustable Set Points | Yes |
| Ambient Operating Temperature Range | 20°F to 120°F |
| Application | Air Conditioning Systems, Clean Rooms, Pneumatic Conveying |
| Case Depth | 2.5" |
| Case Diameter | 5" |
| Compatible Process Media | Air, Non-Combustible Compatible Gases |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | Yes |
| Maximum Working Static Pressure | 25 psig |
| Mounting Orientation | Upright Only |
| Mounting Type | Flush Mount, Surface Mount |
| Nominal Dial Size | 4" |
| Panel Mount Characteristics | (4) 6-32 Holes Equally Spaced on a 5-1/8" Dia Bolt Circle |
| Power Source | 24V DC |
| Pressure Gauge Type | Differential Pressure Gauge with Switch |
| Process Connection Gender | Female |
| Process Connection Location | Back, Side |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Relay Type | SPDT |
| Sensor Type | Diaphragm |
| Series | 3000MR Series |
| Standards | CE |
| Switch Contact Type | SPDT |
| Switch Electrical Requirements | 0.3A @ 110V DC/0.5A @ 125V AC, 1A @ 30V DC |
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 6.35 |
| Country of Origin | US |
