| Item | Differential Pressure Gauge |
| Connection Size | 1/8" |
| Connection Type | NPT |
| Cover Material | Acrylic |
| Dial Size | 4" |
| Differential Pressure Range | 0 in. wc to 15 in. wc |
| Housing Material | Die Cast Aluminum |
| Mounting Orientation | Vertical |
| Pressure Range | 0 in. wc to 15 in. wc |
| Pressure Range Minor Div. | 0.5 in. wc |
| Scale Type | Pressure |
| Temp. Range | +20°F to +140°F |
| Accuracy | +/-2% |
| Accuracy Details | +/-2% (-HA model +/-1) of FS (+/-3% (-HA +/-1.5%) on-0,-100PA,-125PA,-10MM and +/-4% (-HA +/-2%) on-00,-60PA,-6MM ranges), throughout range at 70°F (21.1°C). |
| Adjustable Set Points | No |
| Ambient Operating Temperature Range | 20°F to 140°F |
| Application | Clean Rooms, Fan Pressure Indication, Filtration Monitoring, Flow Measurement, HVAC/R, Vacuum Applications |
| Case Construction | Corrosion Resistant |
| Case Depth | 1.687" |
| Case Diameter | 4.75" |
| Case Finish | Die Cast |
| Case Material | Aluminum |
| Compatible Process Media | Cleanroom |
| Hazardous Location Rating | Not Rated |
| Includes | Instructions, Three Mounting Adapters with Screws, Two 1/8" NPT Plugs, Two 1/8" NPT to 3/16" ID Rubber Tubing Adapters |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | Yes |
| Ip/nema Rating | NEMA IP67 |
| Manufacturer Warranty Length | 5 yrs. |
| Maximum Working Static Pressure | 80 psig |
| Mounting Hardware Included | Flange |
| Mounting Type | Flush Mount |
| Nominal Dial Size | 4" |
| Over-pressure Limit | 1.72 bar |
| Panel Mount Characteristics | 3L Dia Holes on E Dia Bolt Circle |
| Pressure Gauge Type | Differential Pressure Gauge |
| Process Connection Gender | Female |
| Process Connection Location | Dual Side Or Back |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Rated Total Pressure | -20 in. hg to 15 psi |
| Sensor Material | Silicone Rubber |
| Sensor Type | Diaphragm |
| Series | 2000 Magnehelic |
| Standards | EU ROHS II |
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 17.27 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 9.65 |
| HS code | 9026208000 |
| Country of Origin | US |

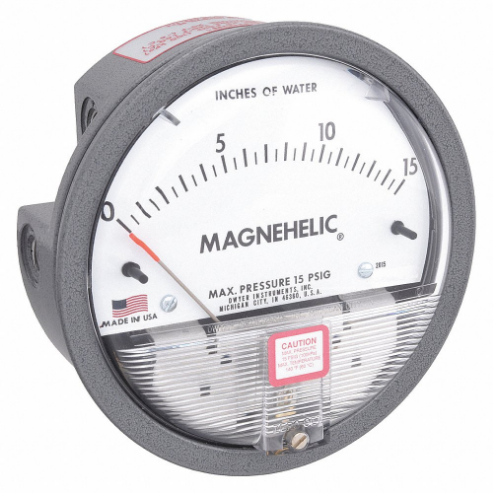

The 2000 Series Magnehelic® differential pressure gauges provide an accurate, economical indication of positive, negative, or differential air pressure in HVAC applications and building automation systems, BAS. The pressure gauge includes a 4 in (10.2 cm) easy-to-read dial and a frictionless magnetic movement in a cast aluminum housing. The differential pressure gauge is resistant to shock, vibration, and overpressure. The Magnehelic® Gauge has both back and side connections, so that it may be either surface- or flush-mounted. Ranges are available from 0 in to 0.25 in W.C. up to 10'' W.C.
| Product | Model | Accuracy | Item | Pressure Range | Price | |
|---|---|---|---|---|---|---|
 |
2330 | -/+ 2% | Differential Pressure Gauge | 15 to 0 to 15" wc | €148.70 | |
 |
2310 | -/+ 2% | Differential Pressure Gauge | 5 to 0 to 5" wc | €139.43 | |
 |
2302 | -/+ 2% | Differential Pressure Gauge | 1 to 0 to 1" wc | €135.48 | |
 |
2300-0 | -/+ 2% | Differential Pressure Gauge | 0.25 to 0 to 0.25" wc | €136.92 | |
 |
2060 | -/+ 2% | Differential Pressure Gauge | 0 to 60" wc | €122.63 | |
 |
2040 | -/+ 2% | Differential Pressure Gauge | 0 to 40" wc | €192.61 | |
 |
2030 | -/+ 2% | Differential Pressure Gauge | 0 to 30" wc | €124.48 |
