DWYER INSTRUMENTS

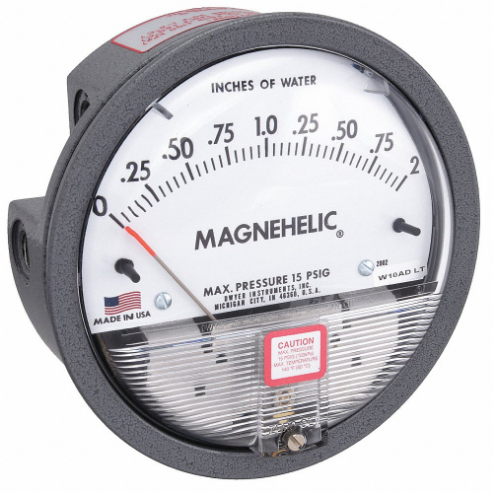

DWYER INSTRUMENTS 2002 Differential Pressure Gauge, 0 to 2 Inch WC | AD2NQN 3T317

DWYER INSTRUMENTS 2002 Differential Pressure Gauge, 0 to 2 Inch WC

In Stock
Item: AD2NQN Model: 2002Cross Ref: 3T317
Check Availability
See variants (31)

Get it by Jun 5, Wednesday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€123.53 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemDifferential Pressure Gauge
Accuracy-/+ 2%
Connection Size1/8"
Connection TypeNPT
Cover MaterialAcrylic
Dial Size4"
Housing MaterialDie Cast Aluminum
Mounting OrientationVertical
Pressure Range0 to 2" wc
Pressure Range Minor Div.0.05" WC
Rated Total Pressure-20" Hg to 15 psig
Scale TypePressure
Temp. Range20 Deg. to 140 Deg. F

Shipping Info:

Ship weight (kg) 0.81
Ship height (cm)17.27
Ship length (cm)15.24
Ship width (cm)9.65
HS code9026208000
Country of OriginUS

Product Details:

The 2000 Series Magnehelic® differential pressure gauges provide an accurate, economical indication of positive, negative, or differential air pressure in HVAC applications and building automation systems, BAS. The pressure gauge includes a 4 in (10.2 cm) easy-to-read dial and a frictionless magnetic movement in a cast aluminum housing. The differential pressure gauge is resistant to shock, vibration, and overpressure. The Magnehelic® Gauge has both back and side connections, so that it may be either surface- or flush-mounted. Ranges are available from 0 in to 0.25 in W.C. up to 10'' W.C.

Product Variants

ProductModelAccuracyPressure RangePrice
DWYER INSTRUMENTS 2330 Differential Pressure Gauge, 3 1/2 Inch Dial, -15 to 0 to 15 Inch WC, Aluminium | AB3YFA 1W465 2330-/+ 2%15 to 0 to 15" wc€151.87
DWYER INSTRUMENTS 2310 Differential Pressure Gauge, 3 1/2 Inch Dial, -5 to 0 to 5 Inch WC, Aluminium | AB3YFB 1W467 2310-/+ 2%5 to 0 to 5" wc€111.21
DWYER INSTRUMENTS 2302 Differential Pressure Gauge, 3 1/2 Inch Dial, -1 to 0 to 1 Inch WC, Aluminium | AB3YFC 1W469 2302-/+ 2%1 to 0 to 1" wc€137.48
DWYER INSTRUMENTS 2300-0 Differential Pressure Gauge, 1/8 Inch Connection | AB3YFD 1W471 2300-0-/+ 2%0.25 to 0 to 0.25" wc€133.90
DWYER INSTRUMENTS 2060 Differential Pressure Gauge, 4 1/2 Inch Dial, 0 to 60 Inch WC, Die Cast Aluminium | AB3YFE 1W473 2060-/+ 2%0 to 60" wc€134.18
DWYER INSTRUMENTS 2040 Differential Pressure Gauge, 4 1/2 Inch Dial, 0 to 40 Inch WC, Die Cast Aluminium | AB3YFF 1W475 2040-/+ 2%0 to 40" wc€157.16
DWYER INSTRUMENTS 2030 Differential Pressure Gauge, 4 1/2 Inch Dial, 0 to 30 Inch WC, Die Cast Aluminium | AB3YFG 1W477 2030-/+ 2%0 to 30" wc€104.18
