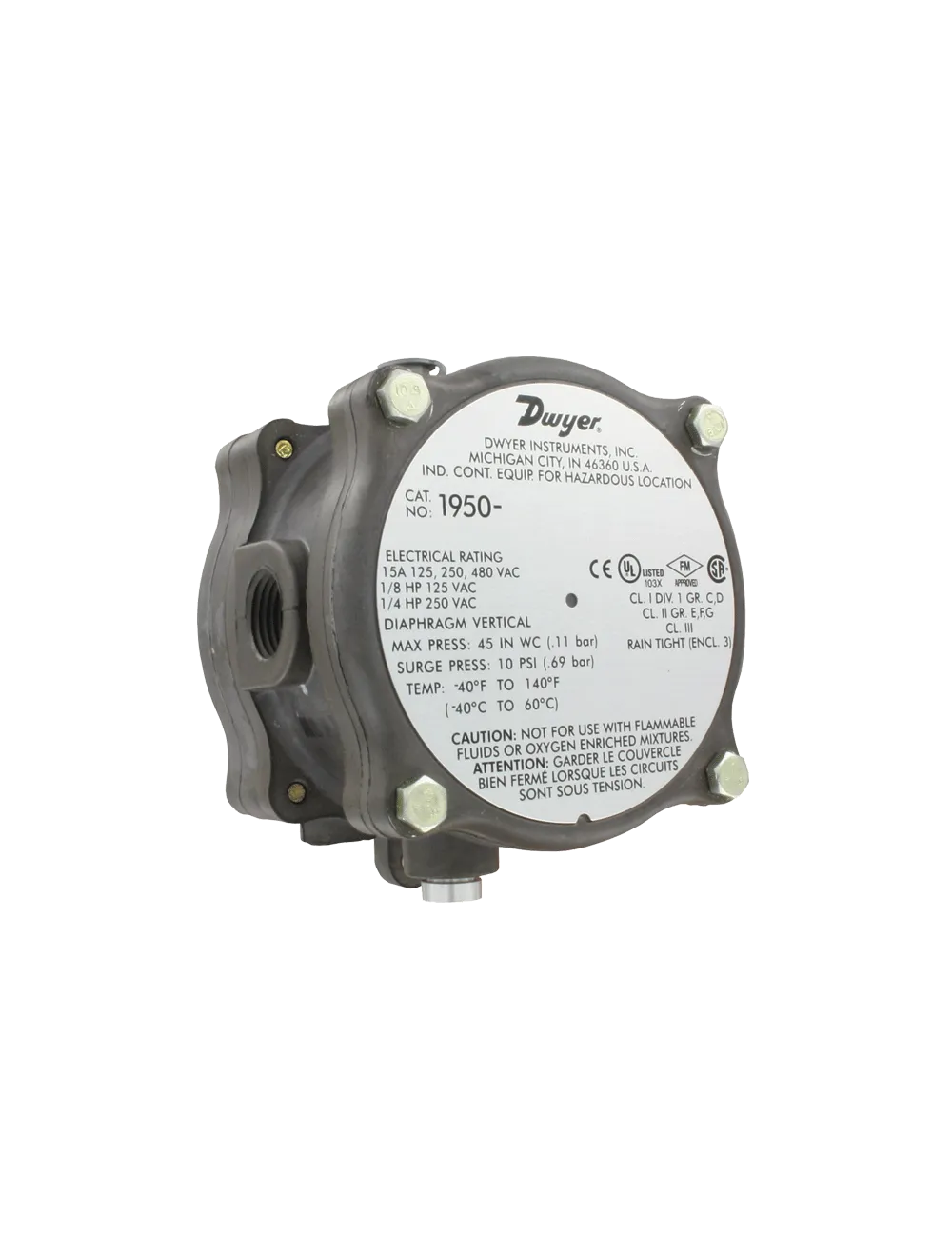

| Item | Vacuum Switch |
| Electrical Connection | 3 Screw Type, Common, Normally Open, Normally Closed |
| Enclosure Rating | NEMA 3, NEMA 7, NEMA 9 |
| Ip Rating | IP54 |
| Mounting Orientation | Diaphragm In Vertical Position |
| Operating Temp. Range | -40°F to +140°F |
| Power Requirement | 15A At 120-480V AC |
| Pressure Range | 4 in. wc to 20 in. wc |
| Application | HVAC |
| Contact Form | SPDT |
| Electrical Connection Type | Screw Terminals |
| Electrical Rating | 1/4 HP @ 250 V AC, 60 Hz, 1/8 HP @ 125 V AC, 15 A @ 125/250/480 V AC, 60 Hz Resistive |
| For Pressure Type | Differential |
| Housing Material | Aluminum |
| Housing Type | NEMA-3 Enclosure |
| Includes | Drain Plug, O-Ring Seal Cover |
| Mounting Hole Center To Center Distance | 4 7/8" |
| Mounting Hole Diameter | 1/4" |
| Overall Depth | 3 1/2" |
| Overall Width | 5 7/16" |
| Pressure Set Point | 4 in. wc to 20 in. wc |
| Product Type | Differential Pressure Switch |
| Sample Line Connection | 1/8" NPT |
| Sample Line Connection Size | 1/8" |
| Sample Line Connector Type | NPT |
| Standards | CE, CSA, FM, ROHS, UL LISTED |
| Switching Differential | 4 in. wc to 20 in. wc |
| Type Of Set Point | Adjustable |
| Ship weight (kg) | 1.46 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 13.81 |
| Country of Origin | US |
| Product | Model | Approx Deadband Max. Set Point | Approx Deadband Min. Set Point | Connection Type | Continious Pressure | Item | Pressure Range | Surge Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
|
1950P-15-2F | - | - | - | - | Gauge | - | - | €597.67 | |
 |
1950-0-2F | 0.15 | 0.1 | Fnpt | - | Pressure Switch | 0.15 in. wc to 0.5 in. wc | - | €524.08 | |
|
1950-10-2F | 0.5 | 0.4 | Npt | 0.11 bar | Differential Pressure Switch | - | 0.69 bar | €516.29 | |
|
1950-5-2F | 0.4 | 0.3 | Npt | 0.11 bar | Differential Pressure Switch | - | 0.69 bar | €511.61 | |
 |
1950-00-2F | - | - | - | - | Pressure Switch | 0.07 in. wc to 0.15 in. wc | - | €520.50 | |
|
1950P-2-2F | 0.3 | 0.3 | Npt | 2.41 bar | Differential Pressure Switch | - | 3.45 bar | €549.60 |
