| Item | Gauge |
| Electrical Connection | 3 Screw Type, Common, Normally Open, Normally Closed |
| Enclosure Rating | EXP, GP, WP |
| Operating Temp. Range | -30°F to +180°F |
| Power Requirement | 15A At 120-480V AC |
| Pressure Range | 0.07 in. wc to 0.22 in. wc |
| Contact Form | SPDT |
| Electrical Connection Type | Screw Terminals |
| Electrical Rating | 15 A @ 120 to 480V AC, 60 Hz. Resistive 1/8 HP @ 125V AC, 1/4 HP @ 250V AC, 60 Hz. De-Rate to 10 A |
| For Pressure Type | Differential |
| Housing Type | Conduit Box |
| Maximum Operating Temperature | 180°F |
| Maximum Pressure Rating | 25 psi |
| Minimum Operating Temperature | -20°F |
| Mounting Hole Center To Center Distance | 1 1/8" |
| Mounting Hole Diameter | 1/16" |
| Mounting Orientation | Vertical |
| Number Of Switches | 1 |
| Overall Depth | 4 3/8" |
| Overall Height | 4 3/16" |
| Overall Width | 4 5/16" |
| Pressure Set Point | 0.07 in. wc to 0.22 in. wc |
| Product Type | Pressure Switch |
| Sample Line Connection | 1/8" NPT |
| Sample Line Connection Size | 1/8" |
| Sample Line Connector Type | NPT |
| Standards | CE, CSA, FM, ROHS, UL LISTED |
| Switch Voltage | 120- 480V AC |
| Switching Differential | 0.07 in. wc to 0.22 in. wc |
| Type Of Set Point | Adjustable |
| Ship weight (kg) | 0.66 |
| Ship height (cm) | 20.52 |
| Ship length (cm) | 23.02 |
| Ship width (cm) | 15.2 |
| Country of Origin | US |

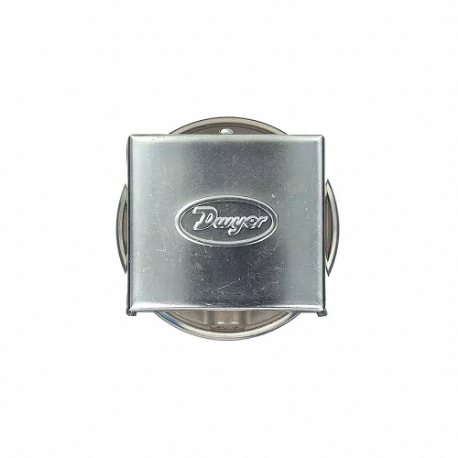

Essential for industrial environments, the Dwyer 1800 Series low differential pressure switch combines small size and low price with 2% repeatability for enough accuracy for all but the most demanding applications. Set point adjustment inside the mounting stud permits mounting switch on one side of a wall or panel with adjustment easily accessible on the opposite side. UL and CSA listed, and FM approved.
| Product | Model | Item | Pressure Range | Price | |
|---|---|---|---|---|---|
 |
1823-5 | Gauge | 1.5 in. wc to 5 in. wc | €159.24 | |
 |
1823-10 | Differential Pressure Switch | 2 in. wc to 10 in. wc | €172.51 | |
 |
1823-80 | Gauge | 9 in. wc to 85 in. wc | €161.07 | |
|
1823-40 | Pressure Switch | 5 in. wc to 44 in. wc | €163.44 | |
 |
1823-1 | Pressure Switch | 0.3 in. wc to 1 in. wc | €163.50 | |
|
1823-0 | Switch | 0.15 in. wc to 0.5 in. wc | €172.23 |
