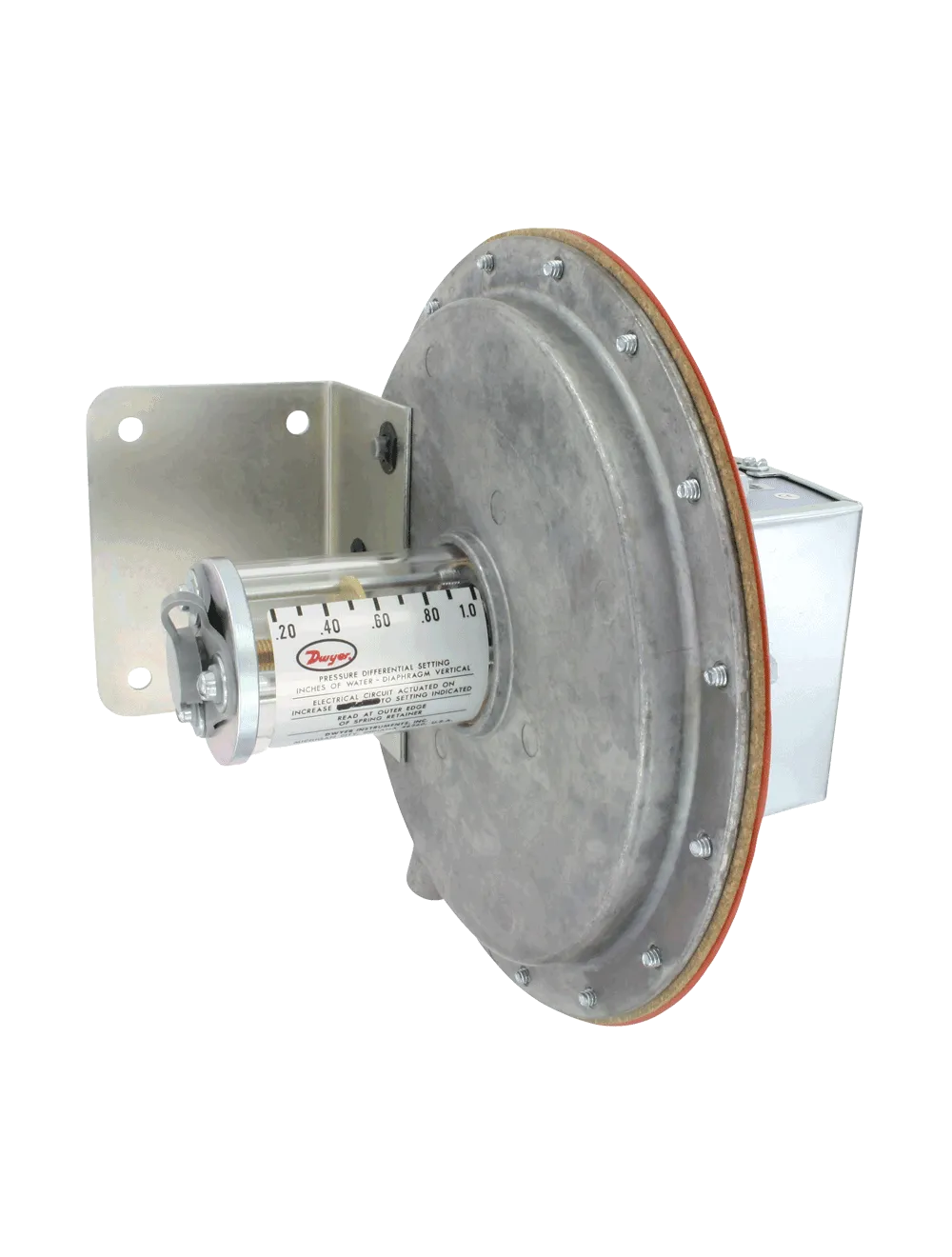

| Item | Pressure Switch |
| Electrical Connection | 3 Screw Type, Common, Normally Open, Normally Closed |
| Enclosure Rating | EXP, GP, WP |
| Mounting Orientation | Diaphragm In Vertical Position |
| Operating Temp. Range | -30°F to +110°F |
| Power Requirement | 5A At 120/480V AC |
| Pressure Range | 3 in. wc to 12 in. wc |
| Application | Air Conditioning, Duct Heater Control |
| Contact Form | SPDT |
| Electrical Connection Type | Screw Terminals |
| Electrical Rating | 1/4 hp @ 250 V AC, 60 Hz, 15 A @ 120 to 480 V AC, 60 Hz, Resistive 1/8 hp @ 125 V AC |
| For Pressure Type | Differential |
| Housing Material | Steel |
| Housing Type | Conduit Box |
| Maximum Operating Temperature | 110°F |
| Maximum Pressure Rating | 10 psig |
| Minimum Operating Temperature | -30°F |
| Mounting Hole Center To Center Distance | 3" |
| Mounting Hole Diameter | 5/16" |
| Number Of Switches | 1 |
| Overall Depth | 3 1/8" |
| Overall Height | 6 1/2" |
| Overall Width | 5 7/8" |
| Pressure Set Point | 3 in. wc to 12 in. wc |
| Product Type | Differential Pressure Switch |
| Sample Line Connection | 1/8" NPT |
| Sample Line Connection Size | 1/8" |
| Sample Line Connector Type | NPT |
| Standards | CSA, FM, UL LISTED |
| Switch Voltage | 120- 480V AC/125V AC/250V AC |
| Switching Differential | 3 in. wc |
| Type Of Set Point | Adjustable |
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 7.94 |
| Ship width (cm) | 14.92 |
| Country of Origin | US |
