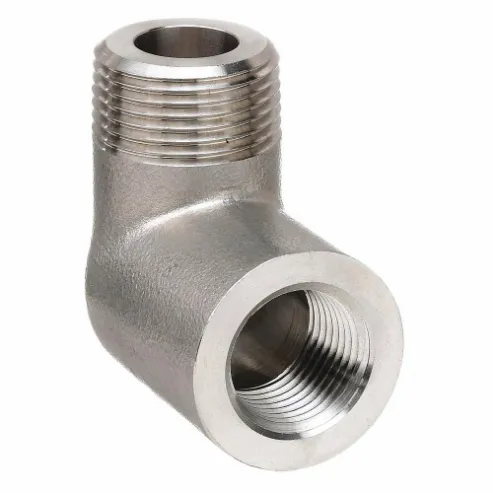

| Item | Rotary Joint Elbow |
| Connection | NPT |
| Material | Stainless Steel |
| Size | 1" |
| Tube O.d. | 1/4" |
| Tube Outside Dia. | 1/4" |
| Elbow Outlet Connection Type | NPT |
| Elbow Outlet Thread Size | 1/4" |
| Elbow Siphon Connection Type | NPT |
| Elbow Siphon Thread Size | 1/4" |
| Fitting Material | Stainless Steel |
| Fitting Material Grade | Grade 300 |
| Fitting Type | Elbow |
| Flow Direction | Dual Flow |
| For Fluid Type | Air, Hot Oil, Steam, Water |
| Maximum Operating Temperature | 395°F |
| Maximum Speed | 1000 RPM |
| Maximum Temperature For Fluid Types | 300°F (Water), 350°F (Steam), 395°F (Hot Oil) |
| Maximum Vacuum Pressure | 100 psi (Hot Oil), 120 psi (Steam), 300 psi (Air), 750 psi (Water) |
| Operating Pressure For Fluid Types | 100 psi (Hot Oil), 120 psi (Steam), 300 psi (Air), 750 psi (Water) |
| Pipe Size | 1" |
| Resistance Properties | Corrosion Resistant |
| Seal Material | Ceramic Coated Steel |
| Standards | ISO |
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 9.65 |
| Ship width (cm) | 9.65 |
| HS code | 7307929000 |
| Country of Origin | US |
