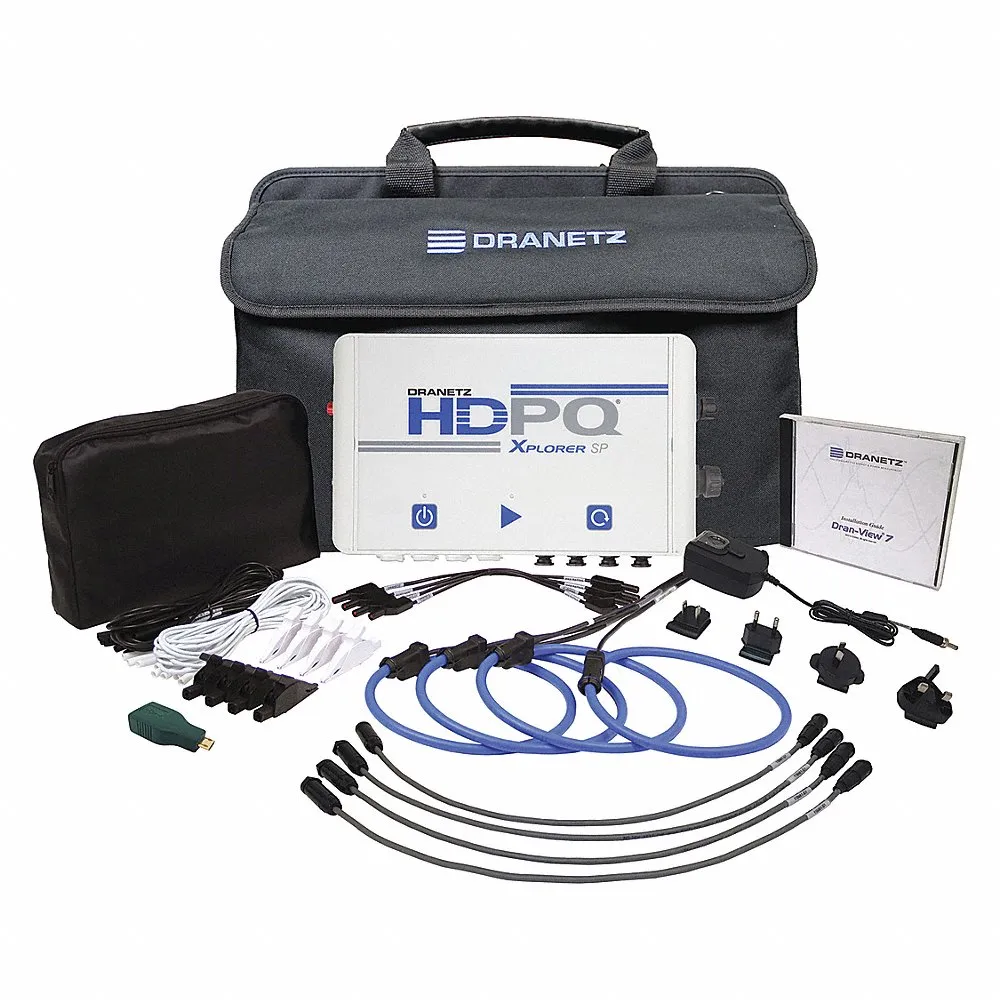

DRANETZ HDPQ-SPXAFLEX3KPKG Power Quality Analyzer, 6000 A Max Ac Current Measured, Three Phase, 4 Volt Channels
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Power Quality Analyzer |
| Amps Channels | 4 |
| Current Accuracy | -0.1% to +0.1% |
| Data Logging | Yes |
| Peak Capture | Yes |
| Phase | 3 |
| Storage | 4 Gigabytes |
| Voltage Accuracy | -0.1% to +0.1% |
| Voltage Channels | 4 |
| Ac Magnitude Calculation | True RMS |
| Calibration Certificate | Included |
| Calibration Frequency | 16/25 Hz, 50/60 Hz |
| Cat Safety Rating | CAT III 1000V, CAT IV 600V |
| Communication Protocol | Ethernet, Optional Bluetooth via USB Adapter, USB, VNC Remote Control, Wi-Fi |
| Crest Factor | I=3, V=2 |
| Current Channels | 4 |
| Data Logger | Yes |
| Digital Memory Capacity | 4 Gigabytes |
| Display Screen Type | LCD |
| Display Size | 7" |
| Display Type | Digital |
| For Phase | 3 |
| Frequency Rating | 16-25/41-69 Hz |
| Harmonic Capture | 127th |
| Includes | (4) Black 25 cm Stackable Jumpers, (4) Black Alligator Clips, (4) White Alligator Clips, Dran-View 7 DV7E-PX, DRANFLEX3000XLB24 Single Phase Probe, DRANFLEX3003XLB24 Three Phase Probe, Phase Power Interconnect Cable 118708-G1, SCC-HDPQ Soft Carry Case, TRTOIP65-EX1 TR to IP65, 16" length, (Qty.4) Current Core Adapter Cables (118461-G1), USB Micro Adapter USBMA-OTG, Voltage Cable Set 118375-G1 Includes: (8) 6 ft. (183cm) Measurement Cables: 4 Black, 4 White |
| Includes Software | Yes |
| Ip Rating | IP65 |
| Manufacturer Warranty Length | 3 yrs. |
| Maximum Ac Current Measured | 6000A |
| Maximum Ac Voltage Measured | 1000V |
| Maximum Dc Current Measured | 1000A |
| Maximum Dc Voltage Measured | 1000V |
| Maximum Operating Temperature | 122°F |
| Maximum Volt-amps | 100000000 MVA |
| Maximum Wattage | 1000 TW |
| Minimum Ac Voltage Measured | 40V |
| Minimum Dc Voltage Measured | 40V |
| Minimum Operating Temperature | 14°F |
| Power Factor | -1 to 0 to 1 |
| Power Source | Battery, Electric Corded |
| Sampling Rate | 512 Sample/cycle |
| Standards | EN 50160: 2010, IEC 61000-4-15: EDITION 2 (2010), IEC 61000-4-30 CLASS A EDITION 3, IEC 61000-4-7 CLASS 1: EDITION 2 (2008), IEEE 1159: 2009, IEEE 1453: 2011, IEEE 1459: 2000, IEEE 519: 2014 |
| Testing Functions | Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage |
| Tool Height | 2.5" |
| Tool Length | 11" |
| Tool Width | 6.5" |
| Transient Duration | 1 usec. |
| Ship weight (kg) | 9 |
| Product | Model | Price | |
|---|---|---|---|
 |
HDPQ-SPXA500PKG | - | RFQ
|
 |
HDPQ-SPVAMFLEX3PKG | - | RFQ
|
 |
HDPQ-SPXAPKG | - | RFQ
|
 |
HDPQ-SPVAFLEX3KPKG | - | RFQ
|
 |
HDPQ-SPVA500PKG | - | RFQ
|
 |
HDPQ-SPGA500PKG | - | RFQ
|
 |
HDPQ-SPGA550PKG | - | RFQ
|
