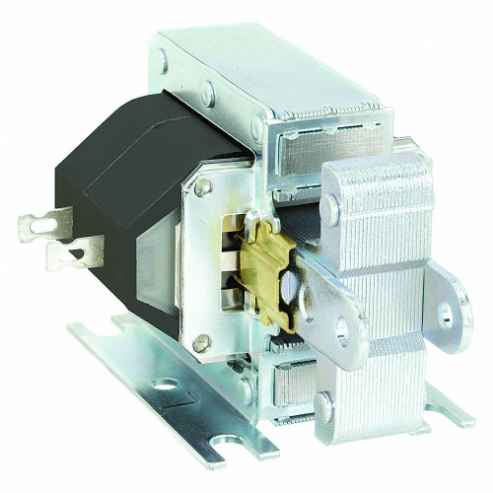

| Item | Solenoid |
| Amps @ Max. Stroke | 2.5A |
| Coil Resistance | 82 ohms |
| Coil Voltage | 240V AC |
| Depth | 2 1/16" |
| Duty Cycle | Continuous |
| Gravity Value | 4.32 oz. |
| Length | 2 1/2" |
| Length (straight Wireway) | 2 1/2" |
| Mounting Holes | 2" x 1 3/8" |
| Pull @ 1/4 In. Stroke | 2 oz. |
| Pull @ 1/8 In. Stroke | 3 oz. |
| Pull @ 3/8 In. Stroke | 1 oz. |
| Pull Force Range | 64 oz. to 128 oz. |
| Seated Amps | 0.22A |
| Seated Watts | 17.5 W |
| Solenoid Type | Laminated |
| Specific Gravity | 4.32 oz. |
| Terminal Type | Solder Lug Coil |
| Terminals | Solder Lug Coil |
| Type | Laminated |
| Width | 1 13/16" |
| Coil Volts | 240V AC |
| Stroke Range | 1/8" to 1" |
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 5.24 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 4.6 |
| HS code | 8505908000 |
| Country of Origin | US |
| Product | Model | Coil Volts | Depth | Duty Cycle | Length | Mounting Holes | Terminals | Type | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1000-M-1 | 120 VAC | 1-7/16" | Continuous | 1.625" | 1-3/8 x 7/8" | Solder Lug Coil | Laminated | 1.187" | €54.16 | |
 |
1001-M-1 | 240 VAC | 1-7/16" | Continuous | 1.625" | 1-3/8 x 7/8" | Solder Lug Coil | Laminated | 1.187" | €75.40 | |
 |
2005-M-1 | 120 VAC | 2-1/16" | Continuous | 2.5" | 2 x 1-3/8" | Solder Lug Coil | Laminated | 1 13/16" | €44.11 | |
 |
2536-M-1 | 120 VAC | 2-1/16" | Continuous | 2.5" | 2 x 1-5/8" | Solder Lug Coil | Laminated | 2 1/16" | €71.05 | |
|
2537-M-1 | 240 VAC | 2-1/16" | Continuous | 2.5" | 2 x 1-5/8" | Solder Lug Coil | Laminated | 2 1/16" | €73.81 | |
 |
3000-M-1 | 120 VAC | 2-15/16" | Continuous | 3" | 2 x 1-7/8" | Solder Lug Coil | Laminated | 2.38" | €92.64 | |
 |
3001-M-1 | 240 VAC | 2-15/16" | Continuous | 3" | 2 x 1-7/8" | Solder Lug Coil | Laminated | 2.38" | €74.84 |
