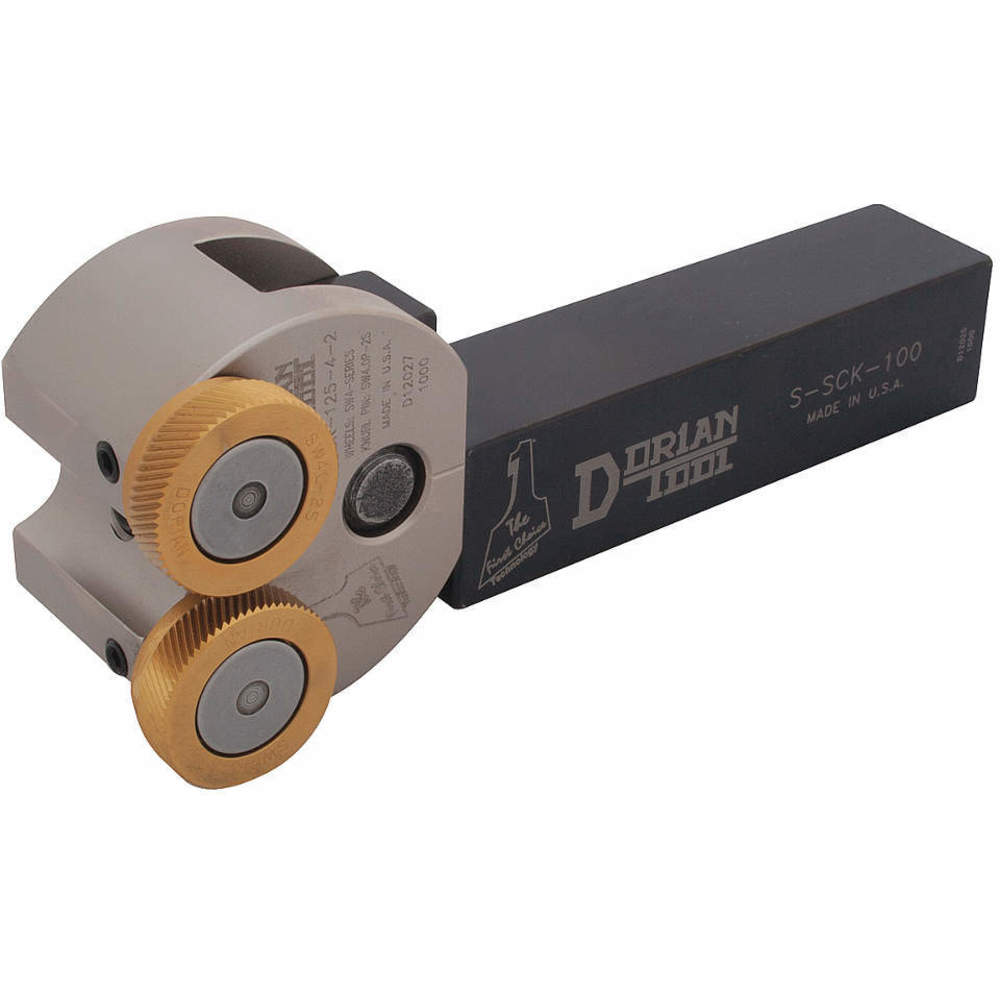

| Item | Knurling Tool |
| Feed | In And End |
| Head Height | 2 1/4" |
| Head Length | 2 1/8" |
| Head Width | 1.667" |
| Overall Length | 6 1/8" |
| Pattern | Diamond, Straight To Shoulder |
| Shank Height | 1" |
| Shank Length | 4" |
| Shank Shape | Square |
| Shank Type | Square |
| Shank Width | 1" |
| Type | CNC, Self Centering |
| Wheel | Dual |
| For Knurl Face Width | 1/4" |
| For Knurl Hole Dia. | 1/2" |
| For Knurl Outside Dia. | 1" |
| For Use With | SW4 Knurl Wheels |
| Includes | LeftHand and RightHand Diagonal 25 TPI Knurl Wheels For Diamond Pattern |
| Knurl Holder Application | For CNC Lathe Applications To Knurl Against A Square Shoulder, SelfCentering Knurling Head |
| Knurl Series | SSCK Series |
| Knurls Included | Yes |
| Number Of Knurls Required | 2 |
| Ship weight (kg) | 1.16 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 15.56 |
| Ship width (cm) | 5.84 |
| HS code | 7318190000 |
| Country of Origin | US |
| Product | Model | Head Height | Head Length | Head Width | Overall Length | Pattern | Shank Height | Shank Length | Shank Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SCKN-50-D | 1.375" | 1.375" | 0.75" | 4.25" | Diamond Or Straight Shoulderless | 1/2" | 2.75" | 5/8" | €424.86 | |
|
SCKN-75-M | 2.25" | 2.375" | 1 3/10" | 5.625" | Diamond Or Straight Shoulderless | 3/4" | 3.25" | 3/4" | €512.00 | |
|
SCKN-100-M | 2.25" | 2.375" | 1 3/10" | 6.375" | Diamond Or Straight Shoulderless | 1" | 4" | 1" | €607.24 | |
|
SCKN-125-M | 2.25" | 2.375" | 1.3" | 7.375" | Diamond Or Straight Shoulderless | 1/4" | 5" | 1/4" | €642.43 | |
 |
SSCK-50-2 | 1.25" | 1.25" | 0.9" | 4" | Diamond Or Straight To Shoulder | 1/2" | 2.75" | 5/8" | €636.39 | |
 |
SSCK-75-4 | 2.25" | 2.125" | 1 2/3" | 5.375" | Diamond Or Straight To Shoulder | 3/4" | 3.25" | 3/4" | €760.49 | |
|
SSCK-125-4 | 2.25" | 2.125" | 1.66" | 7.125" | Diamond Or Straight To Shoulder | 1.25" | 5" | 1.25" | €816.62 |
