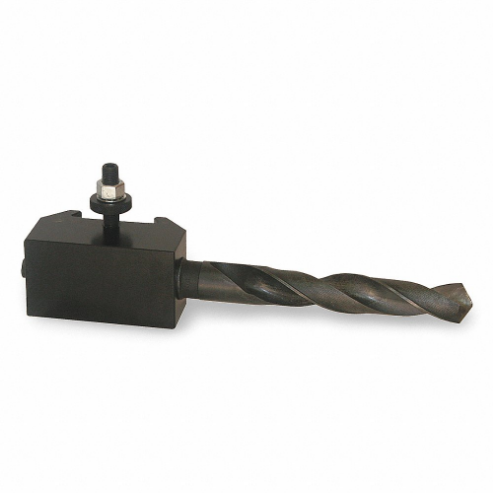

DORIAN QITP50N-5-5 Tool Holder Morse Taper Qitp50n
Get it by Tuesday, Jun 17
€413.52 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Tool Holder |
| Application | For Holding Morse Taper Tools In Drilling, Boring Or Reaming Operations |
| Dimension A | 1 3/4" |
| Dimension C | 1/2" |
| Dimension D | 3 1/2" |
| Dimension E | 3 1/2" |
| Dimension F | 4.137" |
| Dimension G | 2 6/25" |
| Features | Fits Industry Standard Tool Posts |
| Tool Post Holder Type | Morse Taper |
| Type | Morse Taper |
| Compatible Tool Type | Drill Bits, Reamers |
| Compatible With Manufacturer Model Number | QITP50N |
| For Max Lathe Swing | 32" |
| For Max Shank Size | MT5 |
| For Min Lathe Swing | 17" |
| For Shank Shape | Morse |
| For Tool Post Series | QITP50N |
| Max Centerline Height | 3 1/2" |
| Overall Height | 3 1/2" |
| Overall Width | 5 5/8" |
| Ship weight (kg) | 6.19 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 14.29 |
| Ship width (cm) | 10.16 |
| HS code | 7318190000 |
| Country of Origin | US |
| Model | Capacity | Dimension A | Dimension B | Dimension C | Dimension D | Dimension E | Dimension F | Dimension G | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| D35CXA-5-4 | MT4 | 1.125" | MT4 | 4.15" | 2.5" | 2.25" | 1.199" | 1.615" | €220.53 | |
| D40CA-5-4 | MT | 1.25" | MT4 | 4.5" | 2.5" | 2.5" | 1.53" | 1.615" | €230.12 | |
| D50DA-5-5 | - | 1.75" | MT5 | 0.5" | 3.5" | 3.5" | 4.137" | 2.24" | €346.55 | |
| D60EA-5-5 | - | 1.75" | MT5 | 6" | 3.5" | 3.5" | 4.447" | 2.24" | €486.17 | |
| QITP35N-5-4 | 3/4" | 1.125" | MT4 | 3.75" | 2.5" | 2.25" | 2.815" | 1.615" | €237.31 | |
| QITP40N-5-4 | 1" | 1.25" | MT4 | 4.5" | 2.5" | 2.5" | 3.145" | 1.615" | €290.85 | |
| QITP60N-5-5 | - | 1.75" | MT5 | 6" | 3.5" | 3.5" | 4.447" | 2.24" | €576.76 |
