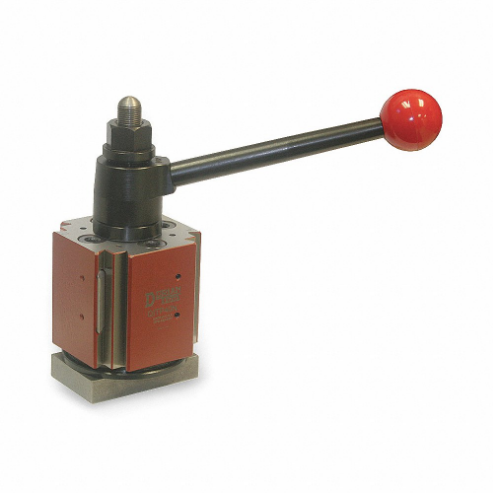

DORIAN QITP40N Tool Post Quadra 16-20 Inch Swing
Get it by Tuesday, Jun 17
€2,073.24 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Tool Post |
| Body Height | 4.07" |
| Center Height | 2 1/5" |
| Centerline-to-body | 1.53" |
| Dimension A | 4" |
| Dimension B | 4.07" |
| Dimension C | 7.525" |
| Dimension D | 3/4" |
| Dimension E | 1.53" |
| Dimension F | 2.202" |
| Height Adjustment | 1.757" to 2.646" |
| Includes | Blank T-Nut For Customer To Machine To Own Specifications |
| Lock | Positive |
| Number Of Positions | 24 |
| Swing | 16" to 20" |
| Thread Size | 1/4"-16 |
| Body Width | 4" |
| Compatible With Manufacturer Model Number | DQ40CA-41S-2000-DUAL, DQ40CA-41SM-50-DUAL, QITP40N-1, QITP40N-2, QITP40N-36, QITP40N-4-1250-DUAL, QITP40N-41-1500-DUAL, QITP40N-41M-40-DUAL, QITP40N-4M-32-DUAL, QITP40N-5-4, QITP40N-7-71C, QITP40N-881-OE |
| For Max Lathe Swing | 20" |
| For Max Shank Size | 1 1/4" |
| For Min Lathe Swing | 16" |
| For Min Shank Size | 1" |
| Indexing Repeatability | 0.00005" |
| Number Of Locking Positions | 24 |
| Optimum Center Height | 2.646" |
| Overall Height | 7.525" |
| Tool Post Series | QITP40N |
| Ship weight (kg) | 9.97 |
| Ship height (cm) | 11.68 |
| Ship length (cm) | 24.64 |
| Ship width (cm) | 12.45 |
| HS code | 7318190000 |
| Country of Origin | US |
| Product | Model | Capacity | Dimension A | Dimension B | Dimension C | Dimension D | Dimension E | Dimension F | Thread | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QITP25N | 1/2 to 3/4" | 2.5" | 2.71" | 5.21" | 0.5" | 0.88" | 1.422" | 1/2-20 | €1,175.64 | |
 |
QITP30N | 5/8 to 1" | 3" | 3.205" | 5.72" | 0.5" | 1.115" | 1.747" | 1/2-20 | €1,321.50 | |
 |
QITP35N | 3/4 to 1" | 3.5" | 3.46" | 6.415" | 0.625" | 1.2" | 1.835" | 5/8-18 | €1,591.08 | |
|
QITP50N | 1.25" | 5" | 5.23" | 9.135" | 1" | 1.897" | 2.995" | 1"-14 | €2,762.31 | |
|
QITP60N | 1.5" | 6" | 5.615" | 9.855" | 1.125" | 2.207" | 3.44" | 13 | €3,933.53 | |
 |
SDN25AXA | 1/2 to 3/4" | 2.625" | 2.5" | 4.24" | 0.5" | 0.88" | 1.25" | 1/2-20 | €432.13 | |
|
SDN30BXA | 5/8 to 1" | 3" | 2.75" | 4.71" | 0.625" | 1.115" | 1.312" | 5/8-18 | €540.62 |
