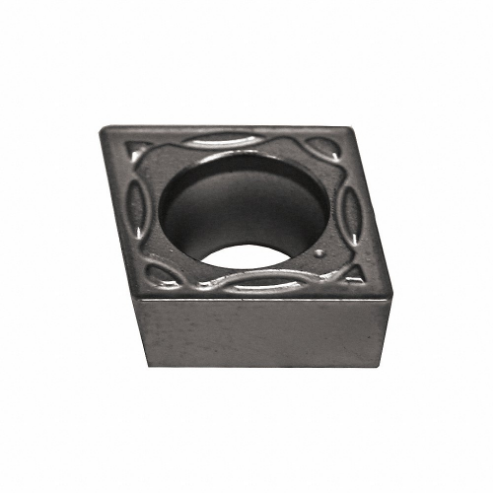

| Item | Turning Insert |
| Application | Drilling |
| Chip-breaker Style | On One Side , Yes |
| Coolant Fed | Coolant Through |
| Cutting Direction | Neutral |
| General Shape | Diamond |
| Material | Carbide |
| Number Of Coolant Holes | 2 |
| Number Of Cutting Edges | 1 |
| Primary Material Application | High-Temperature Alloys |
| Primary Material Application Iso Code | S20 |
| Rake | Positive |
| Shape | Rhombic |
| System Of Measurement | Fractional Inch |
| Ansi Code | CCMT-32.51-SEH |
| Chip-breaker | Yes |
| Chip-breaker Code | SEH |
| Clearance Angle | 7° |
| Coating Process | PVD |
| Corner Radius | 1/64" |
| Cutting Application | Finishing, Medium and Light Roughing, Turning and Boring |
| Cutting Edge | Honed |
| Cutting Edge Length | 9 mm |
| Depth Of Cut | 0.039" to 0.138" |
| Features | Coating Minimizes Friction And Maximizes Chip Flow, For All Super Alloys, Discaloy, Incoloy, Hastelloy, Inconel 718 And 625, Nimonic, Udimet, Waspalloy And Non-Ferrous Materials, Impact And Abrasive Resistant Micrograin Substrate, Pressed Insert |
| Finish - Machining | TiAlN |
| Hole Type | 40° to 60° Countersink Through Hole |
| Included Angle | 80° |
| Inscribed Circle | 3/8" |
| Insert Code | CCMT331 |
| Insert Holding Type | 40° to 60°Countersink Hole |
| Insert Style | CCMT |
| Iso Number | CCMT-093T04-SEH |
| Manufacturer Grade | DSP20HT |
| Material - Machining | Carbide |
| Material Grade - Machining | Grade C2-C3 |
| Measurement System | Fractional Inch |
| Standards | ANSI B5.50, DIN 6499 |
| Thickness | 3/16" |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 0.48 |
| Ship length (cm) | 5.44 |
| Ship width (cm) | 6.81 |
| HS code | 7318190000 |
| Country of Origin | AT |
| Model | Ansi Number | Coating | Grade | Inscribed Circle | Insert Size | Insert Thickness | Mounting Hole Dia. | Mounting Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 06IL-A60-DVK10 | - | - | - | - | - | - | - | - | €23.74 | |
| 06IL-A60-DVP656 | - | - | - | - | - | - | - | - | €23.74 | |
| 06IR-A60-DVP656 | - | - | - | - | - | - | - | - | €23.74 | |
| 08IL-A60-DVK10 | - | - | - | - | - | - | - | - | €23.74 | |
| 08IL-A60-DVP656 | - | - | - | - | - | - | - | - | €23.74 | |
| 08IR-A60-DVK10 | - | - | - | - | - | - | - | - | €23.74 | |
| 08IR-A60-DVP656 | - | - | - | - | - | - | - | - | €23.74 |
