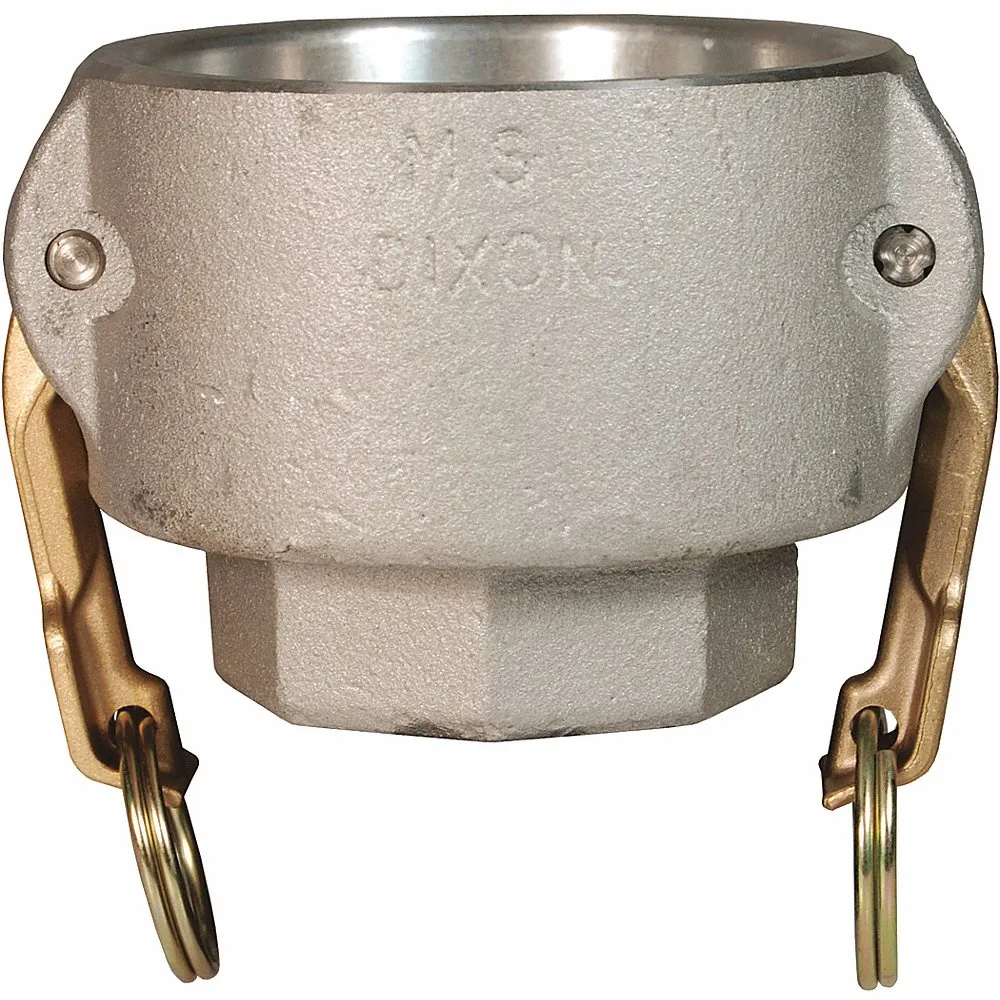

DIXON 1510-D-AL Coupling Adapter, 1-1/2 Inch Size, Female Coupler x 1 Inch, Female NPT
Get it by Tuesday, Jun 17
€86.42 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Coupler |
| Break Quantity | 0 |
| Connection Size | 1" x 1 1/2" |
| Connection Type | Female Fitting x FNPT |
| Diameter | 2 19/32" |
| End Configuration Size | 1 1/2" x 1" |
| End Configuration Type | Female Cam And Groove x FNPT |
| Female Thread Size | 1" |
| Female Thread Type | NPT |
| Fitting Shape | Type D |
| Gender | Female x Female |
| Grade | Grade 356T6 |
| Length | 2 27/32" |
| Material | Aluminum |
| Pressure Rating | 250 psi |
| Seal | Nitrile Rubber |
| Shape | Straight |
| Thread Size | #1-11 1/2 |
| Type | Reducer Coupling |
| Weight | 0.8845 lbs. |
| Body Material | Aluminum |
| Coupling Component | Socket |
| Coupling Size | 1 1/2" |
| Coupling Type | Type D |
| Fitting Type | FNPT |
| Gasket Material | Nitrile |
| Hose Fitting Gender | Female |
| Hose Fitting Size | 1" |
| Includes Locking Arm | No |
| Max. Working Pressure @ 70 F | 250 psi |
| Overall Length | 2 29/32" |
| Socket Inside Diameter | 1 1/2" |
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
| Product | Model | Body Material | Connection Type | Coupler Size | Coupling Type | Hose Size | Max. Pressure | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
3020-D-AL | Aluminum | Female Coupler x FNPT | 3" | D | - | 125 psi | 2" | €148.66 | |
 |
3020-C-AL | Aluminum | Female Coupler x Hose Shank | 3" | C | 2" | 125 psi | - | €152.83 | |
 |
2015-B-AL | Aluminum | Female Coupler x MNPT | 2" | B | - | 250 psi | 1.5" | €102.58 | |
 |
3020-B-AL | Aluminum | Female Coupler x MNPT | 3" | B | - | 125 psi | 2" | €153.48 | |
 |
3040-B-AL | Aluminum | Female Coupler x MNPT | 3" | B | - | 100 psi | 4" | €205.77 | |
 |
200-DL-SS | Stainless Steel | Female Coupler x 150 lb. Flange | 2" | DL | - | 250 psi | 2" | €584.67 | |
|
300-DL-SS | Stainless Steel | Female Coupler x 150 lb. Flange | 3" | DL | - | 125 psi | 3" | €631.56 |
