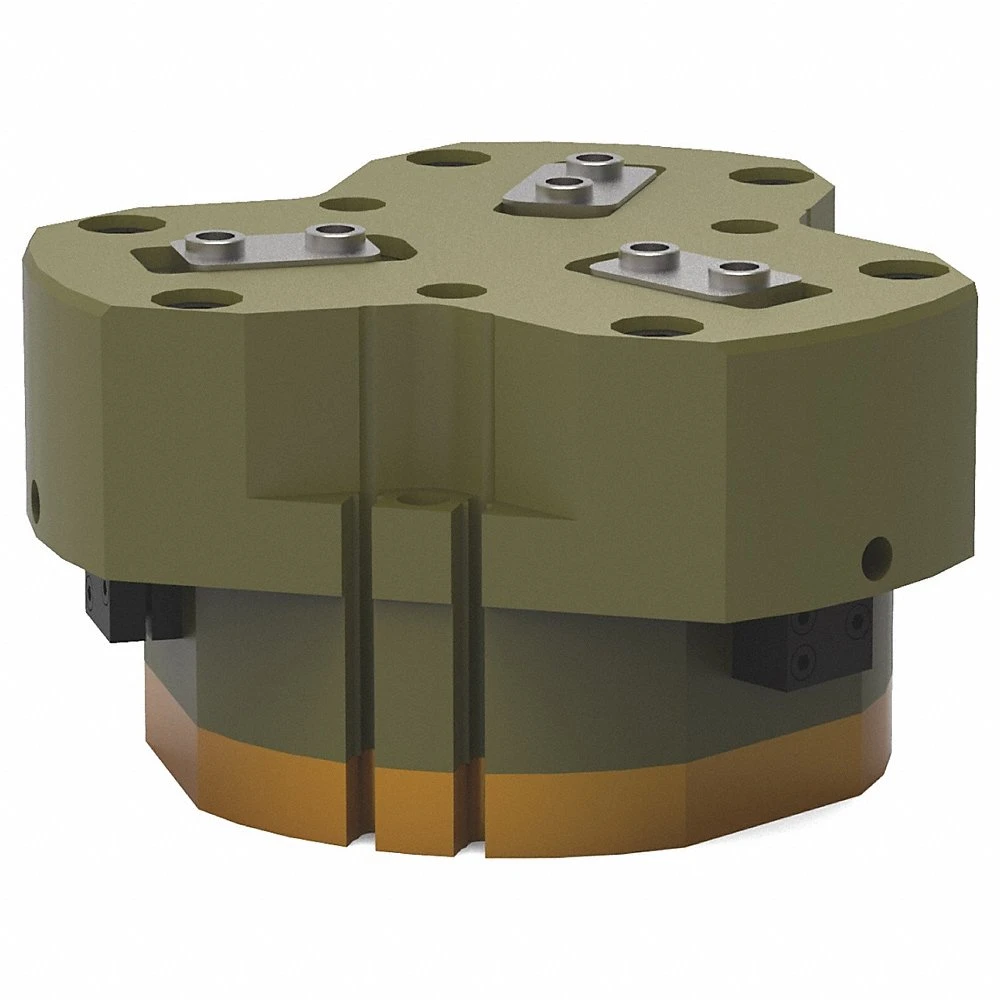

| Item | Gripper |
| Action Type | Double |
| Bore Size | 95 mm |
| Dimension A | 24.5 mm |
| Dimension B | 30.5 mm |
| Dimension C | 6.5 mm |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Max. Pressure | 100 psi |
| Mfr. Series | RTH Series |
| Opening/closing Stroke | 13 mm |
| Operating Temp. Range | -30°F to +180°F |
| Port Size | M5 |
| Seal Material | Buna N |
| Size | 5m |
| Total Grip Force | 6353N |
| Type | Parallel |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Pressure | 29 psi |
| Minimum Operating Temperature | -35°C |
| Open Width | 126 mm |
| Overall Height | 88 mm |
| Overall Length | 88 mm |
| Overall Width | 126 mm |
| Series | RTH Series |
| Stroke Length | 13 mm |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 8.8 |
| Ship length (cm) | 8.8 |
| Ship width (cm) | 12.6 |
| Country of Origin | FR |
