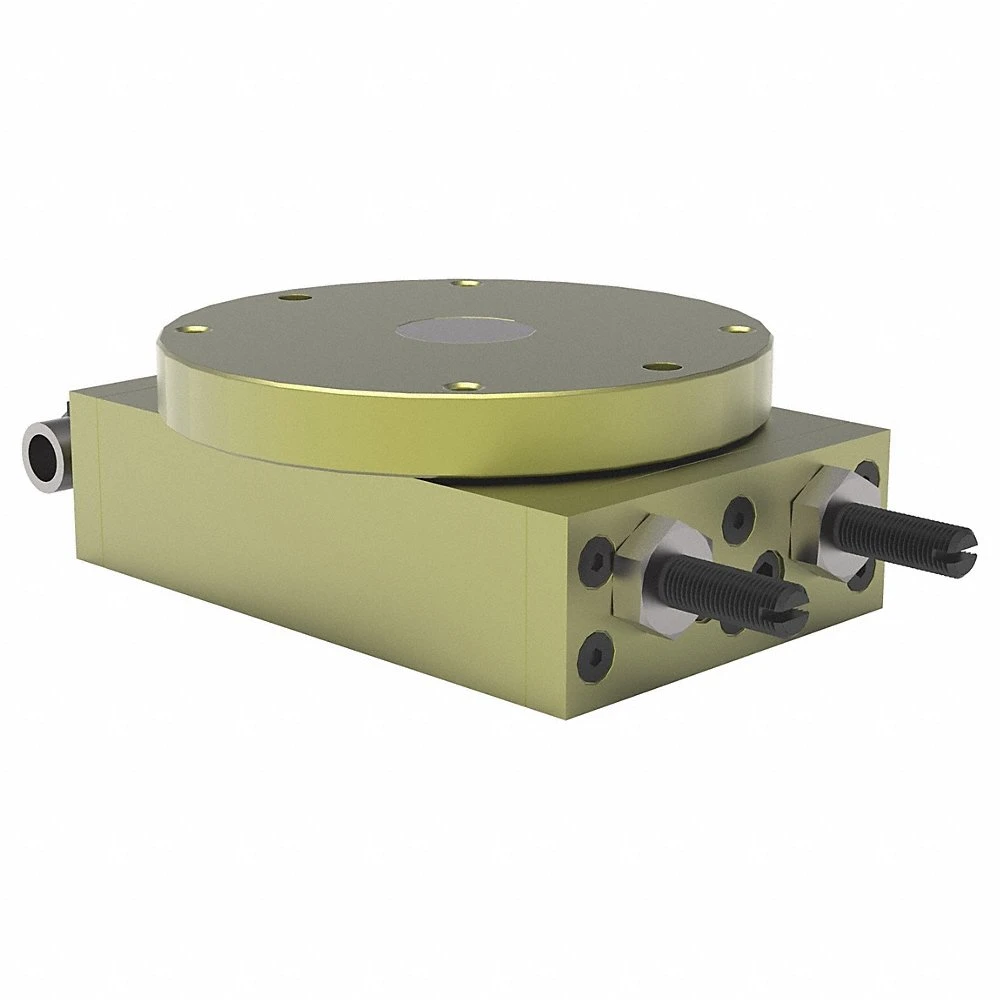

DESTACO RR-36-90 Rotary Actuator, 90 Deg Rotation Angle, Rr-36 Model Size, 7.5 In-Lb Torque
Get it by Monday, Jun 16
€1,295.21 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Rotary Actuator |
| Bore Dia. | 1" |
| Height | 3" |
| Length | 4.624" |
| Max. Pressure | 100 psi |
| Operating Temp. Range | -32°F to +150°F |
| Port Type | NPT |
| Rotation Angle | 90° |
| Torque | 7.5 lbs.-in. |
| Width | 1 18/25" |
| Actuator Style | Double Rack |
| Air Inlet Center To Center Distance | 2.5" |
| Bore Diameter | 1" |
| Cushion Type | None |
| For Fluid Type | Air |
| Maximum Operating Pressure | 0.69 MPa |
| Maximum Operating Temperature | 180°F |
| Minimum Operating Pressure | 40 psi |
| Minimum Operating Temperature | -30°F |
| Output Torque | 65 lbs.-in. |
| Overall Height | 1 3/4" |
| Overall Length | 4 5/8" |
| Overall Width | 3" |
| Shaft Diameter | 4" |
| Shaft Length | 1/2" |
| System Of Measurement | Imperial |
| Weight | 2.9 lbs. |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 11.75 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
RR-18-180 | €863.83 | |
|
RR-18M-180 | €863.83 | |
 |
RR-28-180 | €981.30 | |
|
RR-36M-180 | €1,295.21 | |
 |
RR-46-180 | €6,000.38 | |
|
RR-18-90 | €3,113.23 | |
|
RR-18M-90 | €863.83 |
