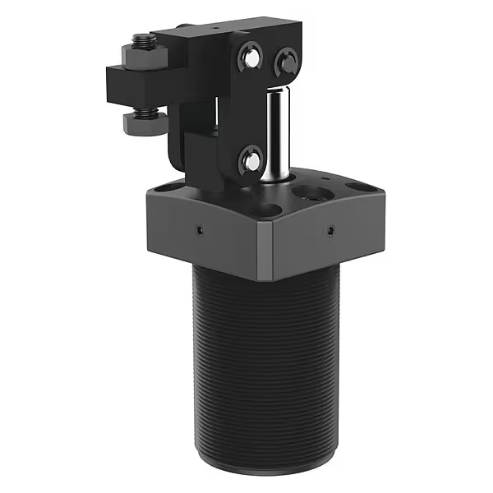

DESTACO 8725 Pneumatic Lever Clamp, 25 Mm Bore
Get it by Monday, Jun 16
€283.09 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Pneumatic Power Clamp |
| Air Connection Center-to-center Distance | 0.91" |
| Air Connection Size | M5 |
| Air Connection Type | G |
| Arm Height | 1.97" |
| Arm Length | 0.63" |
| Arm Material | Aluminum |
| Arm Swing Angle | 80° |
| Body Material | Aluminum |
| Body Mounting Type | Mounting Holes |
| Body Thread Length | 2.42" |
| Body Thread Size | M40 x 1.5 |
| Cylinder Bore Size | 0.98" |
| Includes | Clamping Arm and Spindle |
| Max Air Pressure | 100 psi |
| Max Clamping Force | 43 lbf. |
| Max Vertical Clamp Stroke | 0.1" |
| Mounting Hole Size | M6 |
| Operating Temperature - Maximum | 175°F |
| Operating Temperature - Minimum | 14°F |
| Overall Height | 5.67" |
| Overall Length | 1.97" |
| Overall Width | 1.97" |
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 5 |
| Ship length (cm) | 5 |
| Ship width (cm) | 14.4 |
| Country of Origin | TW |
