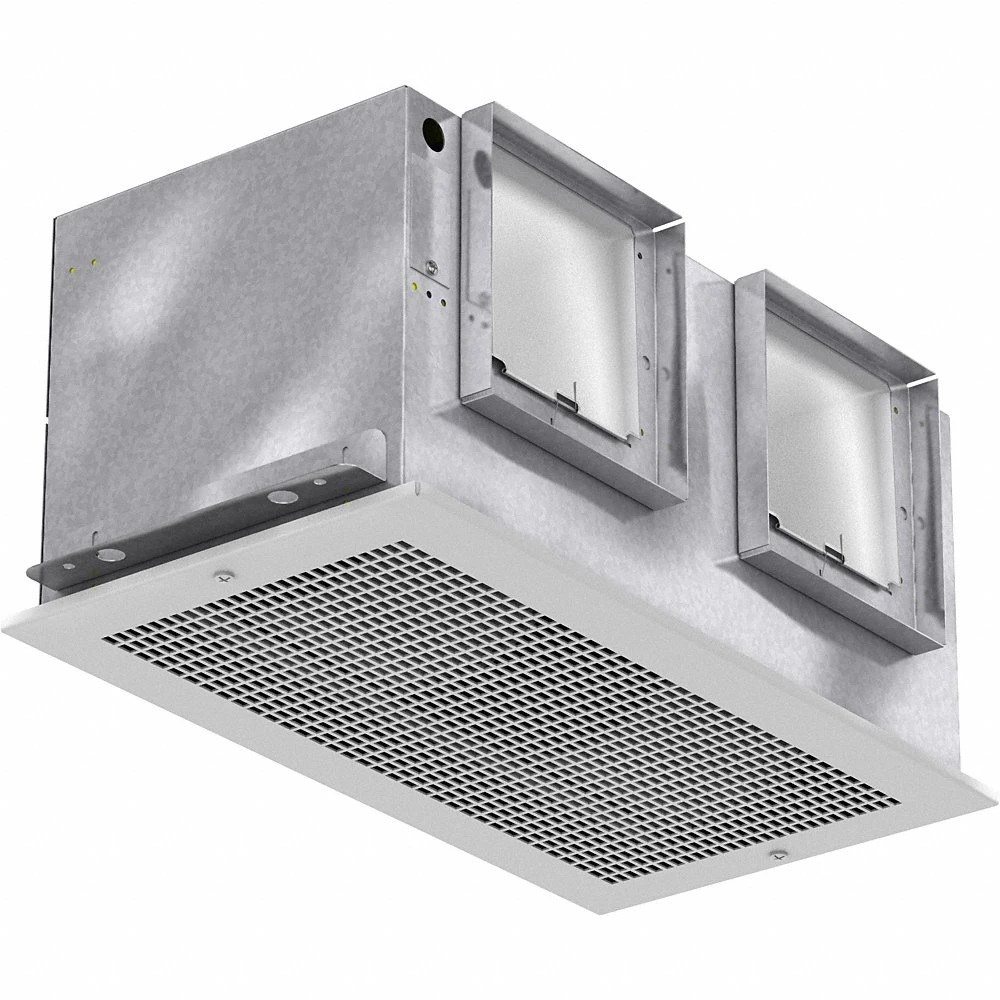

DAYTON 60RG45 Bath Exhaust Fan, 1 Speeds, 5 sones, High Profile, 115V AC
Get it by Monday, Jun 16
€785.30 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Exhaust Fan |
| Discharge Direction | Horizontal And Vertical |
| Duct Shape | Rectangular |
| Exhaust Airflow @ 0.000 In Sp | 955 CFM |
| Exhaust Airflow @ 0.100 In Sp | 395 CFM |
| Exhaust Airflow @ 0.250 In Sp | 841 CFM |
| For Cut-out Length | 24" |
| For Cut-out Width | 14 3/4" |
| Grille Color | White |
| Grille Length | 25" |
| Grille Material | Metal |
| Grille Width | 16 1/2" |
| Housing Material | Steel |
| Includes | Acoustic Insulation, Aluminum Backdraft Damper, Grille, Mounting Brackets |
| Maximum Airflow | 955 CFM |
| Maximum Noise Level | 5 sones |
| Motor Speed | 1050 RPM |
| Mounting Orientation | Horizontal |
| Nameplate Voltage | 115V AC |
| Noise Level @ 0.000 In Sp @ 5 Ft | 4 sones |
| Noise Level @ 0.100 In Sp @ 5 Ft | 5.5 sones |
| Number Of Speeds | 1 |
| Overall Depth | 23 3/4" |
| Overall Height | 14 1/2" |
| Overall Width | 14 3/8" |
| Phase | 1 |
| Profile Height Family | High |
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 36.83 |
| Ship length (cm) | 60.33 |
| Ship width (cm) | 36.51 |
| Country of Origin | US |
| Product | Model | Aluminum Wall Shutter No. | Bearing Type | Cfm @ 0.000-in. Sp | Cfm @ 0.125-in. Sp | Cfm @ 0.250-in. Sp | Dimension A | Dimension B | Dimension C | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10D952 | - | Ball | 454 | 319 | 170 | 12" | 4" | 2-3/8" | €201.80 | |
|
10D953 | 4C555 | Ball | 730 | 624 | 381 | 14" | 4" | 3" | €199.97 | |
 |
10D955 | - | Sleeve | 1066 | 878 | 601 | 18" | 4" | 3-1/4" | €230.20 | |
 |
1WDB9 | 3C308 | Sealed Pillow Block | - | - | - | - | - | - | €725.30 | |
 |
60KT20 | - | Sealed Pillow Block | 2889 | 2826 | 2757 | 26" | 28 7/8" | 26 3/8" | €1,749.25 | |
 |
60RG46 | - | - | - | - | - | - | - | - | €770.65 |
